SCRAPER PLATE 45 (0.30)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for roller rail systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R182041040 be shipped?
R182041040 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R182041040 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R182041040 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R182041040, subject to availability and destination.

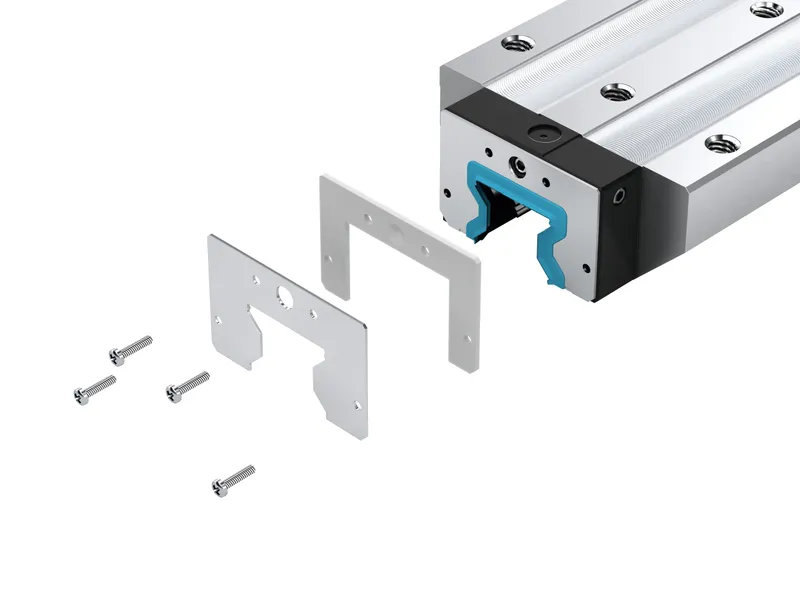

Cover plate wiper for roller rail systems gen.1<br>Size = 45 For mounting on roller runner blocks for all roller guide rails Cover plate wiper; material: Rust-free spring steel in as per DIN EN 10088; version: blank Spacer plate; material: Aluminum
Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 45 |
| Width of runner block [mm] | 77.0 |
| Height runner block with guide rail [mm] | 49.8 |
| Mass m (g) [g] | 71.0 |
| Weight [kg] | 0.08 |
| Size footnote | For cover strip 0.3 mm |

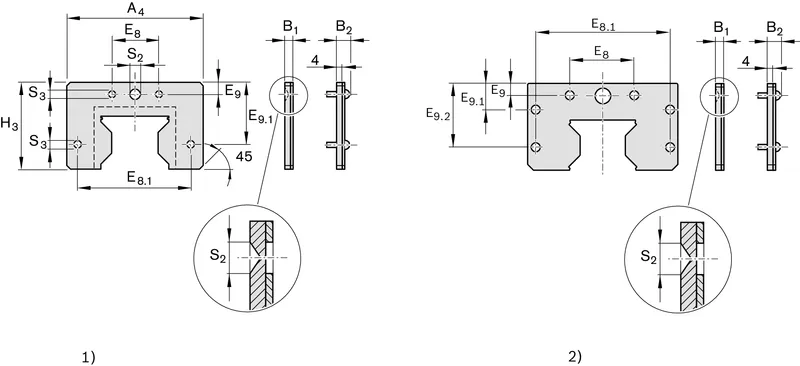

| Dimension A (profiled rail systems) [mm] | 77 |
| Dimension A1 (profiled rail systems) [mm] | 2 |
| Dimension D [mm] | 6 |
| Dimension D1 [mm] | 9 |
| Dimension diameter S2 (profiled rail systems) [mm] | 7 |
| Dimension diameter S3 (profiled rail systems) [mm] | 5 |
| Dimension diameter S4 (profiled rail systems) [mm] | 4 |
| Dimension E8 (profiled rail systems) [mm] | 62.9 |
| Dimension E8.1 (profiled rail systems) [mm] | 69.6 |
| Dimension E9 (profiled rail systems) [mm] | 16 |
| Dimension E9.1 (profiled rail systems) [mm] | 35.8 |
| Dimension H [mm] | 49.8 |
