SCRAPER PLATE 35 (0.30)

Name: SCRAPER PLATE 35 (0.30)
Brand: Bosch Rexroth
SKU: R182031040

MPN: R182031040 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Accessories for roller rail systems
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R182031040 be shipped?

R182031040 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R182031040 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R182031040 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R182031040, subject to availability and destination.

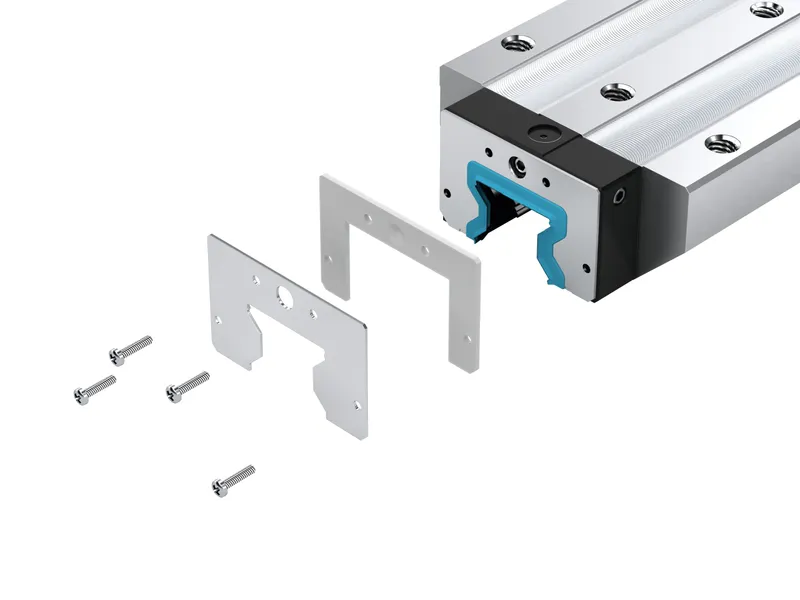

Cover plate wiper for roller rail systems gen.1<br>Size = 35 For mounting on roller runner blocks for all roller guide rails Cover plate wiper; material: Rust-free spring steel in as per DIN EN 10088; version: blank Spacer plate; material: Aluminum

Specifications

Accessories for	Runner block
Nominal size [mm]	35
Width of runner block [mm]	63.0
Height runner block with guide rail [mm]	39.8
Mass m (g) [g]	30.0
Weight [kg]	0.04
Size footnote	For cover strip 0.3 mm

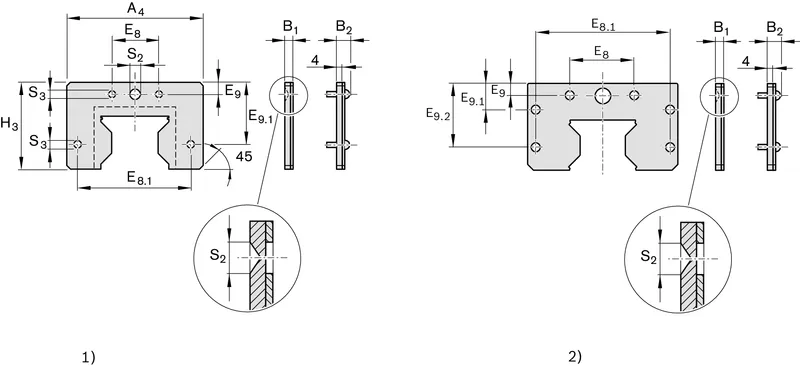

Dimension A (profiled rail systems) [mm]	63
Dimension A1 (profiled rail systems) [mm]	2
Dimension D [mm]	5
Dimension D1 [mm]	7.5
Dimension diameter S2 (profiled rail systems) [mm]	7
Dimension diameter S3 (profiled rail systems) [mm]	4
Dimension diameter S4 (profiled rail systems) [mm]	3
Dimension E8 (profiled rail systems) [mm]	50.3
Dimension E8.1 (profiled rail systems) [mm]	56.6
Dimension E9 (profiled rail systems) [mm]	12.4
Dimension E9.1 (profiled rail systems) [mm]	28.4
Dimension H [mm]	39.8
