WIPER 55 (FKM) BG
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for roller rail systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R181052030 be shipped?
R181052030 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R181052030 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R181052030 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R181052030, subject to availability and destination.

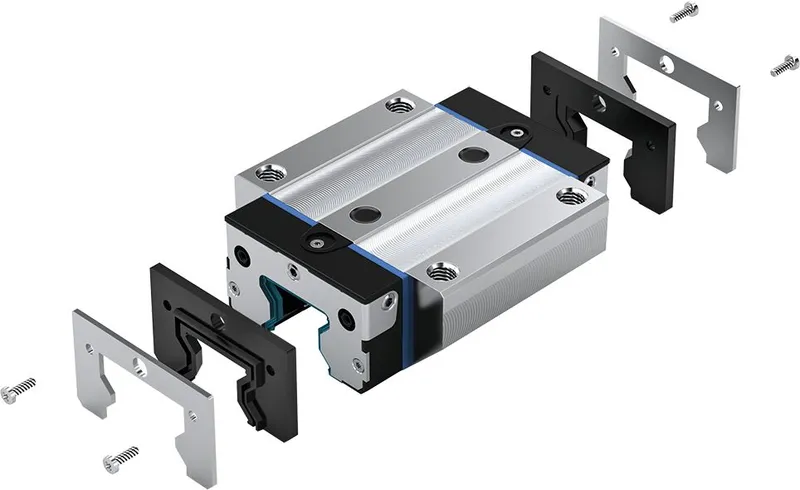

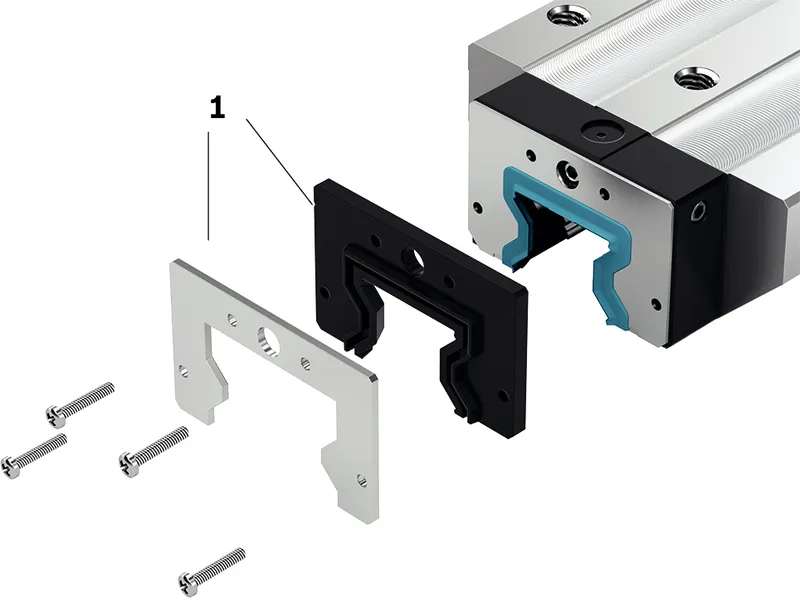

FKM seal for roller rail systems<br>Size 55 For mounting on roller runner blocks for all roller guide rails Two-piece FKM seal Material: Stainless steel plus FKM seal Simple assembly/removal on fixed roller guide rail Observe the mounting instructions
Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 55 |
| Tightening torque [Nm] | 0.4 |
| Weight [kg] | 0.09 |

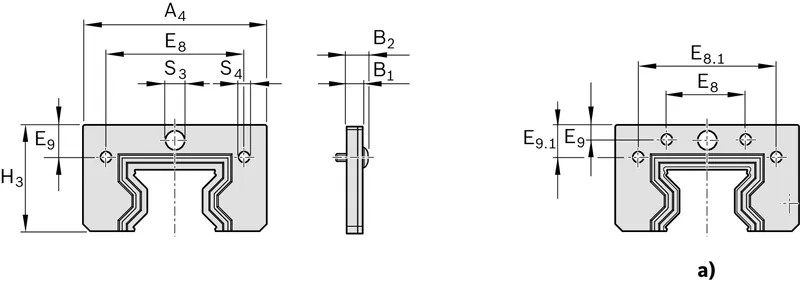

| Dimension A4 (profiled rail system) [mm] | 92.8 |
| Dimension B1 [mm] | 6 |
| Dimension B2 (profiled rail systems) [mm] | 9.8 |
| Dimension diameter S3 (profiled rail systems) [mm] | 7 |
| Dimension diameter S4 (profiled rail systems) [mm] | 6 |
| Dimension E8 (profiled rail systems) [mm] | 74.2 |
| Dimension E9 (profiled rail systems) [mm] | 17.8 |
| Dimension H3 [mm] | 56.7 |
| Max. tightening torque [Nm] | 0.4 |
