WIPER 45 (FKM) &
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for roller rail systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R181040075 be shipped?
R181040075 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R181040075 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R181040075 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R181040075, subject to availability and destination.

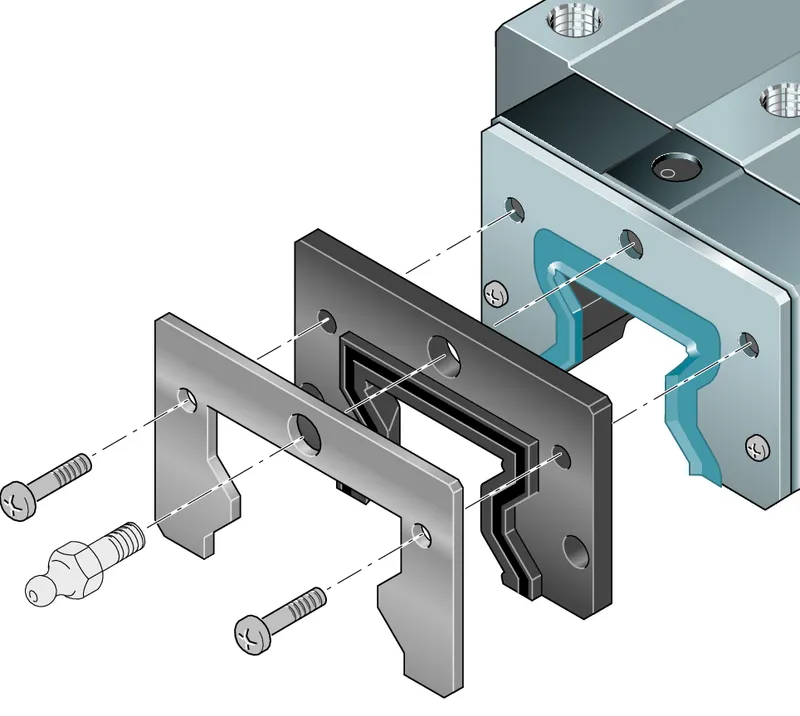

Viton seal for roller rail systems<br>Size 45 For mounting on roller runner blocks for all roller guide rails Material: Stainless steel plus seal made of Viton Easy mounting and removal even when guide rail is screwed down (note the mounting instructions). Two-piece
Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 45 |
| Width of runner block [mm] | 78.0 |
| Height runner block with guide rail [mm] | 50.0 |
| Mass m (g) [g] | 60.0 |
| Weight [kg] | 0.06 |

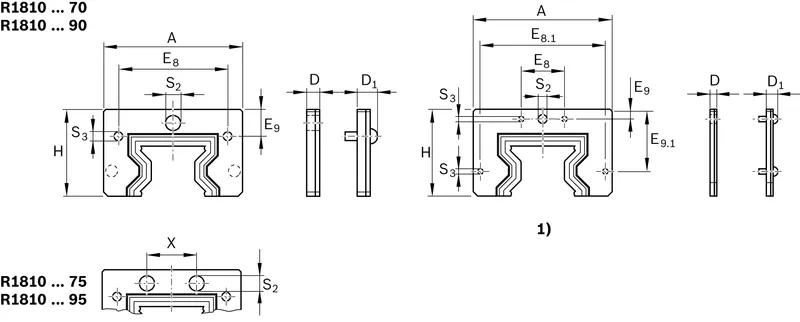

| Dimension A (profiled rail systems) [mm] | 78 |
| Dimension D [mm] | 6 |
| Dimension D1 [mm] | 9 |
| Dimension diameter S2 (profiled rail systems) [mm] | 7 |
| Dimension diameter S3 (profiled rail systems) [mm] | 5 |
| Dimension E8 (profiled rail systems) [mm] | 62.9 |
| Dimension E9 (profiled rail systems) [mm] | 16 |
| Dimension H [mm] | 50.0 |
| Dimension X (profiled rail systems) [mm] | 40 |
