BRAKING ELEMENT UBPS 3505 BS1A &
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for roller rail systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R181034051 be shipped?
R181034051 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R181034051 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R181034051 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R181034051, subject to availability and destination.

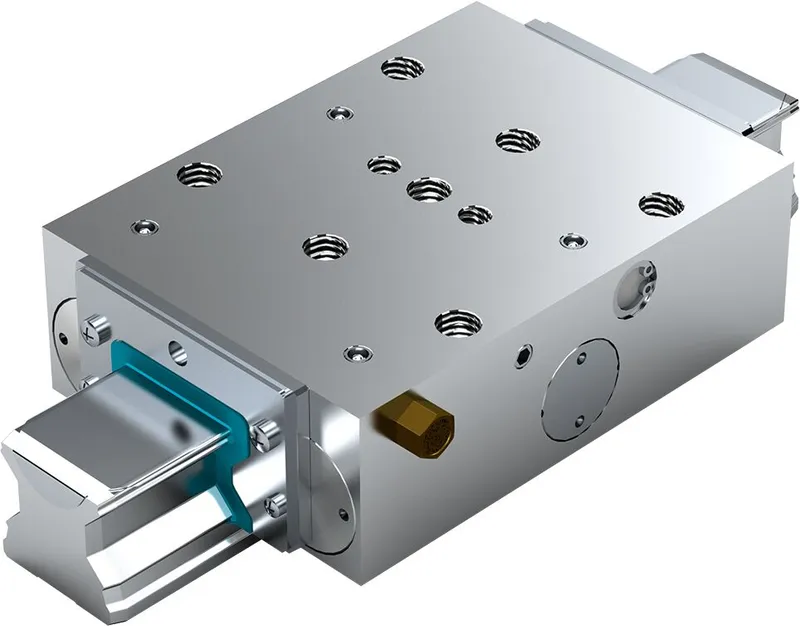

Pneumatic braking unit UBPS<sup>*)</sup>, FLS for roller rail systems<br>Size = 35<br>Can be used on all SNS roller guide rails<br><sup>*)</sup>Zimmer GmbH Clamps and brakes with spring energy accumulator Positive-locking integrated contact profiles ensure maximum axial and horizontal rigidity, and thus an excellent braking effect Dynamic and static stabilization in the axial direction Clamps and brakes without pressurization (spring energy) Compact design, compatible with DIN 645 Up to 1 million clamping cycles Up to 2,000 emergency braking operations Integrated all-round sealing High continuous output High positioning accuracy Mechanical gate valve gear mechanism Solid, rigid steel housing, chemically nickel-plated Extremely low air consumption Maintenance-free 5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection Can be used on all SNS roller guide rails Very high axial holding forces of up to 7700 N at 5.5 bar release pressure with high-power spring energy accumulator Increased holding force of up to 9,200 N thanks to additional pressurization on the air-plus port
Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 35 |
| Note: spring energy holding force with standard air port | Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
| Permissible ambient temperature (min. ... max.) | 0 °C ... +70 °C |
| Weight [kg] | 2.46 |
| Footnote for spring energy holding force with air-plus port | Increased holding force by additional air admission at air-plus port with 6.0 bar. Switching via 5/2 or 5/3-way directional control valve. |
| Air consumption (normal liter) standard air port [dm³/stroke] | 0.139 |

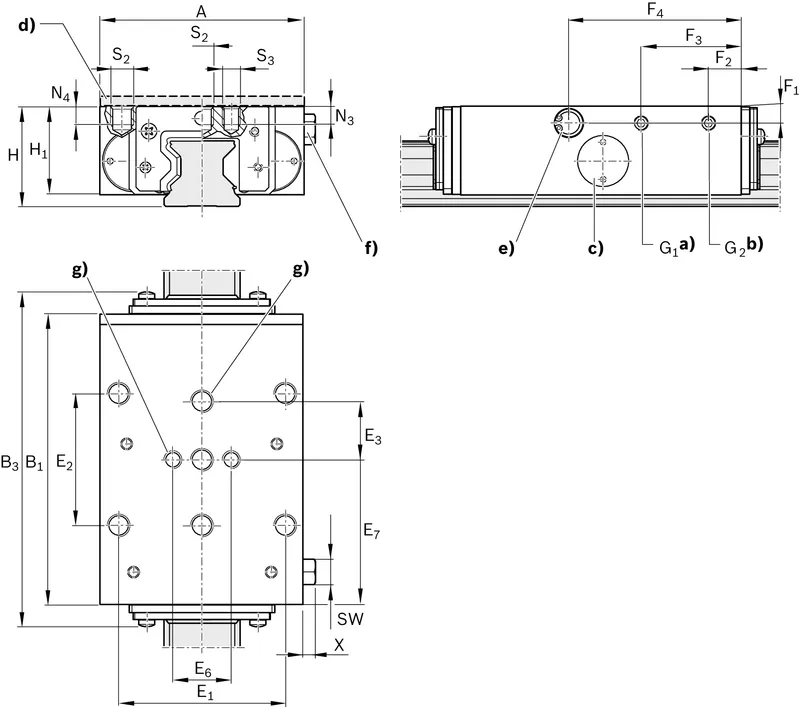

| Dimension A (profiled rail systems) [mm] | 100 |
| Dimension B1 [mm] | 109 |
| Dimension E1 [mm] | 82 |
| Dimension E2 (profiled rail systems) [mm] | 62 |
| Dimension E3 (profiled rail systems) [mm] | 26 |
| Dimension E6 [mm] | 24 |
| Dimension F1 [mm] | 8 |
| Dimension F2 [mm] | 11 |
| Dimension H [mm] | 48.0 |
| Dimension H1 (profiled rail systems) [mm] | 42 |
| Dimension N3 (profiled rail systems) [mm] | 10 |
| Dimension N4 (profiled rail systems) [mm] | 10 |
| Dimension S2 thread diameter (profiled rail systems) [mm] | M10 |
| Dimension S3 thread diameter (profiled rail systems) | M8 |
| Dimension X (profiled rail systems) [mm] | 6.5 |
| Footnote Dimension H1 | For roller runner block .H. (...High...) Spacer plate necessary. |
