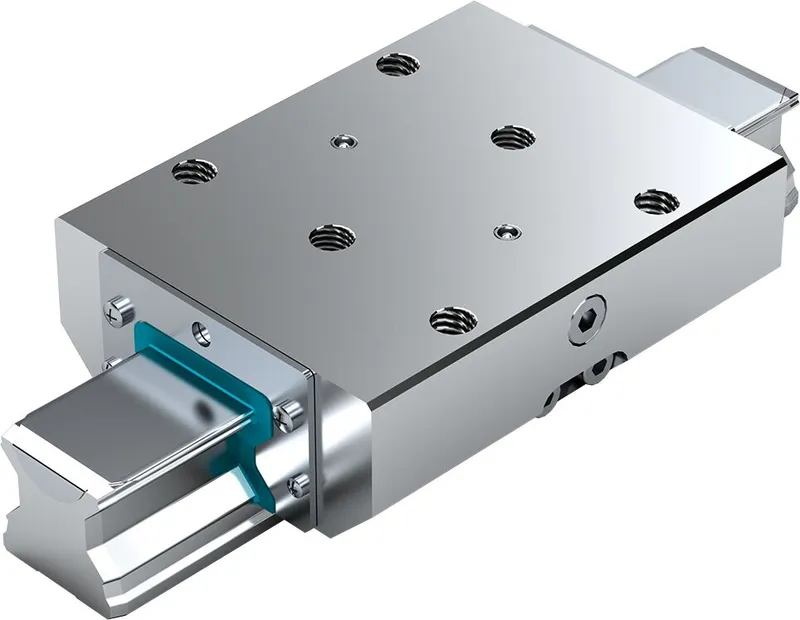

CLAMPING ELEMENT KWH 2505 BS1A

Name: CLAMPING ELEMENT KWH 2505 BS1A
Brand: Bosch Rexroth
SKU: R181024211

MPN: R181024211 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Accessories for roller rail systems
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R181024211 be shipped?

R181024211 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R181024211 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R181024211 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R181024211, subject to availability and destination.

Hydraulic clamping unit KWH*), FLS for roller rail systems Size = 25 Can be used on all SNS roller guide rails *)Zimmer GmbH Very high axial holding forces Dynamic and static stabilization in the axial direction Compact design, compatible with DIN 645 Clamps and brakes with pressure Can be used on all SNS roller guide rails Threaded on both sides for the hydraulic connection Solid, rigid steel housing, chemically nickel-plated High positioning accuracy Integrated all-round sealing Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage Integrated positive-locking, large-surface contact profiles for maximum axial rigidity 10 million clamping cycles (B10d value)

Specifications

Accessories for	Runner block
Nominal size [mm]	25
Holding force [N]	2200
Permissible ambient temperature (min. ... max.)	0 °C ... +70 °C
Weight [kg]	1.17
Footnote 1 holding force	The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see "Technical data and calculations".
Note: holding force 2	At 100 bar
Displacement footnote	Per clamping
Displacement [cm³]	0.6

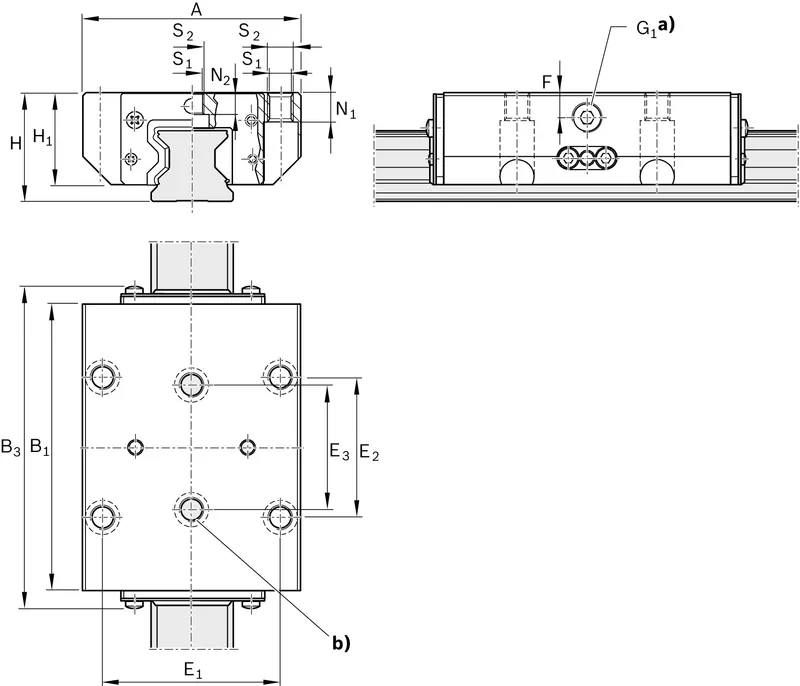

Dimension A (profiled rail systems) [mm]	70
Dimension B1 [mm]	92
Dimension B3 [mm]	105
Dimension E1 [mm]	57
Dimension E2 (profiled rail systems) [mm]	45
Dimension E3 (profiled rail systems) [mm]	40
Dimension F [mm]	9.5
Dimension H [mm]	36.0
Dimension H1 (profiled rail systems) [mm]	30
Dimension N1 (profiled rail systems) [mm]	9
Dimension N2 (profiled rail systems) [mm]	7.3
Dimension S1 (profiled rail systems) [mm]	6.8
Dimension S2 thread diameter (profiled rail systems) [mm]	M8
