CLAMPING ELEMENT MKS 2505 AR &
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for roller rail systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R181024060 be shipped?
R181024060 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R181024060 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R181024060 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R181024060, subject to availability and destination.

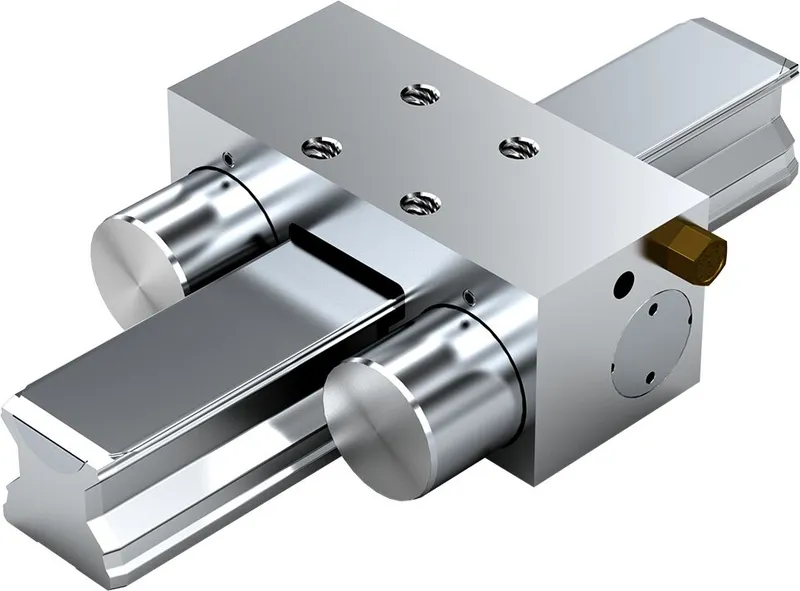

Pneumatic clamping unit MKS<sup>*)</sup> for roller rail systems<br>Size = 25<br>Can be used on all SNS roller guide rails<br><sup>*)</sup>Zimmer GmbH High axial holding forces with short format Dynamic and static stabilization in the axial direction Easy mounting Clamps without pressurization (spring energy). In the event of a pressure drop, it clamps via the dual-action gate valve gear mechanism with two spring assemblies. Chemically nickel-plated steel housing High axial and horizontal rigidity Precise positioning Higher holding force due to the air-plus port Can be used on all SNS roller guide rails 5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection
Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 25 |
| Note: spring energy holding force with standard air port | Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
| Permissible ambient temperature (min. ... max.) | 0 °C ... +70 °C |
| Weight [kg] | 0.49 |
| Footnote for spring energy holding force with air-plus port | Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
| Air consumption (normal liter) standard air port [dm³/stroke] | 0.021 |

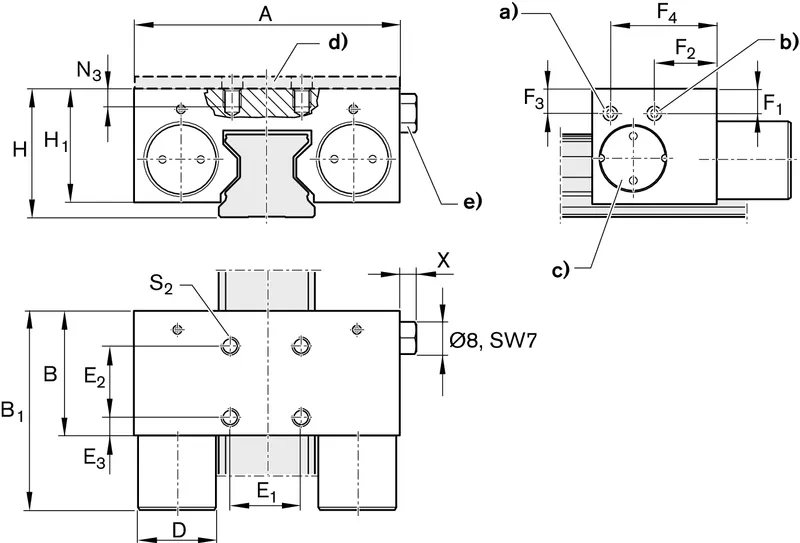

| Dimension A (profiled rail systems) [mm] | 75 |
| Dimension A1 (profiled rail systems) [mm] | 49 |
| Dimension B (profiled rail systems) [mm] | 35 |
| Dimension B1 [mm] | 57.3 |
| Dimension D [mm] | 22 |
| Dimension E1 [mm] | 20 |
| Dimension E2 (profiled rail systems) [mm] | 20 |
| Dimension E3 (profiled rail systems) [mm] | 5 |
| Dimension F1 [mm] | 6.5 |
| Dimension F2 [mm] | 30 |
| Dimension H [mm] | 36.0 |
| Dimension H1 (profiled rail systems) [mm] | 32.5 |
| Dimension H2 (profiled rail systems) [mm] | 20 |
| Dimension N3 (profiled rail systems) [mm] | 8 |
| Dimension S2 thread diameter (profiled rail systems) [mm] | M6 |
| Dimension X (profiled rail systems) [mm] | 5.5 |
| Footnote Dimension H1 | For roller runner block .H. (...High...) Spacer plate necessary. |
| Height of guide rail H2 [mm] | 20.0 |
