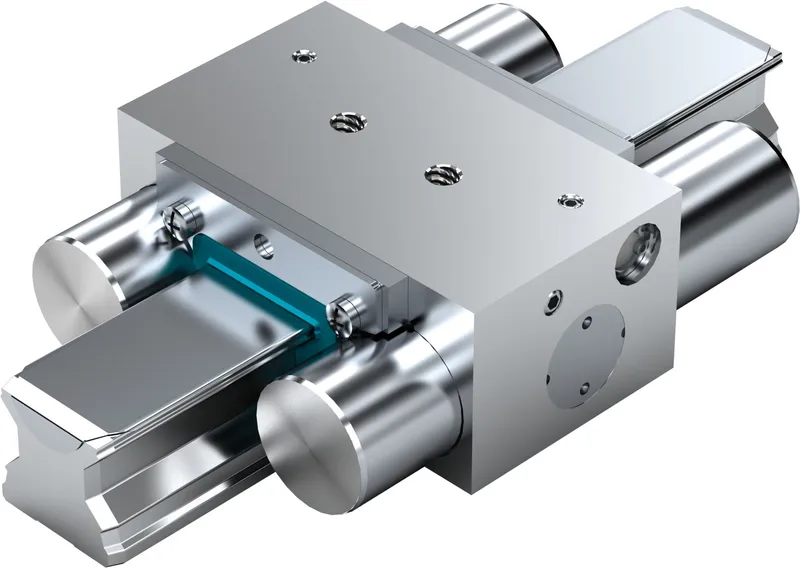

BRAKING ELEMENT MBPS 2505 BS1A

Pneumatic braking unit MBPS^*), FLS for roller rail systems<br>Size = 25<br>Can be used on all SNS roller guide rails<br>^*)Zimmer GmbH Clamps and brakes with spring energy accumulator Positive-locking integrated contact profiles ensure maximum axial and horizontal rigidity, and thus an excellent braking effect Dynamic and static stabilization in the axial direction Clamps and brakes without pressurization (spring energy) Clamping and Braking Units in short format Up to 1 million clamping cycles Up to 2,000 emergency braking operations Integrated all-round sealing High continuous output High positioning accuracy Mechanical gate valve gear mechanism Solid, rigid steel housing, chemically nickel-plated Low air consumption Maintenance-free 5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection Can be used on all SNS roller guide rails Add-ons with three pistons connected in series combined with strong springs result in holding forces up to 4,700 N at just 4.5 bar release pressure
