ROLLER GUIDE RAIL CARBON STEEL RSA-055-SNS-P-MA-BS

Name: ROLLER GUIDE RAIL CARBON STEEL RSA-055-SNS-P-MA-BS
Brand: Bosch Rexroth
SKU: R180553262

MPN: R180553262 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Roller guide rails
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R180553262 be shipped?

R180553262 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R180553262 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R180553262 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R180553262, subject to availability and destination.

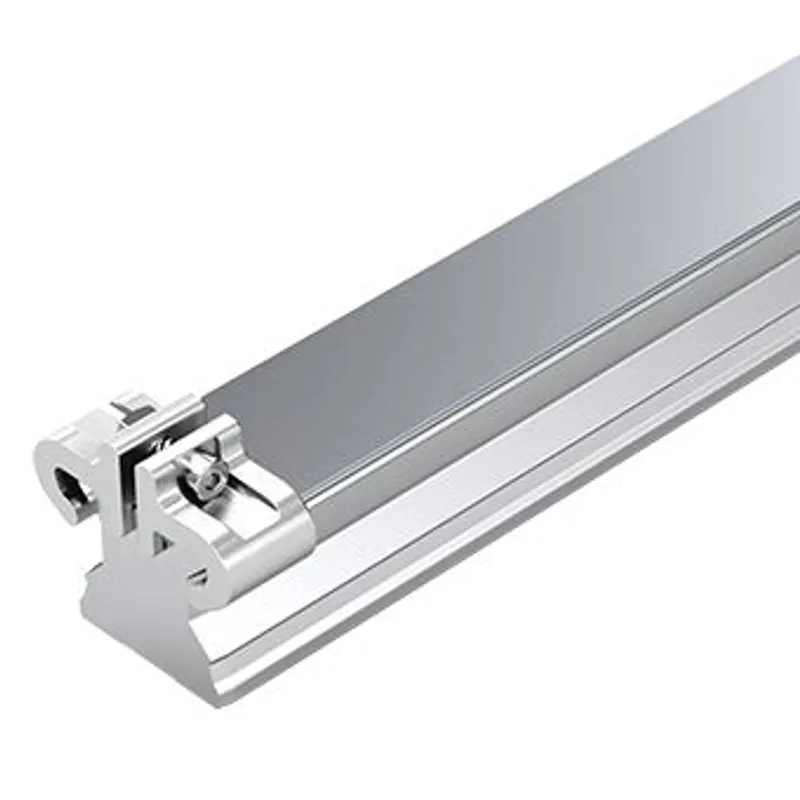

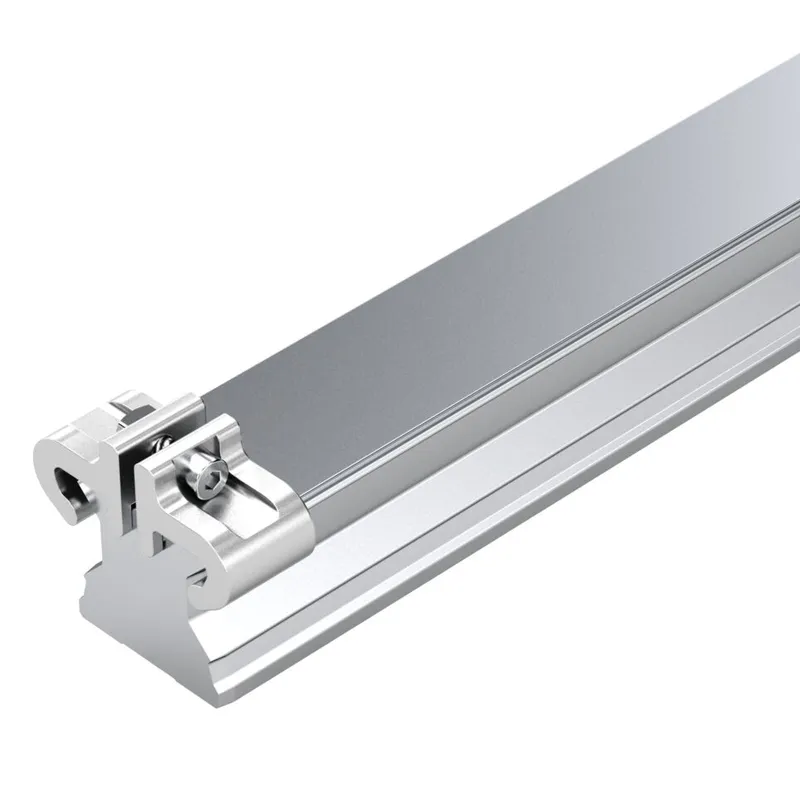

The roller guide rail is highly precise and characterized by the following product features: Size 55 Format SNS: Width = slimline, length = normal, height = standard Guide rail made of carbon steel CS Fastener MA: Bolting from above Cover BS: Cover strip and strip clamp Accuracy class precision Number of partial sections: 2 Rail in standard version For mounting from above Cover strip made of corrosion-resistant spring steel as per DIN EN 10088 Aluminum strip clamps (without threaded holes on end faces) One cover for all bore holes saves time and costs Cover strip can be mounted simply and securely Clip on cover strip and lock Hardened raceways smoothened on all sides Maximum rigidity in all load directions Very high torque load capacity

Specifications

Version	Roller rail systems
Nominal size [mm]	55
Format	SNS - Standard guide rail
Material (profiled rail systems)	Carbon steel
Accuracy class	P - Precise
Guide rail mounting	For bolting from above
Guide rail cover	With cover strip and strip clamps
Max. length Lmax [mm]	3956.0
Note: Lmax	Available as one piece up to a length of 5936 mm
Minimum length Lmin [mm]	160.0
Number of holes nB (profiled rail systems)	66
Number of sections	2-piece
Mass m (kg/m) [kg/m]	13.1
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100°C admissible for short time. For operation at lower minus temperatures, please consult us.
Weight [kg]	0

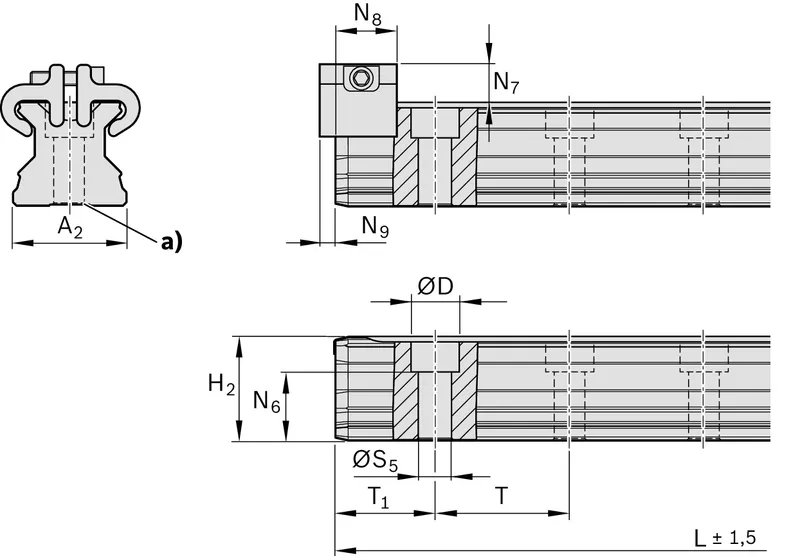

Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Pitch T guide rail [mm]	60
Dimension A2 (profiled rail systems) [mm]	53
Dimension D [mm]	24
Dimension diameter S5 (profiled rail systems)	16
Dimension H2 with cover strip (profiled rail systems) [mm]	47.85
Footnote of H2 with cover strip (profiled rail systems)	With cover strip 0.3 mm
Dimension N6 (profiled rail systems) [mm]	28.7
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension N8 (profiled rail systems) [mm]	17
Dimension N9 (profiled rail systems) [mm]	3.2
Dimension T [mm]	60
Dimension T1 max (profiled rail systems) [mm]	42
Dimension T1 min [mm]	20
Dimension T1 s (profiled rail systems) [mm]	28
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T<sub>1S</sub> with tolerances ± 0.75
Height of guide rail H2 with cover strip [mm]	47.85
