BALL GUIDE RAIL CARBON STEEL KSA-025-BNS-H-MA-SK

Name: BALL GUIDE RAIL CARBON STEEL KSA-025-BNS-H-MA-SK
Brand: Bosch Rexroth
SKU: R167625331

MPN: R167625331 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	High precision ball guide rail BSHP
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R167625331 be shipped?

R167625331 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R167625331 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R167625331 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R167625331, subject to availability and destination.

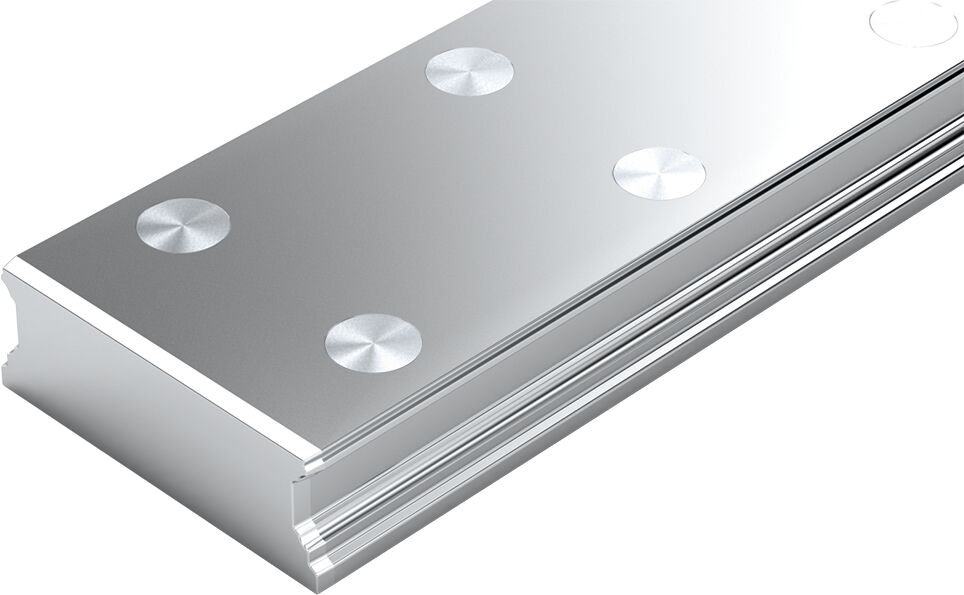

The ball guide rail is highly precise and characterized by the following product features: Size 25 Format BNS: Width = wide, length = normal, height = standard Guide rail made of carbon steel CS Fastener MA: Bolting from above Cover SK: Steel caps (must be ordered separately) Accuracy class high Number of partial sections: one-piece Rail in standard version Area of application: For very harsh environments More resistant to mechanical influences (e.g. shocks) Double-rowed for mounting from above Steel caps (not included in scope of delivery, order separately). Maximum rigidity in all load directions Very high torque load capacity No extra space needed at rail ends Observe the instruction for mounting! Please request the “Mounting instructions for ball rail systems.”

Specifications

Version	Ball rail system
Nominal size [mm]	25/70
Format	BNS - wide guide rail
Material (profiled rail systems)	Carbon steel
Accuracy class	H - Highly accurate
Guide rail mounting	For bolting from above
Guide rail cover	With steel caps
Max. length Lmax [mm]	3836.0
Minimum length Lmin [mm]	106.0
Number of holes nB (profiled rail systems)	48
Number of sections	1-piece
Mass m (kg/m) [kg/m]	11.6
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100 °C admissible for short time. For operation at negative temperatures, please consult us.
Weight [kg]	0
Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Product information	Please configure the product to add it to the shopping cart.
Pitch T guide rail [mm]	80
Dimension A2 (profiled rail systems) [mm]	69
Dimension D [mm]	11
Dimension D1 [mm]	12.55
Dimension D2 [mm]	13
Dimension F7 (profiled rail systems) [mm]	0.9
Dimension F8 (profiled rail systems) [mm]	3.7
Dimension H2 without cover strip (profiled rail systems) [mm]	23.55
Dimension N6 (profiled rail systems) [mm]	14.5
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension S5 (profiled rail system) [mm]	7
Dimension T [mm]	80
Dimension T1 max (profiled rail systems) [mm]	70
Dimension T1 min [mm]	10
Dimension T1 s (profiled rail systems) [mm]	38
Dimension T3 (profiled rail systems) [mm]	40
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended.
