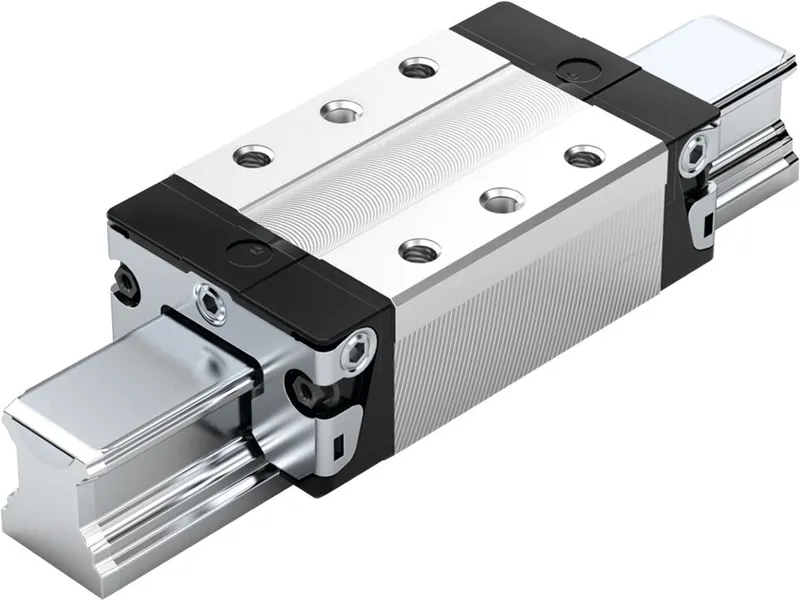

BALL RUNNER BLOCK ALUMINUM KWD-015-SNS-C1-H-1

The aluminum ball runner block is highly precise and has a reduced weight compared to the steel version. Additionally, it is characterized by the following product features:<br>Size 15<br>Format SNS: Width = slimline, length = normal, height = standard<br>Runner block body made of aluminum<br>Preload class C1: Low preload<br>Accuracy class H: High<br>Without ball chain<br>With initial lubrication and preservation<br>Roller bearing grease Dynalub 510<br>Without attachment element, left (front reference edge)<br>Without attachment element, right (front reference edge)<br>Straight lube connection loosely attached.<br>Runner block body in standard version<br>Overall length of the runner block = 58.2 mm<br>Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy. Area of application: For lightweight design – for compensating low tolerances with connected structures Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection Extra-compact lightweight design 60% less gravity due to aluminum compared to the ball runner blocks made of steel Maximum precision Patented entry zone increases the travel accuracy up to a factor of six Can be used on all SNS ball guide rails Lube connection with metal thread on all sides Ball runner block pre-lubricated at the factory Attachments on the ball runner block can be mounted from above Limitless interchangeability as all ball guide rail systems can be combined at will with all ball runner block versions within each accuracy class. Excellent dynamic characteristics Minimum quantity lubrication with integrated reservoir for oil lubrication Predrilled holes on the Ball Runner Block for pinned fitting Enables greater parallelism and height offsets of mounting bases Long-term lubrication is possible over several years Accuracy classes H and N are combinable with all rails in each accuracy class

Specifications
