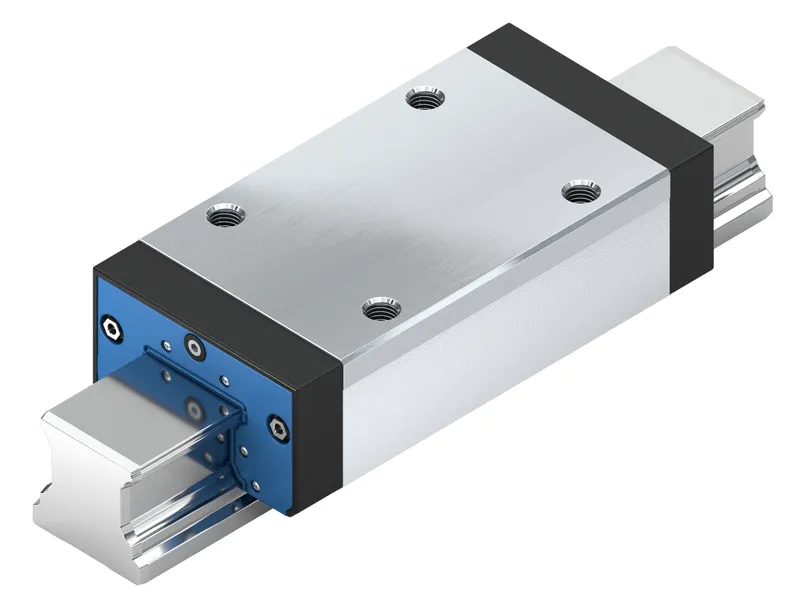

BALL RUNNER BLOCK CARBON STEEL KWC-065-SLS-C1-H-2

The ball runner block is highly precise and characterized by the following product features:<br>Size 65<br>Format SLS: Width = slimline, length = long, height = standard<br>Runner block body made of unalloyed steel CS<br>Preload class C1: Low preload<br>Accuracy class H: High<br>Without ball chain<br>Preserved<br>Without initial lubrication<br>Without attachment element, left (front reference edge)<br>Without attachment element, right (front reference edge)<br>45° angular lube nipples loosely attached.<br>Runner block body in standard version<br>Overall length of the runner block = 243.0 mm<br>Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy. Area of application: For restricted space in the transverse direction Heavy-duty Ball Runner Block for heavy machine construction with extremely high load-bearing capacity High torque load capacity The same high load ratings in all four main directions of loading Low noise level and outstanding travel behavior Different preload classes Lube fittings with metal threads on all sides Can be used on all SNS ball guide rails High rigidity in all load directions – permits applications with just one runner block per rail End-face fastening thread for all attachments Long-term lubrication is possible over several years

Specifications
