BALL RUNNER BLOCK CARBON STEEL KWD-035-SLS-C2-N-1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | High-precision ball runner block BSHP |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R162332420 be shipped?
R162332420 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R162332420 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R162332420 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R162332420, subject to availability and destination.

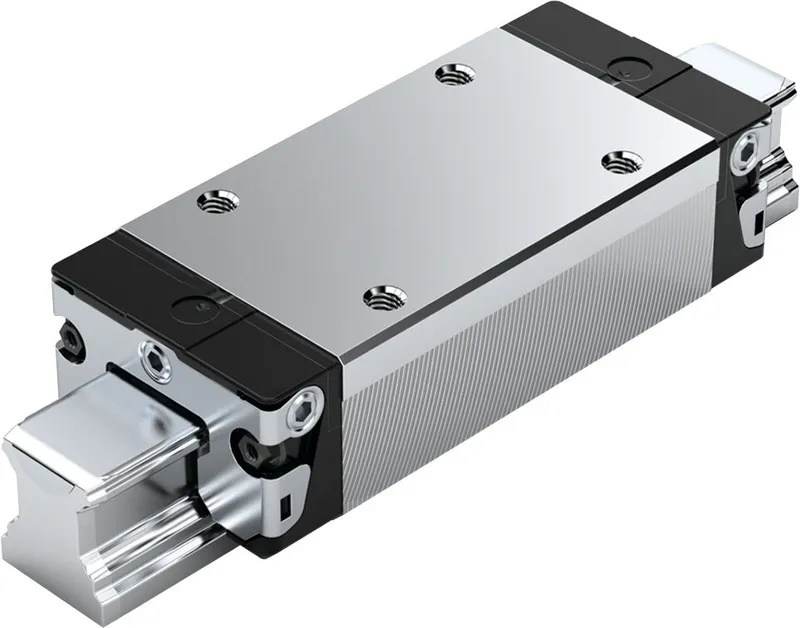

The ball runner block is highly precise and characterized by the following product features:<br>Size 35<br>Format SLS: Width = slimline, length = long, height = standard<br>Runner block body made of unalloyed steel CS<br>Preload class C2: Medium preload<br>Accuracy class N: Normal<br>Without ball chain<br>With initial lubrication and preservation<br>Roller bearing grease Dynalub 510<br>Without attachment element, left (front reference edge)<br>Without attachment element, right (front reference edge)<br>Straight lube connection loosely attached.<br>Runner block body in standard version<br>Overall length of the runner block = 139.0 mm<br>Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Specifications
Specifications
| Nominal size [mm] | 35 |
| Format | SLS - slimline, long, standard height |
| Model | High-precision ball runner block |
| Material (profiled rail systems) | Carbon steel |
| Preload class | C2 - Medium preload |
| Accuracy class | N - Normal |
| Seal | SS - Standard seal |
| Ball chain | Without ball chain (standard) |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Width of runner block [mm] | 70.0 |
| Length of runner block [mm] | 139.0 |
| Height of runner block [mm] | 40.4 |
| Height runner block with guide rail [mm] | 48.0 |
| Lubrication | Pre-lubricated, preserved |
| Maximum acceleration rate amax [m/s²] | 500.0 |
| Note: Max. acceleration amax | If F<sub>comb</sub>◡> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup> |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Friction coefficient μ | 0.002 ... 0.003 |
| Note: friction coefficient μ | Without friction of seal |
| Weight [kg] | 1.78 |
| Dynamic load capacity C50 [N] | 84000.0 |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic load capacity C100 [N] | 66700.0 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static load capacity C0 [N] | 116000.0 |
| Dynamic torsional moment load capacity Mt50 [Nm] | 1810.0 |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt100 [Nm] | 1440.0 |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static torsional moment load capacity Mt0 [Nm] | 2500 |
| Dynamic longitudinal moment load capacity ML50 [Nm] | 1630.0 |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic longitudinal moment load capacity ML100 [Nm] | 1290.0 |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static longitudinal moment load capacity ML0 [Nm] | 2240 |

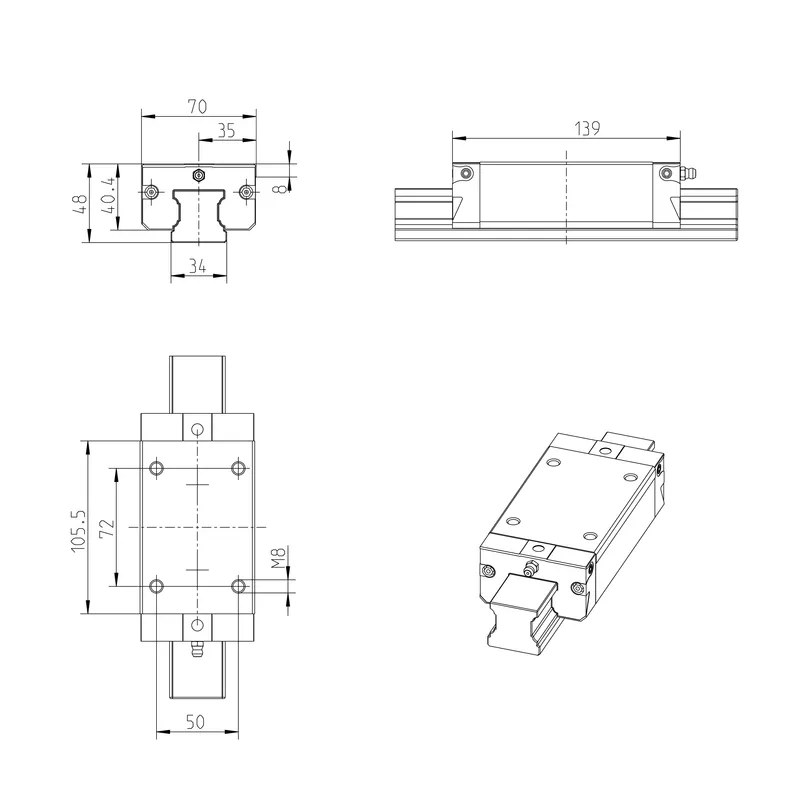

| Pitch T guide rail [mm] | 80 |
| Dimension A (profiled rail systems) [mm] | 70 |
| Dimension B (profiled rail systems) [mm] | 139 |
| Dimension B1 [mm] | 105.5 |
| Dimension H [mm] | 48.0 |
| Dimension T1 min [mm] | 16 |
