BELLOWS 25 TYP 6 HEAT RESIST.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for ball rail systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R162025600 be shipped?
R162025600 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R162025600 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R162025600 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R162025600, subject to availability and destination.

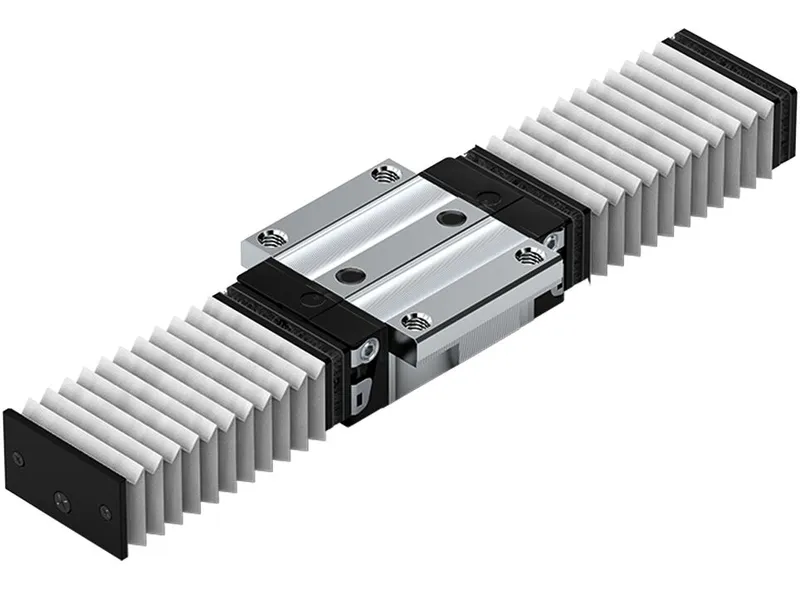

Bellows (heat-resistant) for ball rail systems<br>Type 6: With front lube unit and end plate<br>Size = 25 Material: Nomex fabric, metalized Temperature rating Non combustible, non flammable Resistant to sparks, welding spatter and hot chips. The protective metal coating can withstand peak temperatures of up to 200°C Operating temperature for the total bellows max. 80°C
Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 25 |
| Type | Type 6 |
| Height runner block with guide rail [mm] | 36.0 |
| Weight [kg] | 0 |
| Factor U footnote | Calculation factor (see project planning notes) |
| Dimension A4 (profiled rail system) [mm] | 62 |
| Dimension B3 [mm] | 12 |
| Dimension H [mm] | 36.0 |
| Dimension H3 [mm] | 39 |
| Dimension H4 [mm] | 44.5 |
| Dimension K3 (profiled rail systems) [mm] | 6 |
| Dimension W [mm] | 25.9 |
