LUBRICATING UNIT 20

Name: LUBRICATING UNIT 20
Brand: Bosch Rexroth
SKU: R161982600

MPN: R161982600 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Accessories for ball rail systems
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R161982600 be shipped?

R161982600 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R161982600 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R161982600 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R161982600, subject to availability and destination.

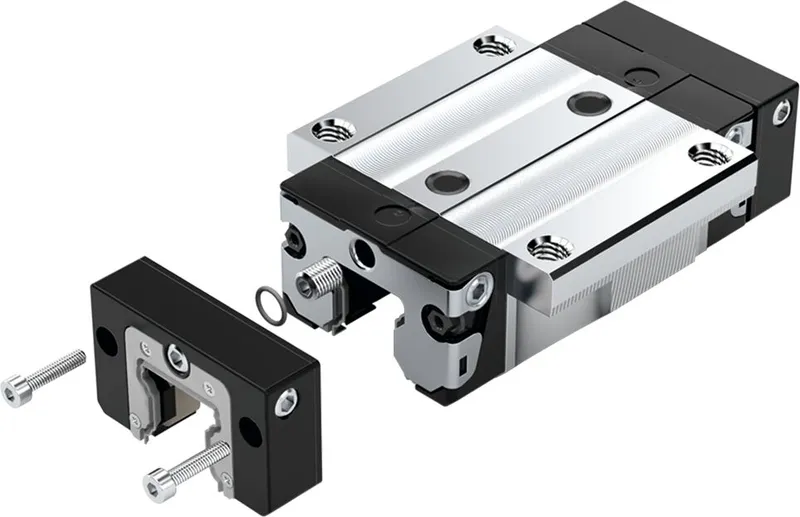

Front lube unit for ball rail systems<br>Size 20 For a travel distance of up to 25,000 km without re-lubrication Ball runner block only requires initial lubrication with grease Front lube units on both sides of the ball runner block Low lubricant loss Reduced oil consumption No lubrication lines Front lube unit can be refilled using the lube nipple on the end-face or at the side. Lube connection on the end-face of the front lube unit is suitable for lubricating the ball runner block with grease.

Specifications

Accessories for	Runner block
Nominal size [mm]	20
Tightening torque [Nm]	0.6
Height runner block with guide rail [mm]	28.0
Operating temperature (min. … max.)	+60 °C
Weight [kg]	0.05
Maximum operating temperature [°C]	+60
Possible travel distance s with front lube units	15000
Product information	For ball runner blocks F.N (flange ... low) and S.N. (slimline ... low)

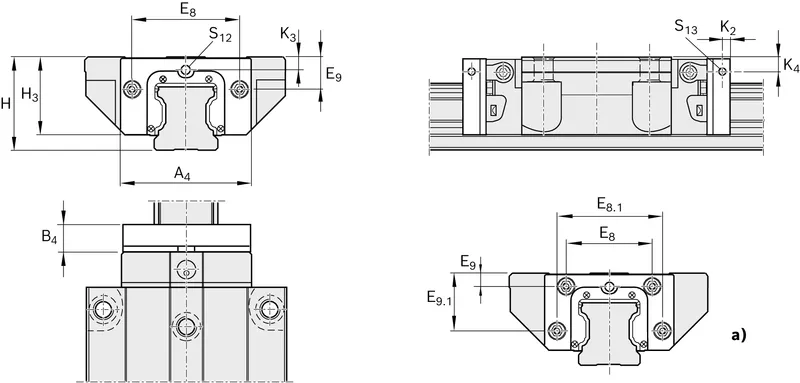

Dimension A4 (profiled rail system) [mm]	41
Dimension B4 [mm]	12.5
Dimension E8 (profiled rail systems) [mm]	30.5
Dimension E9 (profiled rail systems) [mm]	5.6
Dimension H [mm]	28.0
Dimension H3 [mm]	22.9
Dimension K3 (profiled rail systems) [mm]	3.1
Dimension K4 (profiled rail systems) [mm]	3.1
