FRONT SEAL 20
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for ball rail systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R161982050 be shipped?
R161982050 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R161982050 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R161982050 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R161982050, subject to availability and destination.

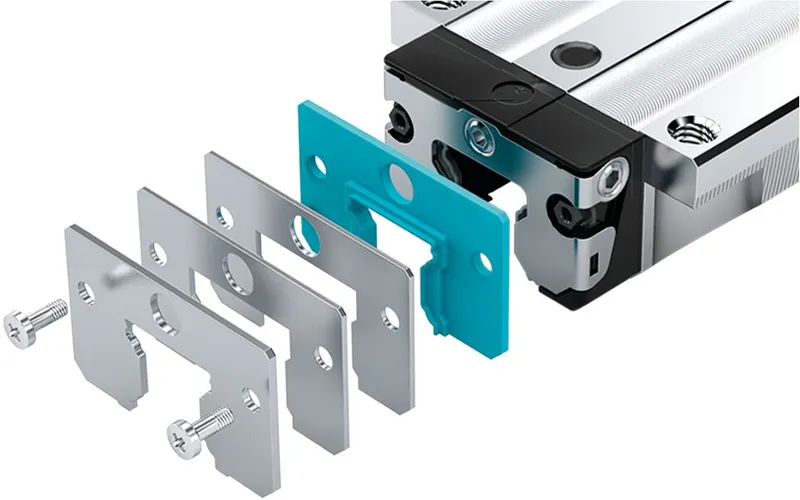

Seal kit for ball rail systems<br>With/without cover strip<br>Size 20 The seal kit is recommended when combining the cover plate wiper with a two-piece front seal.
Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 20 |
| Type | with/without cover strip |
| Weight [kg] | 0.04 |
| Size footnote | Not for ball runner blocks F.N (flange ... low) and S.N. (Slimline ... low) |

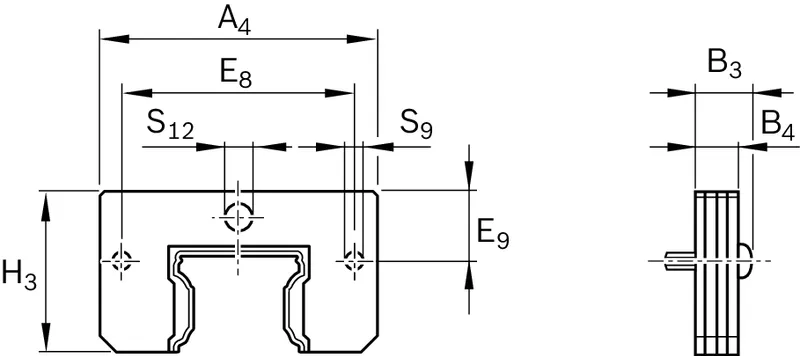

| Dimension A4 (profiled rail system) [mm] | 42 |
| Dimension B3 [mm] | 6.9 |
| Dimension B4 [mm] | 4.5 |
| Dimension diameter S12 (profiled rail systems) [mm] | 5,1 |
| Dimension diameter S9 (profiled rail systems) [mm] | 4 |
| Dimension E8 (profiled rail systems) [mm] | 32.4 |
| Dimension E9 (profiled rail systems) [mm] | 6.8 |
| Dimension H3 [mm] | 24.3 |
