CLAMPING ELEMENT KWH 4505 AS2A
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for ball rail systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R161944251 be shipped?
R161944251 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R161944251 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R161944251 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R161944251, subject to availability and destination.

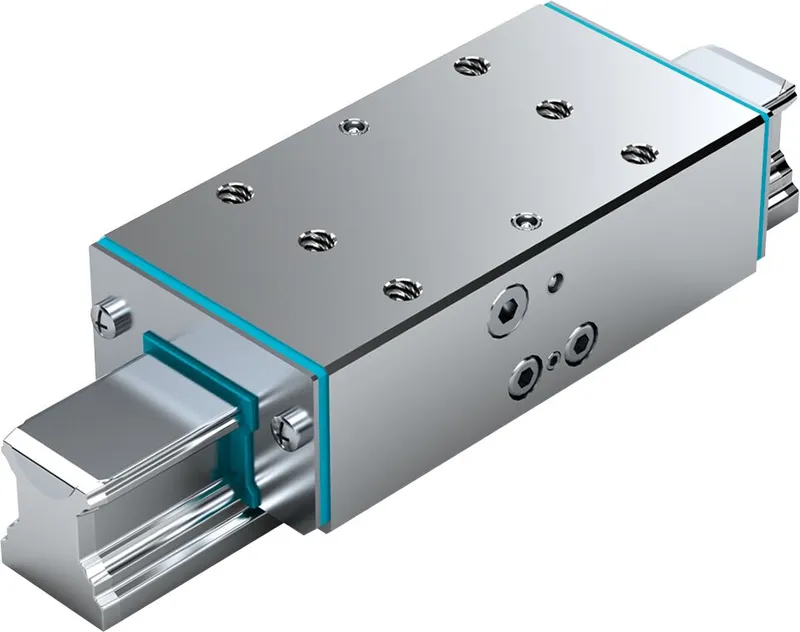

Hydraulic clamping unit KWH<sup>*)</sup>, SLS for ball rail systems<br>Size = 45<br>Can be used on all SNS ball guide rails<br><sup>*)</sup>Zimmer GmbH Very high axial holding forces Dynamic and static stabilization in the axial direction Compact design, compatible with DIN 645 Clamps and brakes with pressure Can be used on all SNS ball guide rails Threaded on both sides for the hydraulic connection Solid, rigid steel housing, chemically nickel-plated High positioning accuracy Integrated all-round sealing Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage Integrated positive-locking, large-surface contact profiles for maximum axial rigidity 10 million clamping cycles (B10d value)
Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 45 |
| Holding force [N] | 7400 |
| Permissible ambient temperature (min. ... max.) | 0 °C ... +70 °C |
| Weight [kg] | 3.99 |
| Footnote 1 holding force | The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see "Technical data and calculations". |
| Note: holding force 2 | 100 bar |
| Displacement footnote | Per clamping |
| Displacement [cm³] | 1.8 |

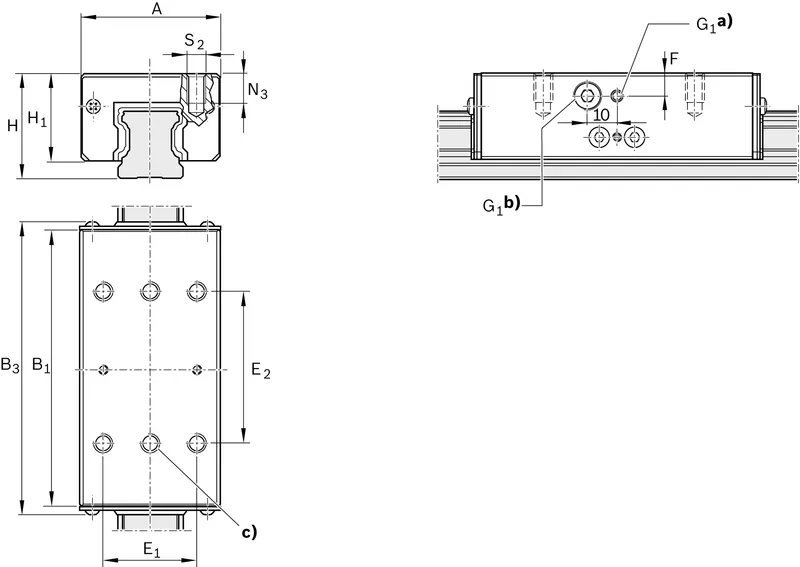

| Dimension A (profiled rail systems) [mm] | 86 |
| Dimension B1 [mm] | 155 |
| Dimension E1 [mm] | 60 |
| Dimension E2 (profiled rail systems) [mm] | 80 |
| Dimension F [mm] | 15 |
| Dimension H [mm] | 60.0 |
| Dimension H1 (profiled rail systems) [mm] | 50 |
| Dimension N3 (profiled rail systems) [mm] | 15 |
| Dimension S2 thread diameter (profiled rail systems) [mm] | M10 |
