BELLOWS 55 TYP 9 HEAT RESIST.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for ball rail systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R160055900 be shipped?
R160055900 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R160055900 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R160055900 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R160055900, subject to availability and destination.

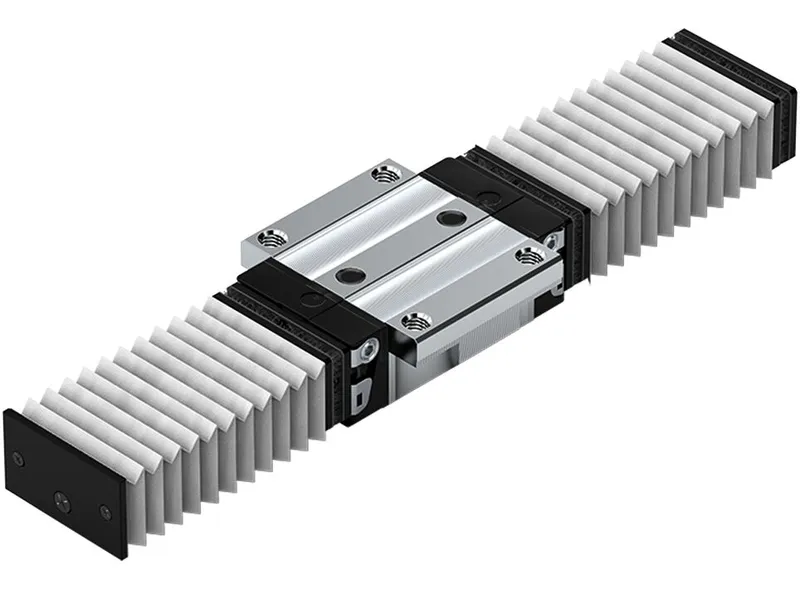

Bellows (heat-resistant) for ball rail systems<br>Type 9: Loose bellows (spare part)<br>Size = 55 Material: Nomex fabric, metalized on both sides Temperature rating Non combustible, non flammable Resistant to sparks, welding spatter and hot chips. The protective metal coating can withstand peak temperatures of up to 200°C 100°C operating temperature for the total bellows
Specifications

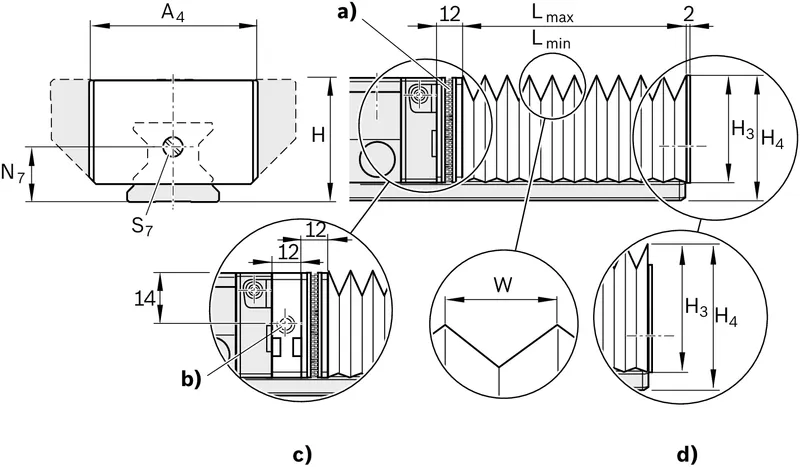

Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 55 |
| Type | Type 9 |
| Height runner block with guide rail [mm] | 70.0 |
| Weight [kg] | 0 |
| Factor U footnote | Calculation factor (see project planning notes) |
| Dimension A4 (profiled rail system) [mm] | 102 |
| Dimension B3 [mm] | 12 |
| Dimension H [mm] | 70.0 |
| Dimension H3 [mm] | 63 |
| Dimension H4 [mm] | 75 |
| Dimension K3 (profiled rail systems) [mm] | 9 |
| Dimension W [mm] | 37.9 |
