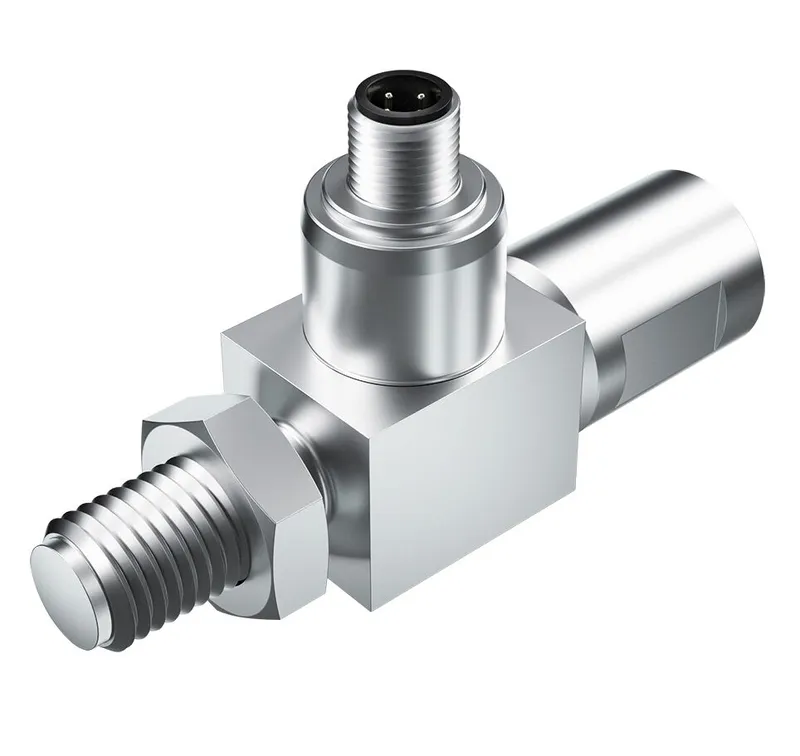

FORCE SENSOR FS-20-10-1

Name: FORCE SENSOR FS-20-10-1
Brand: Bosch Rexroth
SKU: R156663001

MPN: R156663001 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Accessories and components for Smart Function Kit Pressing
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R156663001 be shipped?

R156663001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R156663001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R156663001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R156663001, subject to availability and destination.

Based on strain gauge technology For compressive forces and low traction forces Robust and long-term stability Corrosion-resistant stainless steel version High reproducibility Easy mounting directly at the EMC piston rod

Specifications

Nominal size [mm]	19
Tightening torque [Nm]	356
Connection	Male connector M12x1 4-pin
Outer diameter D [mm]	30.0
Operating load (of the measuring range) [%]	150
Operating temperature (min. … max.)	-30 °C ... +80 °C
Output signal [V]	0.476
Output signal (measuring range) with tolerance	0+10 V
Output signal with tolerance	0,476 V ±0,03
Output signal tolerance [V]	±0.03
Bandwidth [kHz]	1
Bandwidth with tolerance	1 kHz ±0,2
Bandwidth tolerance [kHz]	±0.2
Breaking load (of the measuring range) [%]	300
Weight [kg]	0.42
Hysteresis (of the measuring range) [%]	0.1
Compensated temperature	-20 °C ... +80 °C
Maximum operating temperature [°C]	+80
Minimum operating temperature [°C]	-30
Non-linearity (of the measuring range) [%]	±0.3
Protection class	IP67
Current consumption [mA]	8
Temperature drift zero point (of the measuring range per Kelvin) [%]	0.02
Temperature drift above measuring range (of the measuring range per Kelvin) [%]	0.02

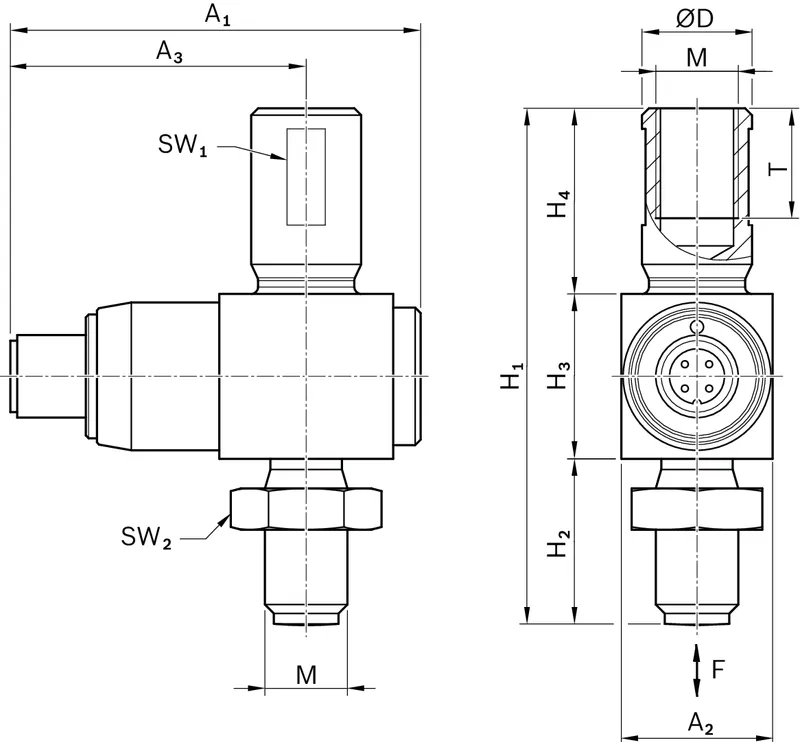

Dimension A1 (profiled rail systems) [mm]	70
Dimension A2 (profiled rail systems) [mm]	35
Dimension D [mm]	30
Dimension H1 (profiled rail systems) [mm]	134
Dimension H3 [mm]	50
Dimension H4 [mm]	44
Dimension SW1 [mm]	26
Dimension SW2 [mm]	30
