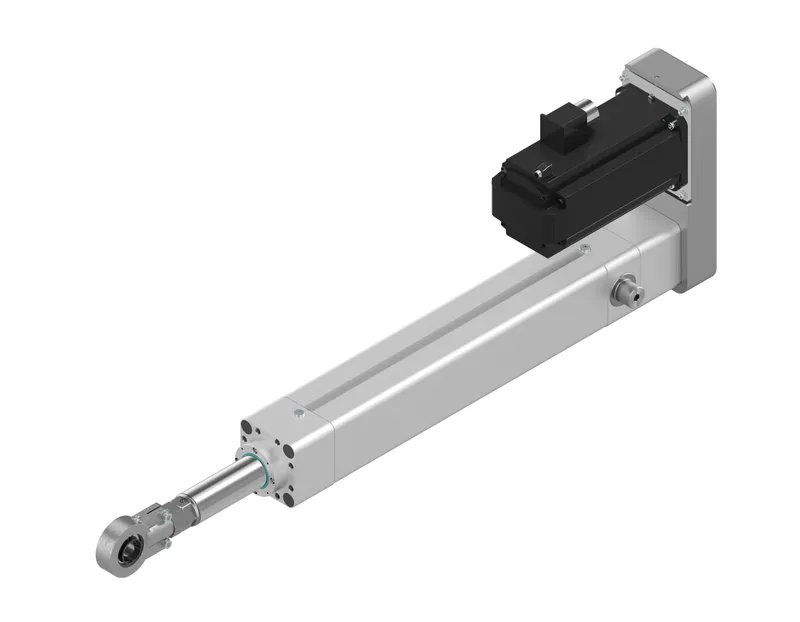

LINEAR ACTUATOR EMC-220-HP-1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Electromechanical cylinders EMC-HP |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R156470000 be shipped?
R156470000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R156470000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R156470000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R156470000, subject to availability and destination.
Precise positioning, high dynamics, powerful drive and a long service life thanks to precision Rexroth planetary screw assemblies Smart, service-oriented, freely programmable drive system allows the realization of complex travel profiles (parameterization of force, position and travel speed as required over the complete working travel range) High energy efficiency and low negative environmental impact (no risk of leaks) Straightforward, compact and robust structural design for space-saving integration in machine concepts and usage even in harsh environmental conditions Complete building system with great variability for high flexibility in a broad range of applications
Specifications
Specifications
| Nominal size [mm] | 220 |
| Maximum permissible axial force Fmax [N] | 250000 |
| Dynamic load capacity C [N] | 473000.0 |
| Maximum travel range smax [mm] | 1500.0 |
| Minimum travel range smin [mm] | 190 |
| Maximum acceleration rate amax [m/s²] | 30.0 |
| Maximum permissible linear speed vmax [m/s] | 0.66 |
| Permissible ambient temperature with Rexroth servo motor (min. ... max.) | 0 °C ... 40 °C |
| Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.) | loss of performance at 40°C or higher |
| Permissible ambient temperature mechanics (min. … max.) | -10 °C ... +50 °C |
| Note: Permissible ambient temperature mechanics (min. … max.) | up to +70°C with low duty cycle and power |
| Duty cycle [%] | 100 |
| Weight [kg] | 0 |
| Note: Duty cycle | je nach geforderter Leistung kann die zulässige Einschaltdauer auf Grund der Wärmeentwicklung eingeschränkt sein. |
| Note: Max. total backlash | im Neuzustand |
| Note: Permissible ambient temperature mechanics with PLSA and low-temperature grease (min. … max.) | up to +60°C with low duty cycle and power |
| Constant for the fixed portion of the moving mass mca fix [kg] | 42.3 |
| Constant for fixed portion of mass kg fix [kg] | 85 |
| Constant for the variable-length proportion of the moving mass mca var [kg/mm] | 0.0272 |
| Constant for variable-length portion of mass kg var [kg/mm] | 0.07268 |
| Constant for fixed portion of mass moment of inertia kJ fix [kg·mm²] | 40774 |
| Constant for variable-length portion of mass moment of inertia kJ var [kg·mm] | 24407 |
| Constant for mass-specific portion of mass moment of inertia kJ m [mm²] | 10.132 |
| Additional length with trunnion Lad [mm] | 648.5 |
| Additional length without trunnion Lad [mm] | 648.5 |
| Maximum total backlash [°] | 1.4 |
| Maximum permissible rotary speed np [min⁻¹] | 2000 |
| Maximum permissible drive torque Mp [Nm] | 994.7 |
| Normal stroke | The distance per cycle is ≥ smin |
| Friction torque of the system MRs [Nm] | 19 |
| Protection class | IP54 |
| Protection class, housing | IP65 |
| Mechanical efficiency η | 0.8 |
| Permissible ambient temperature mechanics with PLSA and low-temperature grease (min. … max.) | -30 °C ... +50 °C |
| Permissible ambient temperature mechanics oil lubrication (min. … max.) | 0 °C ... +50 °C |
| Dimension AM [mm] | 113 |
| Dimension B d9 [mm] | 165 |
| Dimension BA h7 [mm] | 125 |
| Dimension DZ h7 [mm] | 55 |
| Dimension E [mm] | 220 |
| Dimension IRF with thread depth | M16 ‒ 32 mm deep |
| Dimension J [mm] | 181 |
| Dimension J1 [mm] | 285 |
| Dimension J2 [mm] | 431 |
| Dimension KK | M64x3 mm |
| Dimension KW [mm] | 51 |
| Dimension KX [mm] | 95 |
| Dimension Lad with trunnion [mm] | 648.5 |
| Dimension Lad without trunnion [mm] | 648.5 |
| Dimension LR [mm] | 88.5 |
| Dimension LZ [mm] | 92.5 |
| Dimension LZS [mm] | 215 |
| Dimension MM f8 [mm] | 120 |
| Dimension Q with thread depth | M16 ‒ 32 mm deep |
| Dimension SW1 [mm] | 95 |
| Dimension SW2 [mm] | 100 |
| Dimension TKB [mm] | 185 |
| Dimension TKR [mm] | 200 |
| Dimension VA [mm] | 4 |
| Dimension VA tolerance [mm] | ±0.1 |
| Dimension VFB with trunnion [mm] | 289 |
| Dimension VFB without trunnion [mm] | 289 |
| Dimension VFD [mm] | 115 |
| Dimension VG [mm] | 37 |
| Dimension W h7 [mm] | 80 |
| Dimension WA [mm] | 33.5 |

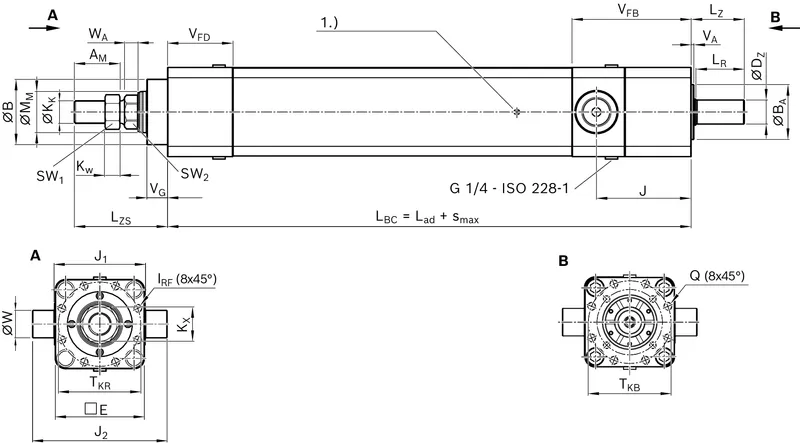

| Note dimensional drawing EMC-HP | Funnel-type lube nipple (on two sides) DIN 3405-A M6 (threaded hole M6 x 14) |
