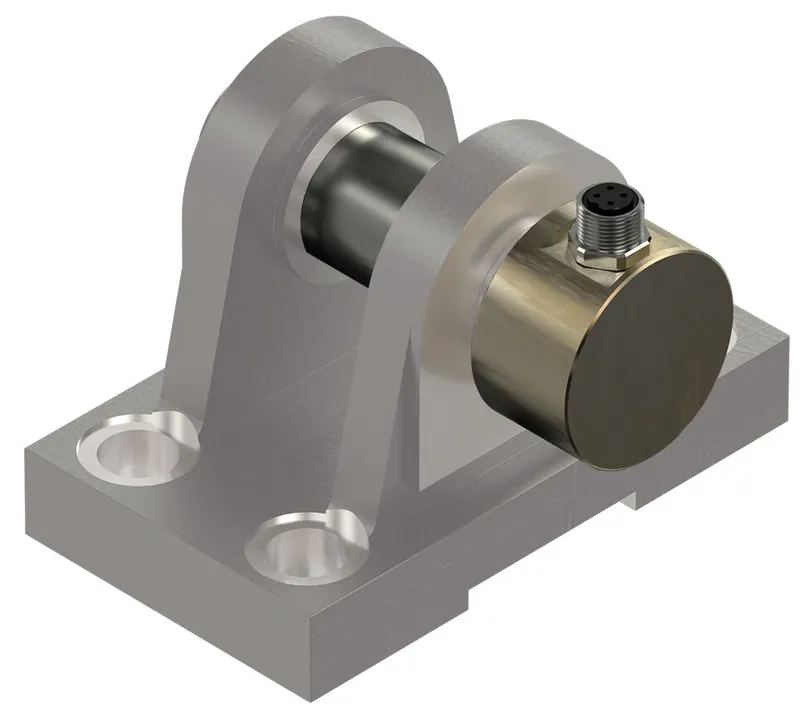

MEASURING ROD EMC-105-HD
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Electrical accessories for electromechanical cylinders |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R156347080 be shipped?
R156347080 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R156347080 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R156347080 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R156347080, subject to availability and destination.
For tensile and compressive forces Corrosion-resistant stainless steel version Integrated amplifier Low temperature coefficient High long term stability High shock and vibration resistance For dynamic or static measurements Good reproducibility Easy mounting
Specifications
Specifications
| Connection type 1 | Female connector, M12, 4-pin |
| Electrical accessories for electromechanical cylinders | Force sensors |
| Connection type 2 | Flying leads |
| Nominal size [mm] | 130 |
| Connection | Connector M12x1 |
| Power supply voltage [V DC] | 24 |
| Operating load (of the measuring range) [%] | 150 |
| Operating temperature (min. … max.) | -20 °C ... +60 °C |
| Output signal [V] | 0 |
| Output signal (measuring range) with tolerance | -10 ... +10 V ±0,2 |
| Output signal (measuring range) tolerance [V] | ±0.2 |
| Output signal with tolerance | 0 V ±0,03 |
| Output signal tolerance [V] | ±0.03 |
| Permissible ambient temperature (min. ... max.) | -25 °C ... +80 °C |
| Cable cross-section | 4 x 0.34 mm² |
| Bandwidth [kHz] | 2.5 |
| Bandwidth with tolerance | 2,5 kHz ±0,2 |
| Bandwidth tolerance [kHz] | ±0.2 |
| Rated voltage [V] | 250 |
| Rated current [A] | 4 |
| Shield | yes |
| Dynamic bending radius | > 5xD |
| Static bending radius | > 10xD |
| Bending cycles | > 2 million |
| Breaking load (of the measuring range) [%] | 300 |
| Weight [kg] | 1.3 |
| Hardness [HRC] | 38 HRC |
| Hysteresis (of the measuring range) [%] | ±0.2 |
| Cable diameter D [mm] | 5.9 |
| Cable diameter D tolerance [mm] | ±0.2 |
| Cable color | Black |
| Cable material | PUR |
| Compensated temperature | +10 °C ... +40 °C |
| Maximum operating temperature [°C] | +60 |
| Measurement range [kN] | 80 |
| Minimum operating temperature [°C] | -20 |
| Non-linearity (of the measuring range) [%] | ±0.5 |
| Zero setting function (tare) | 7.2 V ... 24 V |
| Suitable for drag chains | Yes |
| Protection class | IP65 |
| Connector outlet | angled |
| Current consumption [mA] | max.50 |
| Temperature drift zero point (of the measuring range per Kelvin) [%] | ±0.05 |
| Temperature drift above measuring range (of the measuring range per Kelvin) [%] | ±0.05 |
| Ambient temperature, in motion | -40 °C ... +80 °C |
| Material of electromechanical cylinders | stainless steel |
| Repeatability (of the measuring range) [%] | ±0.25 |

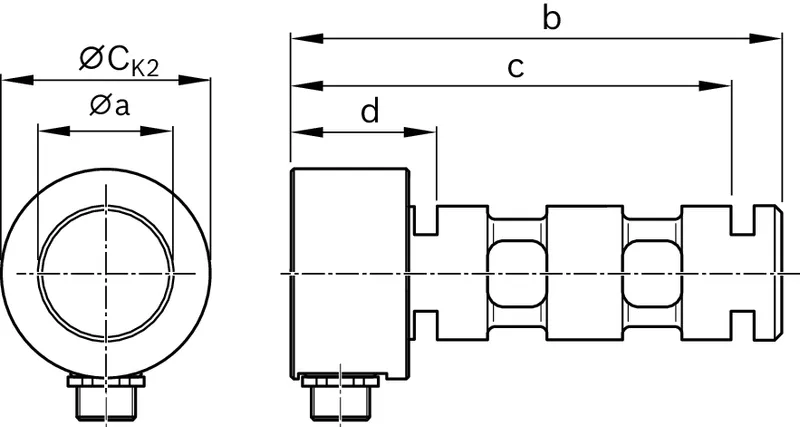

| Dimension a f8 [mm] | 40 |
| Dimension b [mm] | 135 |
| Dimension C [mm] | 122 |
| Dimension CK2 [mm] | 40 |
| Dimension d [mm] | 32 |
