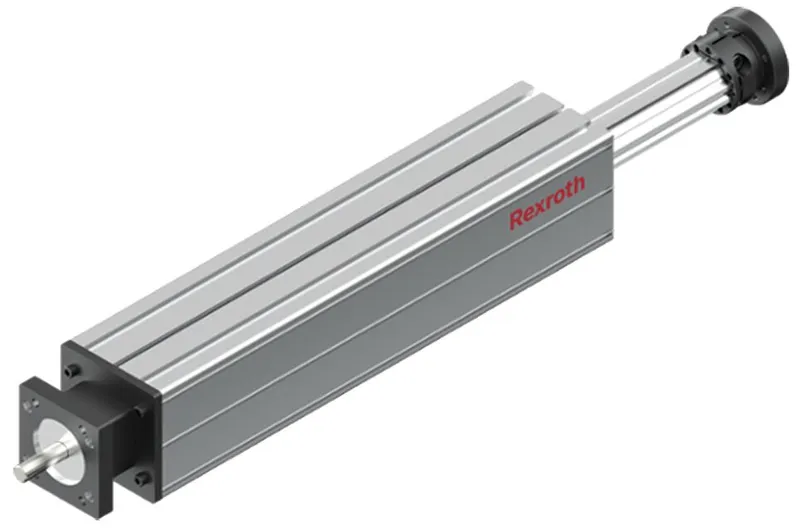

FEED MODULE VKK-070-NN-1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Feed modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R146230000 be shipped?
R146230000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R146230000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R146230000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R146230000, subject to availability and destination.
Extremely compact aluminum profile (frame) with zero-backlash ball rail system Integrated precision ball screw assembly (KGT) according to tolerance grade 7 with zero-backlash nut system
Specifications
Specifications
| Nominal size [mm] | VKK-070 |
| Linear axes variant | Ball screw assembly |
| Maximum travel range smax [mm] | 452.0 |
| Note: maximum permissible travel range | Max. travel range (without bellows) at max. length |
| Maximum acceleration rate amax [m/s²] | 27.0 |
| Maximum permissible linear speed vmax [m/s] | 1.23 |
| Note: maximum permissible speed vmax | For all lengths |
| Max. length Lmax [mm] | 600.0 |
| Dynamic load capacity, guideway Cgw [N] | 8120 |
| Dynamic load capacity, fixed bearing Cfb [N] | 13400 |
| Dynamic load capacity, ball screw assembly Cbs [N] | 12300 |
| Dynamic torsional moment load capacity Mt [Nm] | 160.0 |
| Dynamic longitudinal moment load capacity ML [Nm] | 280.0 |
| Maximum permissible torsional moment Mt max [Nm] | 55 |
| Maximum permissible longitudinal load moment ML max [Nm] | 110 |
| Permissible ambient temperature with Rexroth servo motor (min. ... max.) | 0 °C ... 40 °C |
| Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.) | Loss of performance at 40°C or higher |
| Permissible ambient temperature mechanics (min. … max.) | -10 °C ... 60 °C |
| Note: Permissible ambient temperature mechanics (min. … max.) | No dropping below dew point |
| Weight [kg] | 0 |
