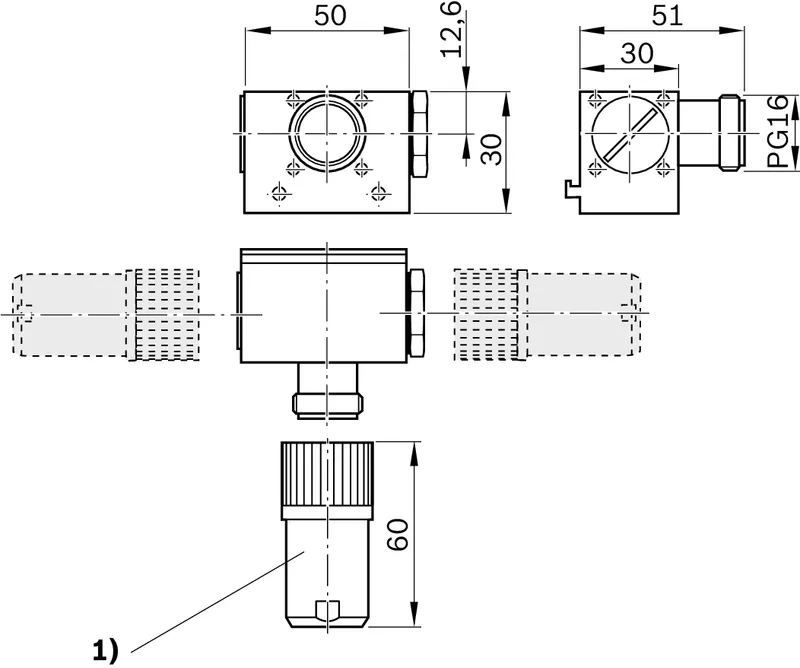

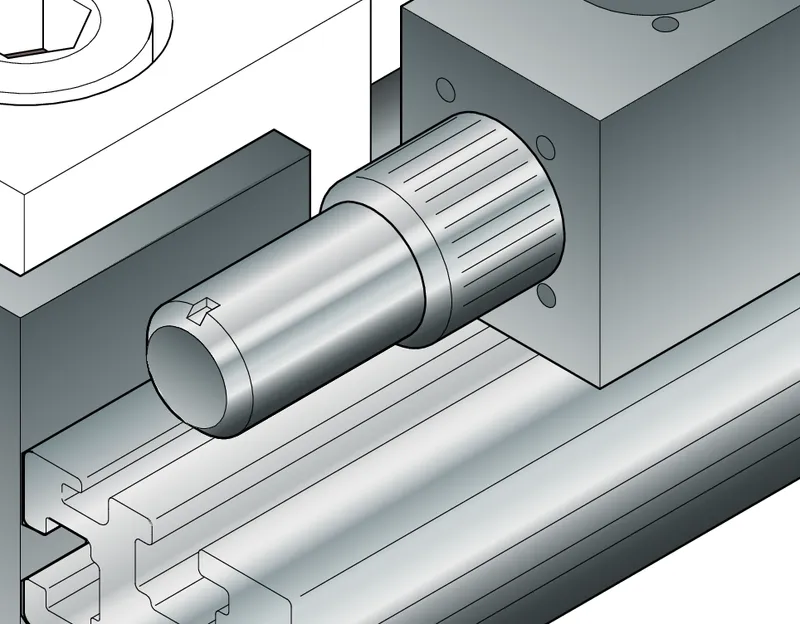

SOCKET-PLUG-COMBINATION BG

Name: SOCKET-PLUG-COMBINATION BG
Brand: Bosch Rexroth
SKU: R141400061

MPN: R141400061 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Electrical accessories for linear axes
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R141400061 be shipped?

R141400061 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R141400061 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R141400061 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R141400061, subject to availability and destination.

Specifications

Electrical accessories for linear axes	Socket and connector
Use	Socket and connector
Flange socket connection type	Soldered connection
Connection type of motor connector	Soldered connection
Pin number	16
Permissible ambient temperature (min. ... max.)	-20 °C ... +125 °C
Operating voltage (min. … max.)	10 V DC ... 30 V DC
Designation	for SGK/SOK
Diameter soldered connection flange socket [mm]	≤1
Diameter soldered connection connector [mm]	≤1
Weight [kg]	0.22
Cable diameter D (min. … max.)	10 mm ... 14 mm
Housing cable bushing	1 seal with bore 2x5.5 mm, 1x3.5 mm 1 adaptable seal, max. 14 mm diameter
Cable bushing, connector	Bolting with pull relief
Maximum operating current per contact [A]	8
Option number	17
Plug cycles	>50
