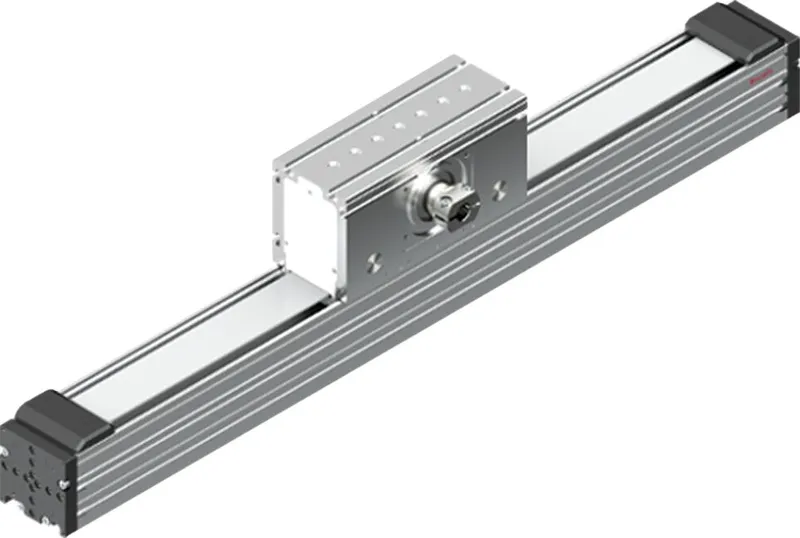

LINEAR MODULE OBB-120-NN-1

Name: LINEAR MODULE OBB-120-NN-1
Brand: Bosch Rexroth
SKU: R114460000

MPN: R114460000 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Omega modules
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R114460000 be shipped?

R114460000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R114460000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R114460000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R114460000, subject to availability and destination.

Available in three sizes in lengths up to 5500 mm With planetary gear (PG) or angular planetary gear (WPG) with various gear ratios Pneumatic clamping unit is optional Wide range of accessories available

Specifications

Nominal size [mm]	OBB-120
Linear axes variant	Toothed belt drive
Maximum acceleration rate amax [m/s²]	50.0
Maximum permissible linear speed vmax [m/s]	5.0
Note: maximum permissible speed vmax	The disclosed values apply to the OBB without gear and have been reduced in relation to the specified motor shaft.
Max. length Lmax [mm]	5500.0
Dynamic load capacity, guideway Cgw [N]	96200
Dynamic torsional moment load capacity Mt [Nm]	2360.0
Dynamic longitudinal moment load capacity ML [Nm]	10390.0
Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]	776
Maximum permissible dynamic torsional moment about the y-axis My max [Nm]	3424
Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]	3424
Maximum dynamic load in y-direction Fy max [N]	31700
Permissible ambient temperature with Rexroth servo motor (min. ... max.)	0 °C ... 60 °C
Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)	Loss of performance at 40°C or higher
Permissible ambient temperature mechanics (min. … max.)	-10 °C ... 60 °C
Note: Permissible ambient temperature mechanics (min. … max.)	No dropping below dew point
Weight [kg]	0
Maximum dynamic load in z-direction Fz max [N]	31700
