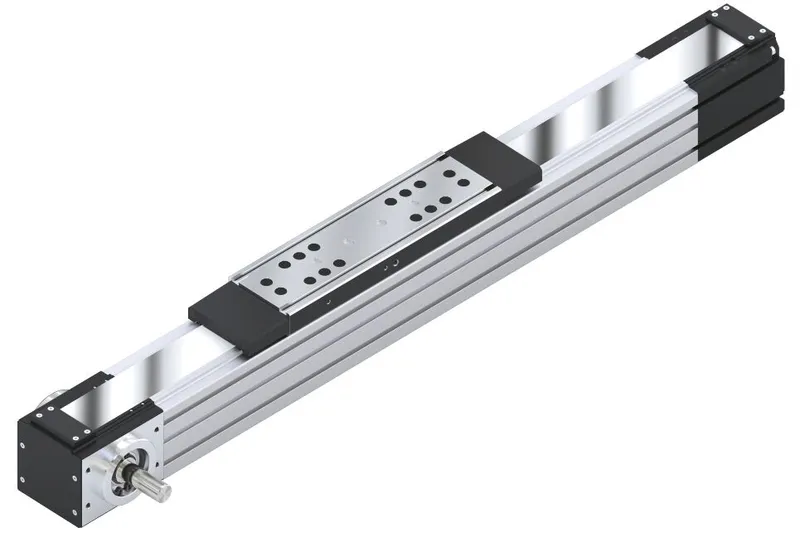

LINEAR MODULE MKR-040-NN-3

Linear modules MKR with ball rail systems and toothed belt drive, size 40, standard version Linear modules with ball rail system and toothed belt drive The integrated, backlash-free Rexroth rail guide system makes it possible for large masses to be moved at high speed thanks to high load capacities and optimal travel performance High-performance toothed belt in the largest possible overall width for high drive torques with simultaneously high rigidity Available in nine sizes in lengths up to 9800 mm Repeatability of up to ± 0.05 mm Installation elements are protected by a plastic strip with MKK/MKR-040/-065 or corrosion-resistant steel strip with MKK/MKR-080/-110/-140 Idler end enclosure: With integrated belt-tensioning system. The belt pulley system is equipped with lifetime lubricated ball bearings The Rexroth ball rail system features one-point lubrication from both sides; central lubrication only suitable for grease lubrication with a manual grease gun Individual lubrication versions for connection to central lubrication systems (only for product generation 3) Fastening of superstructures on the carriage via T-slots or tapped holes Ball guide rail with corrosion-resistant coating, corrosion-resistant steel ball runner block (only for product generation 3) Absolute length measuring system IMS-A directly integrated into the guide system (for MKR-080, MKR-110 and MKR-140, product generation 3) With planetary gears in different gear ratios and versions for optimum adaptation of the external load to the motor inertia. Servo motor with multi-turn encoder, 1-cable or 2-cable connection, with or without holding brake Magnetic field sensors can be mounted directly on the profile body without additional attachments (only for product generation 3) Switch inductive or mechanical, cable duct, socket-plug and extension cable Extensive accessories range of connection and clamping units and connecting shafts Name plate with technical parameters for easy commissioning

Specifications
