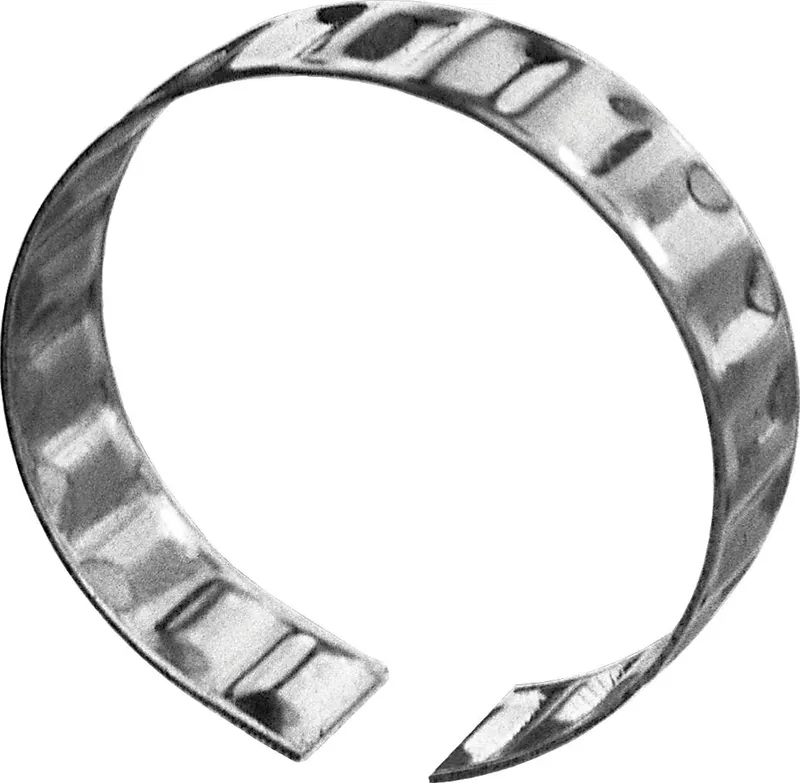

TOLERANCE RING AN62X15
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for ball transfer units |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R081006203 be shipped?
R081006203 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R081006203 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R081006203 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R081006203, subject to availability and destination.
Tolerance ring<br>Type AN: The circumferential flat edges are located on the outer diameter of the tolerance ring. For use with a standard nominal shaft.<br>Tolerance ring diameter (d) = 62<br>Tolerance ring width (b) = 15<br>Carbon steel Quick, economic installation Compensates the differences in thermal expansion between machine elements made of different materials Eliminates the need for keyways or other positive-locking connections Connecting parts have a simple design High temperature stability Special sizes available on request Extremely low-cost machine element Resistant to various types of chemical stress Fixed and secure connection of machine parts Large tolerance zone with connecting parts
Specifications
Specifications
| Nominal size [mm] | 62 x 15 |
| Transferable torque [Nm] | 300 |
| Permissible radial load [N] | 14000 |
| Weight [kg] | 0.02 |
| Material footnote | Up to 200°C continuous temperature, brief peaks up to 250°C |
| Dimension b [mm] | 15 |
| Dimension d [mm] | 62 |
