CURVE KU 1/360

Name: CURVE KU 1/360
Brand: Bosch Rexroth
SKU: 3842999988

MPN: 3842999988 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Curve KU 1
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842999988 be shipped?

3842999988 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842999988 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842999988 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842999988, subject to availability and destination.

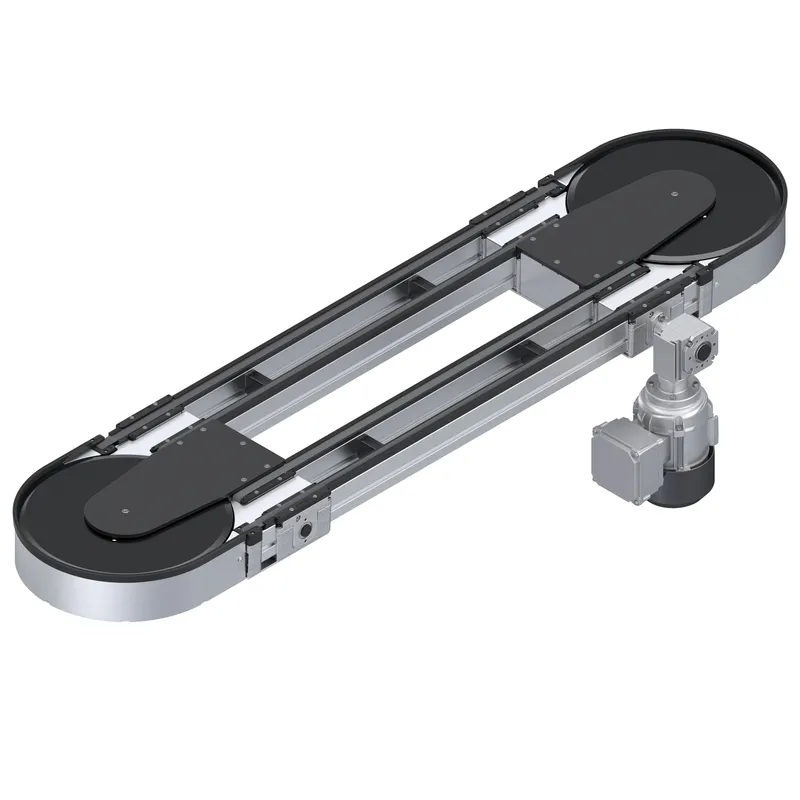

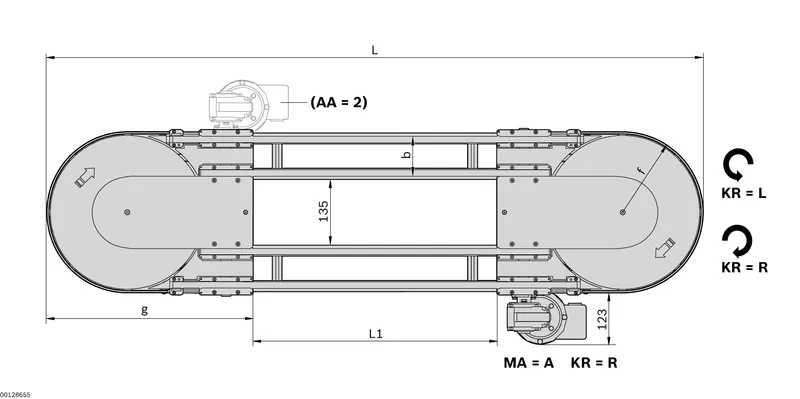

Curve KU 1/360 Belt distance a = 135 mm Integrated shared drive for both turntables and the mounted belt sections. Section load up to 24 kg Section load up to 30 kg when a second drive is used (AE = 2) Conveyor medium: Turntable, suitable for use in an EPA Length of the belt sections freely selectable, l<sub>max</sub> = 5000 mm Curve direction right (KR = R) or left (KR = L) Motor mounting external (MA = A)

Specifications

ESD	Yes
Length [L1 max] [mm]	150
Length [L1 min] [mm]	5000
Dry room [%rF]	<1
Section load in accumulation operation [kg]	30
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Scope of delivery	Curve module complete with drive
Delivery information	Partially assembled
Preferred values [mm]	120; 160; 80
Clean room classification	ISO class 7
Recommended accessories	Accumulation pressure regulation; Leg sets SZ 1/...
Weight [kg]	0
