CURVE KE 2/90-O
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Curves TS 2plus |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842999725 be shipped?
3842999725 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842999725 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842999725 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842999725, subject to availability and destination.

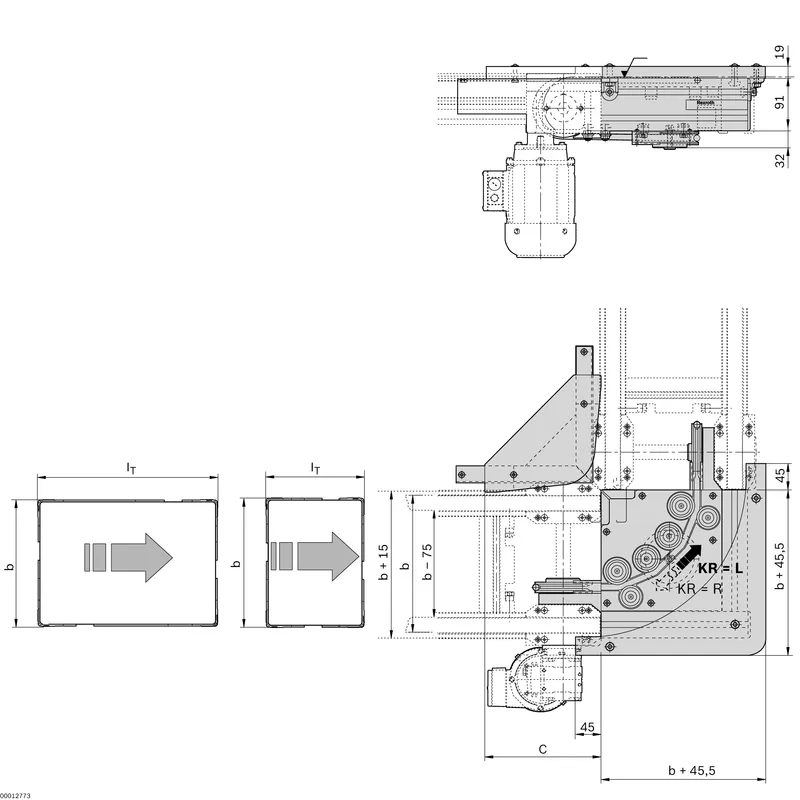

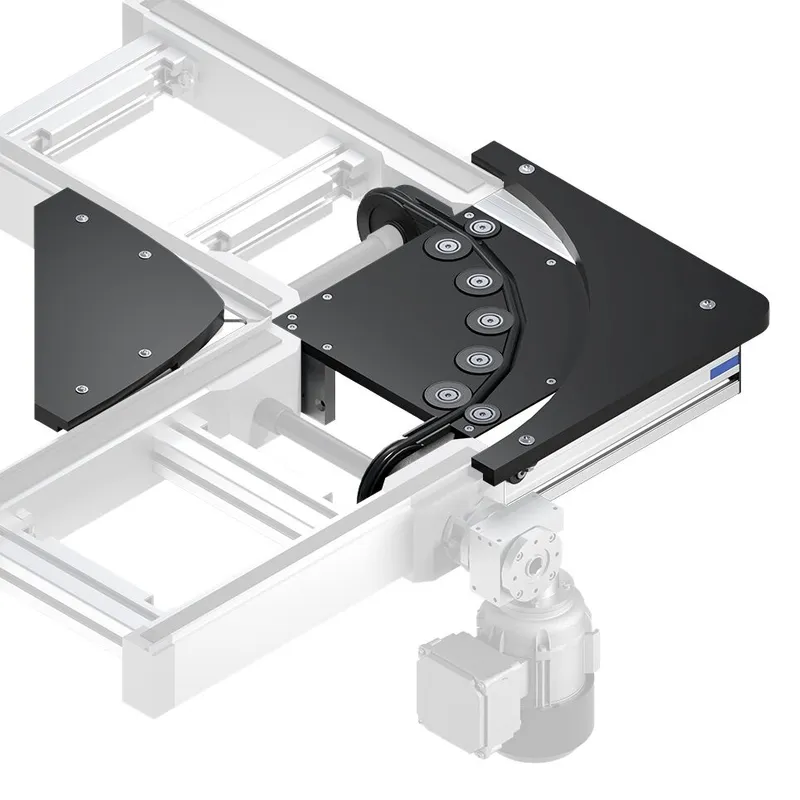

Curve KE 2/O-90 90° curve conveyor for the workpiece pallet Suitable for combination with BS 2 or BS 2/K Curve without own drive Overall weight of workpiece pallets up to 20 kg Conveyor medium: Round belt (suitable for use in an EPA) Can be combined with WT 2, WT 2/F and WT 2/LS (only with version LS) Accumulation operation not permitted
Specifications
Specifications
| ESD | Yes |
| Workpiece pallet total weight [mG] [kg] | 20 |
| Length in direction of transport [lT] [mm] | 160; 240; 320; 400 |
| Scope of delivery | Curve, complete with fastening parts |
| Delivery information | Inner guide included; Partially assembled |
| Preferred values [mm] | 160; 240; 320; 400 |
| Conveyor medium | Round belt (suitable for use in an EPA) |
| Required accessories | 2x belt section BS 2/K |
| Recommended accessories | Section supports SZ 2/... |
| Weight [kg] | 0 |
