BELT SECTION BS 2/TE

Name: BELT SECTION BS 2/TE
Brand: Bosch Rexroth
SKU: 3842999723

MPN: 3842999723 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Transverse conveyor belt sections TS 2plus
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842999723 be shipped?

3842999723 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842999723 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842999723 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842999723, subject to availability and destination.

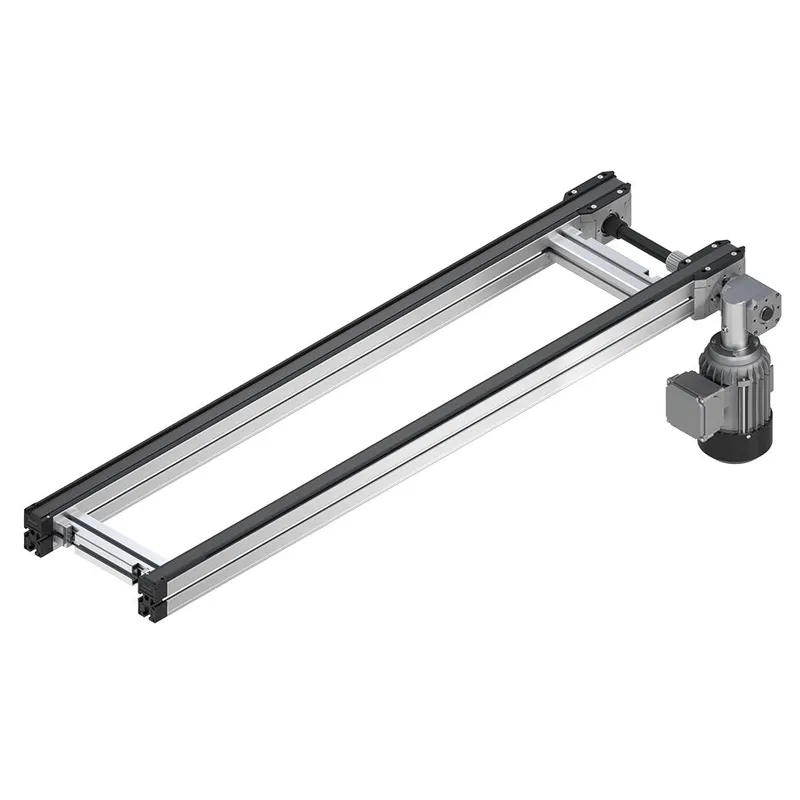

BS 2/TE Belt Section Ready for operation with drive for transverse conveyor into a dead end Additional toothed gear to drive one HQ 2/O lift transverse unit Reversible operation possible Conveyor medium: Toothed belt (suitable for use in an EPA) Can be combined with WT 2/E, WT 2, WT 2/F, WT 2/H and WT 2/F-H

Specifications

ESD	Yes
Length max [l max] [mm]	240
Length min [L min] [mm]	6000
Section load in accumulation operation [kg]	60
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Delivery information	Fully assembled
Preferred values [mm]	160; 240; 320; 400; 480; 640; 800
Conveyor medium	Toothed belt (suitable for use in an EPA)
Recommended accessories	Connection kit for installing the belt section between the ST 2/… conveyor sections; Section supports SZ 2/...
Weight [kg]	0
