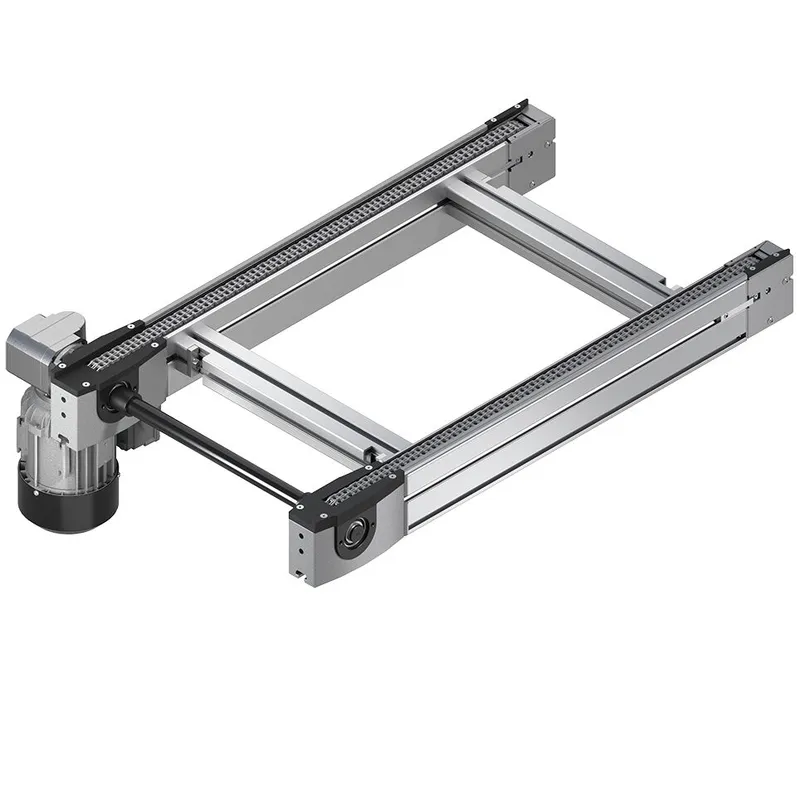

BELT SECTION BS 2/G-250

Name: BELT SECTION BS 2/G-250
Brand: Bosch Rexroth
SKU: 3842999022

MPN: 3842999022 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Belt section duplex chain
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842999022 be shipped?

3842999022 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842999022 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842999022 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842999022, subject to availability and destination.

BS 2/G-250 belt section Particularly robust, functional conveyor section, complete with drive Longitudinal conveying of the workpiece pallet on conveyor sections of up to 2000 mm Transverse conveying between parallel conveyor sections Can also be used in longitudinal conveyors Recommended for use with two HQ 2/G-H lift transverse units Conveyor medium: Duplex chain (suitable for use in an EPA) Motor mounting on right, left or centrally (centrally on track widths of 240 mm and above) Motor connection: optionally with cable/plug or terminal box motor connection Integrated chain tensioner; to be adjusted manually Special models on request We strongly advise using the LU 2 automatic lubrication unit Accumulation operation not permitted Reversible operation possible Only workpiece pallets with PE wear pad are permitted

Specifications

ESD	Yes
Length max [L max] [mm]	2000
Length min [L min] [mm]	385
Dry room [%rF]	<1
Track width in direction of transport [b max] [mm]	1200
Track width in direction of transport [b min] [mm]	160
Operating temperature [T] max	+40 °C
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	250
Delivery information	Fully assembled
Notice	Chain suitable for use in an EPA; Individual width variants can be ordered
Preferred values [mm]	1040; 1200; 160; 240; 320; 400; 480; 640; 800
Material information	Glide profile: PE; Guide profile: Stainless steel; Section profile: Aluminum, natural; anodized
Clean room classification	ISO class 7
Conveyor medium	Duplex chain (suitable for use in an EPA)
Recommended accessories	Connection Kits; LU 2 Automatic Lubrication Unit; Section supports SZ 2/...
Weight [kg]	0
