ROTATE UNIT DE 2 - BG 4

Name: ROTATE UNIT DE 2 - BG 4
Brand: Bosch Rexroth
SKU: 3842998874

MPN: 3842998874 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Rotary units TS 2plus
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842998874 be shipped?

3842998874 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842998874 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842998874 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842998874, subject to availability and destination.

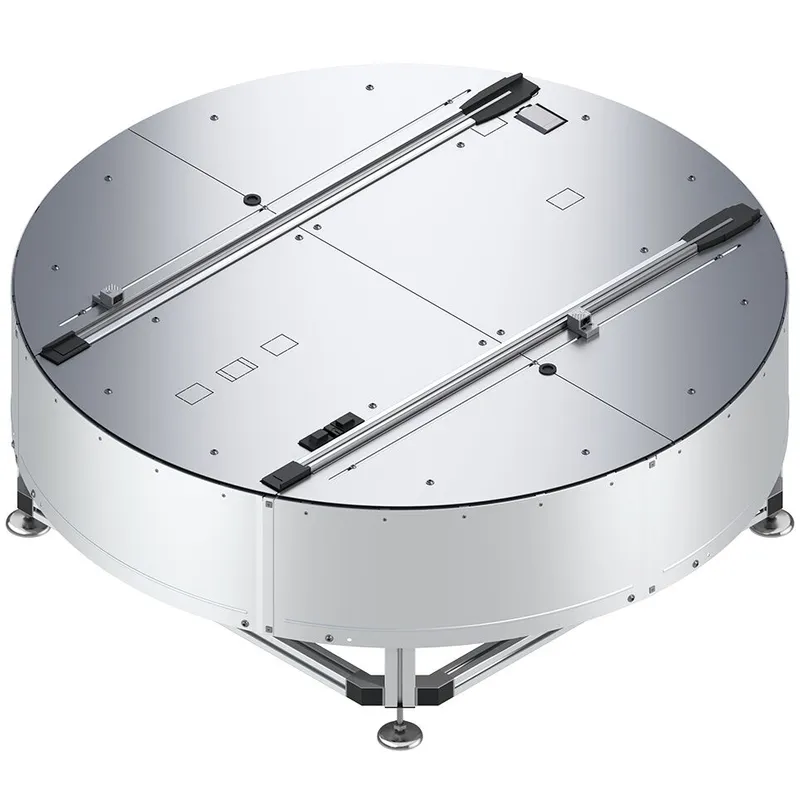

Rotate unit DE 2 - BG 4 The rotary unit is a module for the horizontal rotation and transport of workpiece carriers With this, branch-offs and crossings are also possible for heavy workpiece pallets (up to 208 kg)

Specifications

required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	5
Nominal speed [vN]	12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	208
Pneumatic straight connection [Ø] [mm]	6
Workpiece pallet type [WT]	1 = WT 2, WT 2/F; 2 = WT 2/H, WT 2/F-H
Transportation height [H]	585 ... 1400
Stop gate [VE]	0 = ohne; 1 = mit Vereinzeler

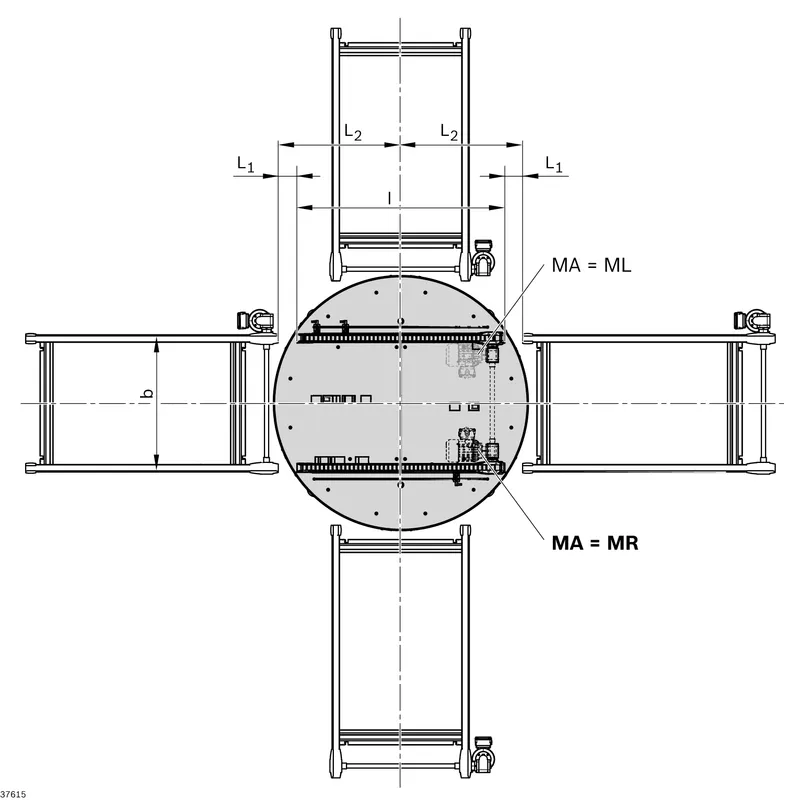

Belt section length L [mm]	1031; 1231; 1324
⌀ without protective cover D1, mm [mm]	1500
⌀ with protective cover D2, mm [mm]	1516
Track width in direction of transport [b] [mm]	1040; 640; 800
Length in direction of transport [lT] [mm]	1040; 640; 800
Delivery information	Optional: Protective covers assembled; Ready-to-install incl. supports
Preferred values [mm]	1040; 640; 800
Rotary movement time	180°: 7; 270°: 10; 90°: 4
Weight [kg]	0
