LIFT TRANSFER UNIT HQ 2/U-H

Name: LIFT TRANSFER UNIT HQ 2/U-H
Brand: Bosch Rexroth
SKU: 3842998750

MPN: 3842998750 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lift transverse units TS 2plus
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842998750 be shipped?

3842998750 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842998750 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842998750 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842998750, subject to availability and destination.

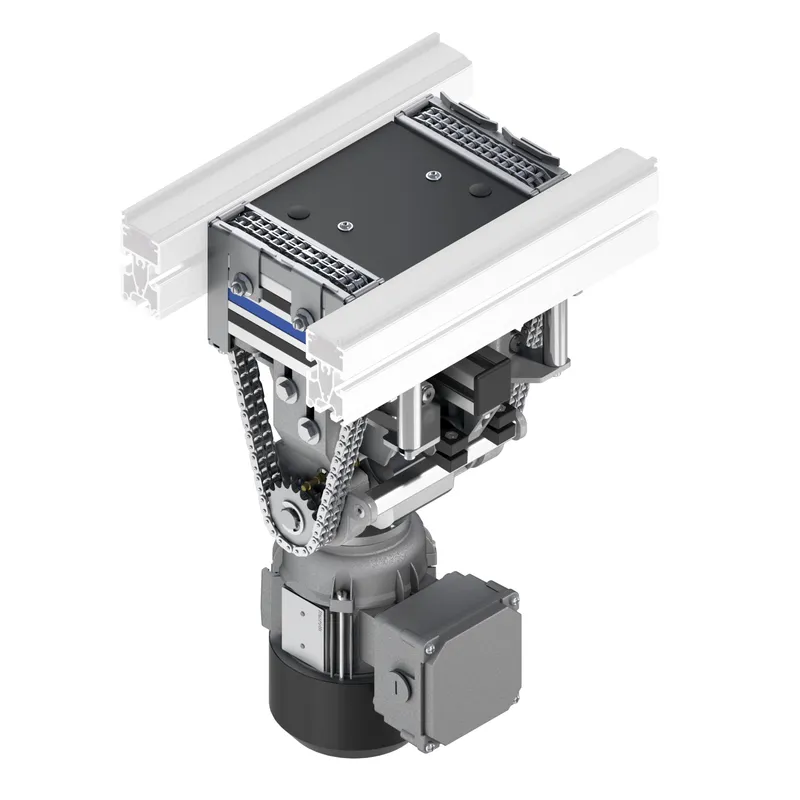

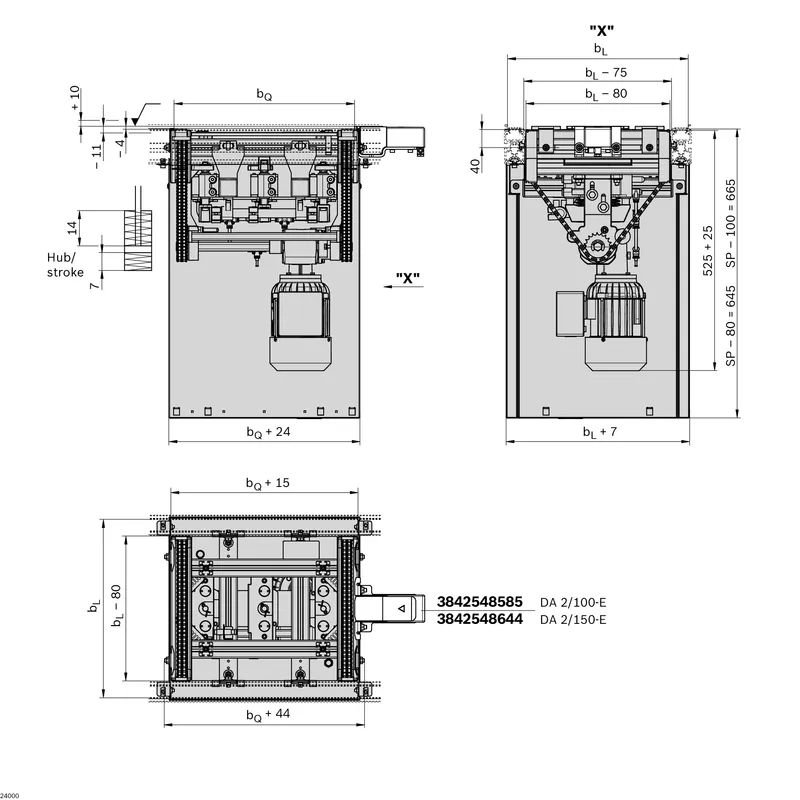

HQ 2/U-H Lift Transverse Unit Lift transverse unit for feeding out of a from longitudinal section into a transverse section and vice versa Use for high total weights up to 2 kg/cm on the smallest side of the workpiece pallet Sensor mounting for speed control during infeeding possible Lifting movements through two to four block cylinders depending on size Conveyor medium: Duplex chain (suitable for use in an EPA) Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm The lateral guides can be mounted on either the left or the right depending on the conveying situation Can be combined with WT 2, WT 2/F, WT 2/H and WT 2/F-H

Specifications

ESD	Yes
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Combination options bQ x bL	240 x 240; 320; 400; 320 x 240; 320; 400; 480; 400 x 240; 400 x 320; 400; 480; 640; 480 x 320; 400; 480 x 480; 640; 640 x 400; 640 x 480; 640; BG 1; BG 2; BG 3
Nominal speed [vN]	12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	128
Number of lifting cylinders	BG 1: 2; BG 2: 3; BG 3: 4
Scope of delivery	Assembly kit for electrical position inquiry; Incl. fastening material; Pneumatic equipment for two or three positions; Protective housing
Delivery information	Pre-assembled incl. pneumatic equipment; Protective housing, not assembled
Notice	Pneumatic equipment PN = 2: Upper and middle lift position; Pneumatic equipment PN = 3: Upper, middle and lower lift position
Preferred values [mm]	240; 320; 400; 480; 640
Conveyor medium	Duplex chain (suitable for use in an EPA)
Required accessories	1x M12x1 sensor with rated sensing range S for each (top/bottom) position inquiry<sub>N</sub> = 4 mm; Adapter plate (available on request) required to mount a VA 2/D-130 perpendicular to the main direction of transport
Recommended accessories	Dampers DA 2/150-E, DA 2/100-E for outfeeding of the workpiece pallets WT 2, WT 2/F, WT 2/H or WT 2/F-H; required for v<sub>N</sub> > 9 m/min or total weight of workpiece pallet > 30 kg/cm; Rocker WI 2/…, WI/M and dampers DA 2/100-C for infieeding of the workpiece pallets WT 2 and WT 2/F
Weight [kg]	0
