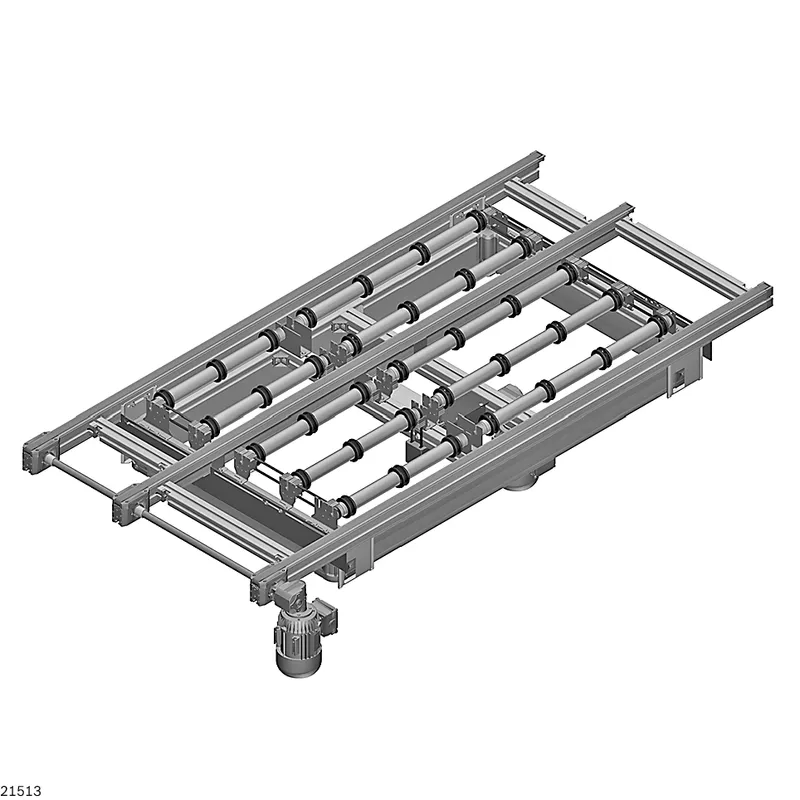

LIFT TRANSFER UNIT LTS/F-3

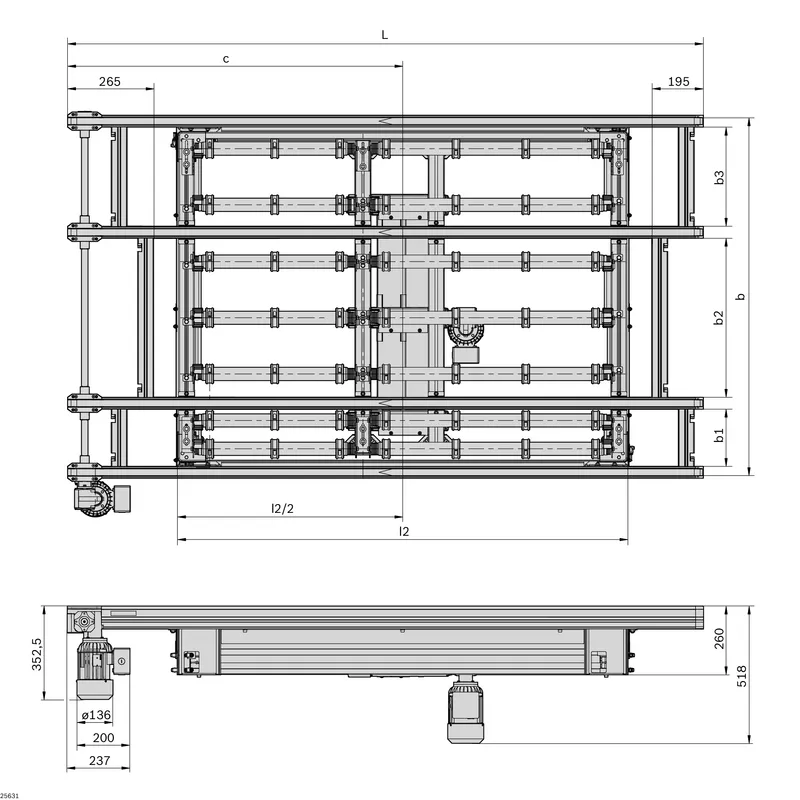

Lift transverse unit LTS/F-3 Lift transverse unit LTS/…, consisting of a belt section CSS/… and a lift unit for setting up right-angled section branches Version with two to four tracks. Distance between the tracks can be determined individually (b1 to b3). Comply with minimum dimensions Permissible load:<br>‒ Per track: max. 0.15 kg/cm support surface length and<br> max. 40 kg for LTS/F,<br>max. 60 kg for LTS/B <br>‒ Per belt section: max. 120 kg O-rings for high friction coefficients and improved static friction for transverse conveyor Tracks without lateral guide Reversible across the entire value range Simple exchange of the toothed belts Gear motors are suitable for operation with frequency converter Motor mounting on right (MA = R) or left (MA = L) possible on each track of the belt section (MS = 1 ... 4; MS = 1 denotes the left track in the direction of transport) Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K) Two lift positions
