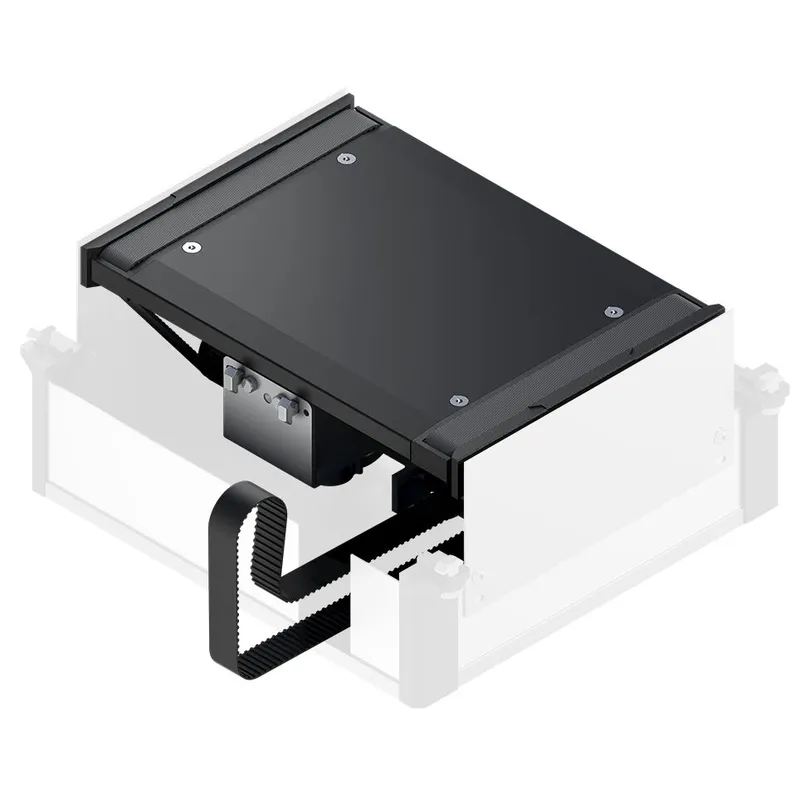

LIFT TRANSFER UNIT HQ 2/O

Lift Transverse Unit HQ 2/O Lift transverse unit without own drive for feeding out from a longitudinal section into a transverse section with a roller section and vice versa Driven by toothed belt coupling The low height is suitable for the operation of double-deck conveyor sections Suitable for use in special designs Vertical movement is delivered by pneumatic cylinders. There are two sizes available for total weights (workpiece pallet + load) of up to 30 kg: Size 1 (BG 1) with 1 pneumatic cylinder. Size 2 (BG 2) with 2 pneumatic cylinders for workpiece pallet dimensions from 400 x 480 mm Conveyor medium: Toothed belt (suitable for use in an EPA) Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm Can be combined with WT 2 and WT 2/F
