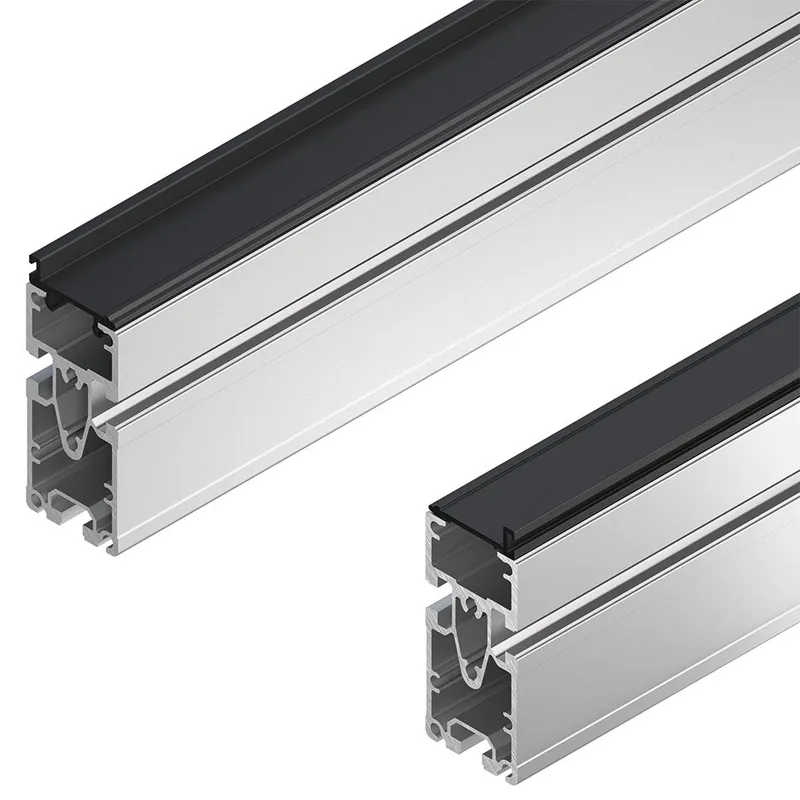

CONVEYOR SECTION ST 2/B-100
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Components of belt and toothed belt conveyor units |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842994927 be shipped?
3842994927 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842994927 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842994927 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842994927, subject to availability and destination.

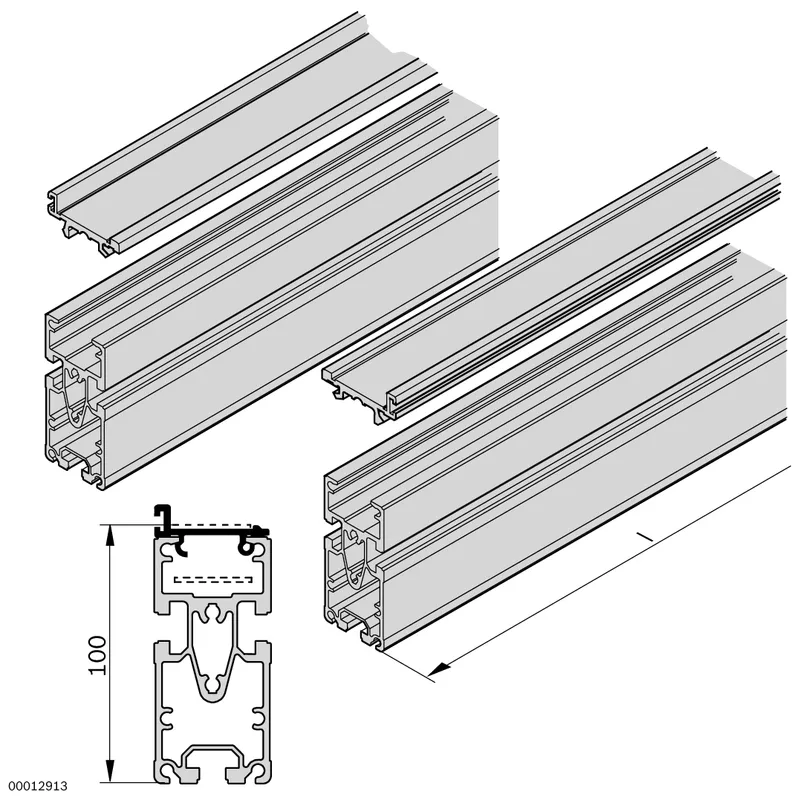

The section is used for self-assembly of conveyor units in conjunction with the drive module AS 2/B-... and the return unit UM 2/B For conveyor unit self-assembly Easy insertion of the guide profile into the section profile Easily replaceable if worn out Conveyor medium: Belt (suitable for use in an EPA) Can be combined with workpiece pallet WT 2/LS Can be combined with scraper
Specifications
Specifications
| ESD | Yes |
| Length max [L max] [mm] | 6000 |
| Length min [L min] [mm] | 60 |
| Dry room [%rF] | <1 |

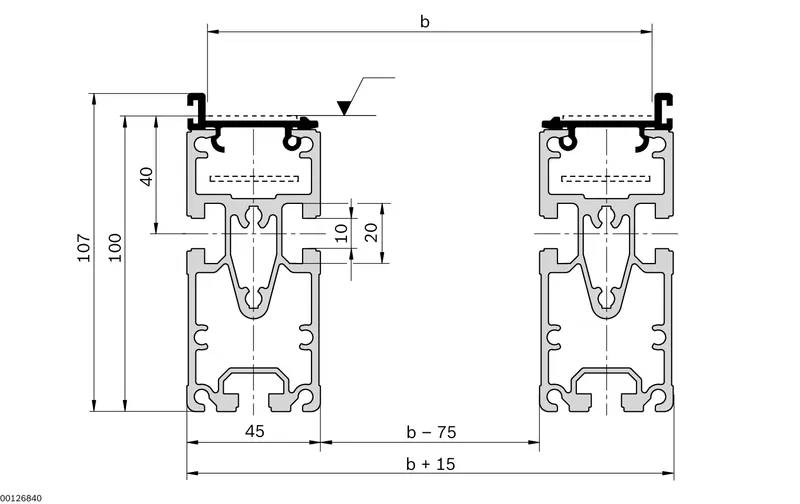

| Conveying level height [b] [mm] | 100 |
| Scope of delivery | 2x FP 2/B guide profile; 2x SP 2/B-100 section profile |
| Delivery information | Not assembled |
| Material information | Guide profile: Polyamide; Section profile: Aluminum, anodized |
| Clean room classification | ISO class 7 |
| Conveyor medium | Belt (suitable for use in an EPA) |
| Recommended accessories | Cross Connector; Profile connector; Section supports SZ 2/... |
| Weight [kg] | 0 |
