PROTECTION FRAME V VARIABLE DF
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EcoSafe protective frame |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842994246 be shipped?
3842994246 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842994246 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842994246 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842994246, subject to availability and destination.

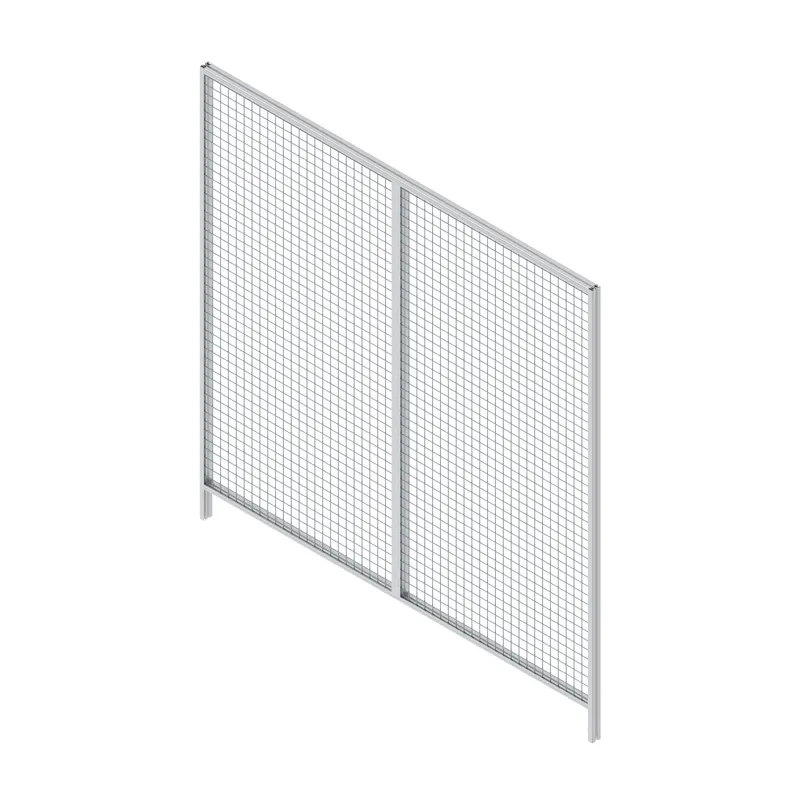

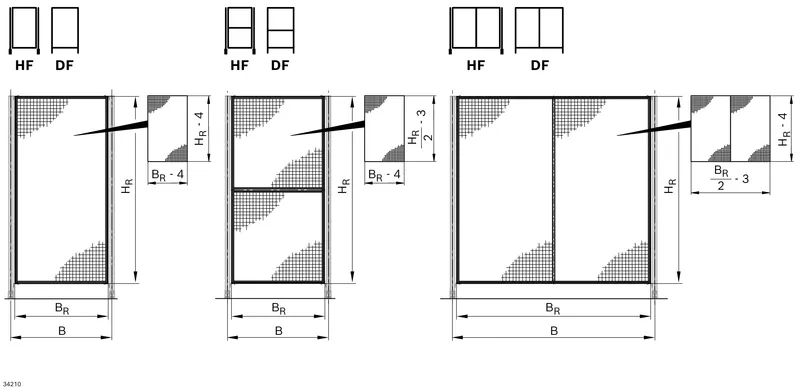

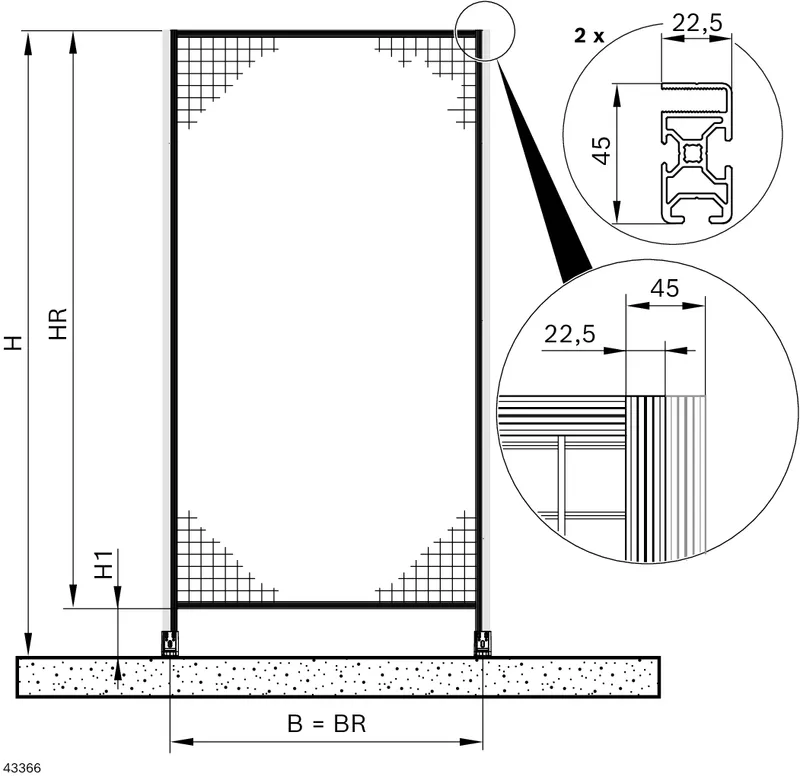

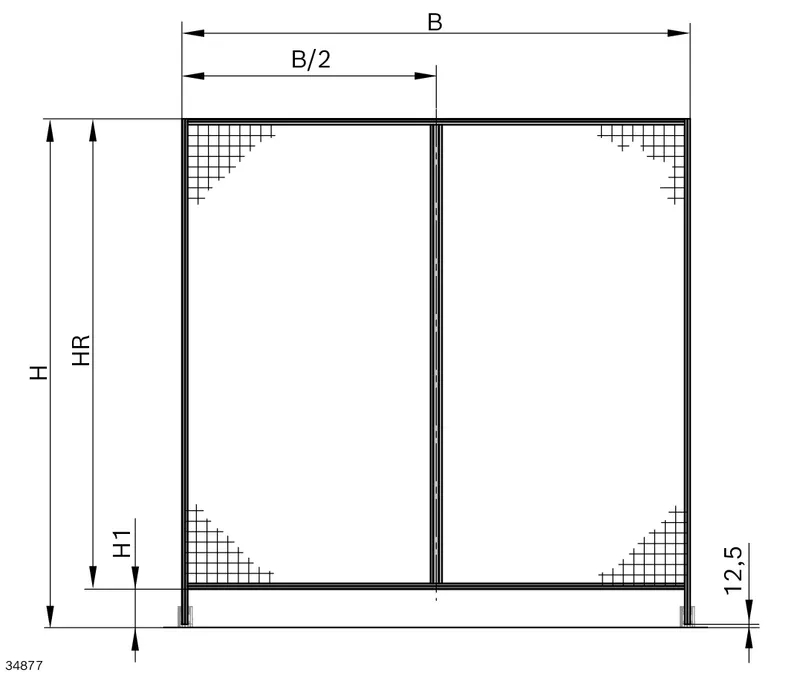

Direct field, vertical sections configurable Protective frame made of frame profile 22.5x45 with spot-weld wire grille 40x40x3.8 for direct fields Protective frame completely mounted Individual dimensions and colors (galvanized, yellow, black) configurable Vertically divided protective frames provide additional stability for large surfaces Color-coated grilles improve visual contrast in the protected area and facilitate recognition of access routes and emergency exit routes Modular dimension "B" relates to leg sets 22.5x45 (outer dimension) Easy installation via the foot. Single fitter is sufficient
Specifications
Specifications
| ESD | No |
| Protective frame height max [HR max] [mm] | 2500 |
| Protective frame height min [HR min] [mm] | 400 |
| Protective frame width max [B max] [mm] | 2500 |
| Protective frame width min [B min] [mm] | 500 |
| Scope of delivery | Protective frame |
| Delivery information | Fully assembled |
| Material information | Fastening material: Steel, galvanized grille: Steel, galvanized or powder-coated; Frame: Aluminum, anodized |
| Grille color [FA] | hot-galvanized, black, yellow |
| Type | Direct field |
| Type - frame profile | 22.5x45; 45x45 |
| Weight [kg] | 0 |
