BELT SECTION BS 2/M-2

Name: BELT SECTION BS 2/M-2
Brand: Bosch Rexroth
SKU: 3842994164

MPN: 3842994164 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Belt and toothed belt for belt section
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842994164 be shipped?

3842994164 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842994164 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842994164 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842994164, subject to availability and destination.

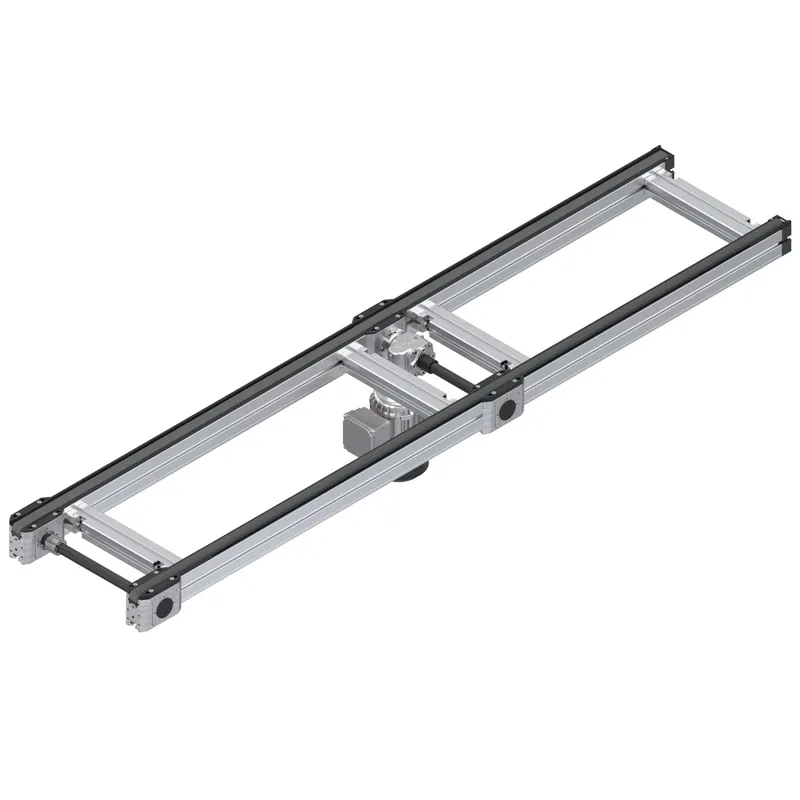

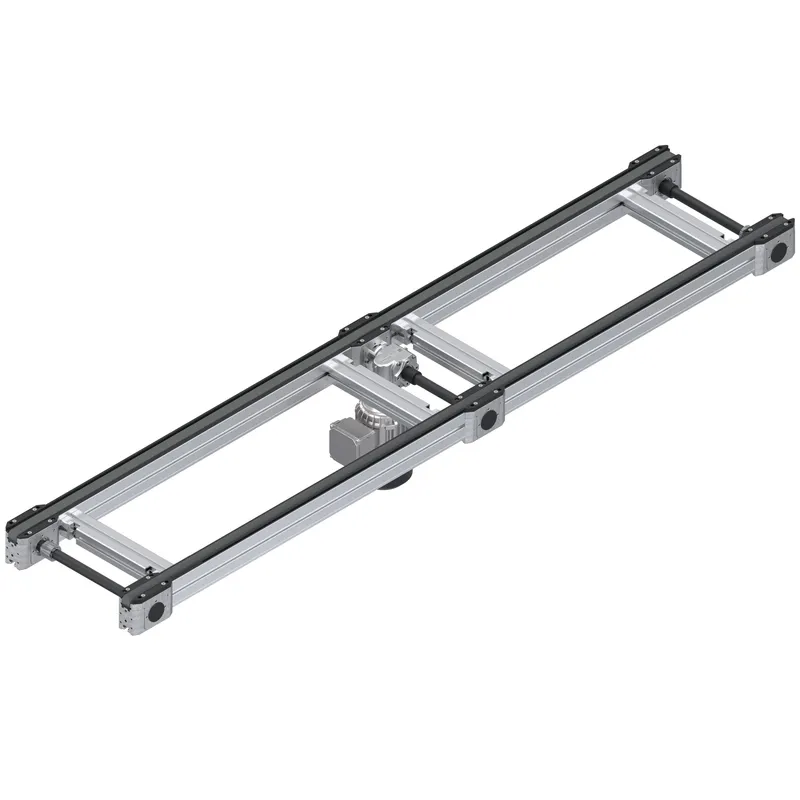

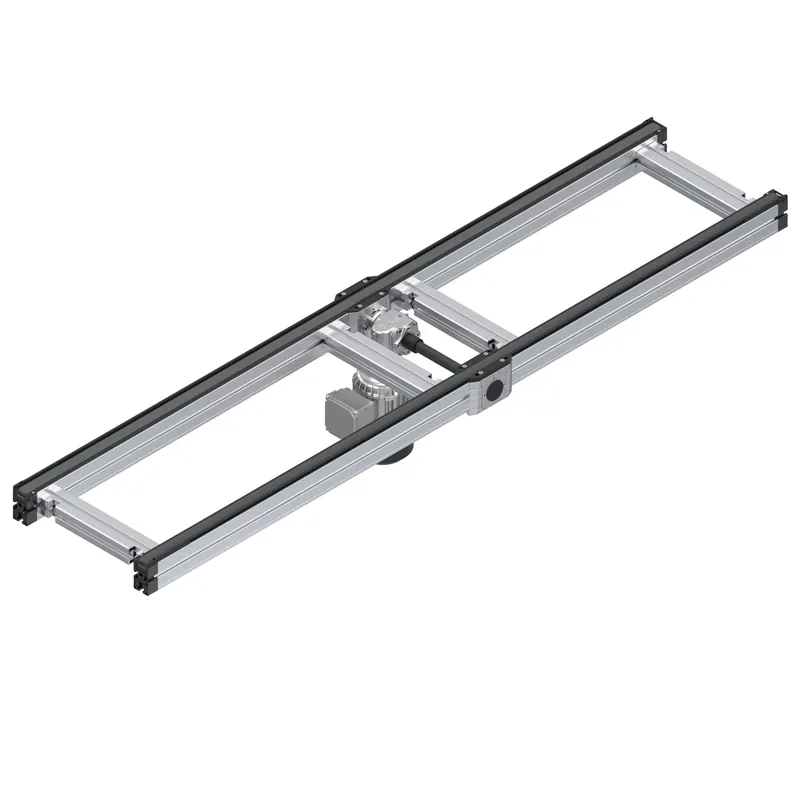

Ready for operation conveyor section with own drive The belt section is a conveyor section that is ready for operation with own drive for the transportation of workpiece pallets It is suitable for all installation situations in which the motor cannot be fitted to the end of the belt section The return units can be inserted at both ends of the belt section, allowing a greater variety of applications With 1 or 2 large return heads, the new modular unit BS 2/M-2 can now also be used to drive a KE 2/O or HQ 2/O In addition, there is the option of whether or not a hexagonal shaft is integrated Drive position freely selectable in longitudinal direction Suitable for mounting situations where large return heads or drive heads are required BS 2 is suitable and recommended for workpiece pallets WT 2 and WT 2/LS in the longitudinal conveyor Can be combined with WT 2, WT 2/E, WT 2/LS and WT 2/F with wear pad PA Special models on request

Specifications

Condition on delivery	Assembled
ESD	Yes
Length max [l max] [mm]	6000
Length min [L min] [mm]	312
Length [L1]	UM = 0; 1; 2; 3: 90...5770 mm; UM = 4; 5; 6: 190...5770 mm
Dry room [%rF]	<1
Track width in direction of transport [b max] [mm]	1200
Track width in direction of transport [b min] [mm]	160
Section load in accumulation operation [kg]	60
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min

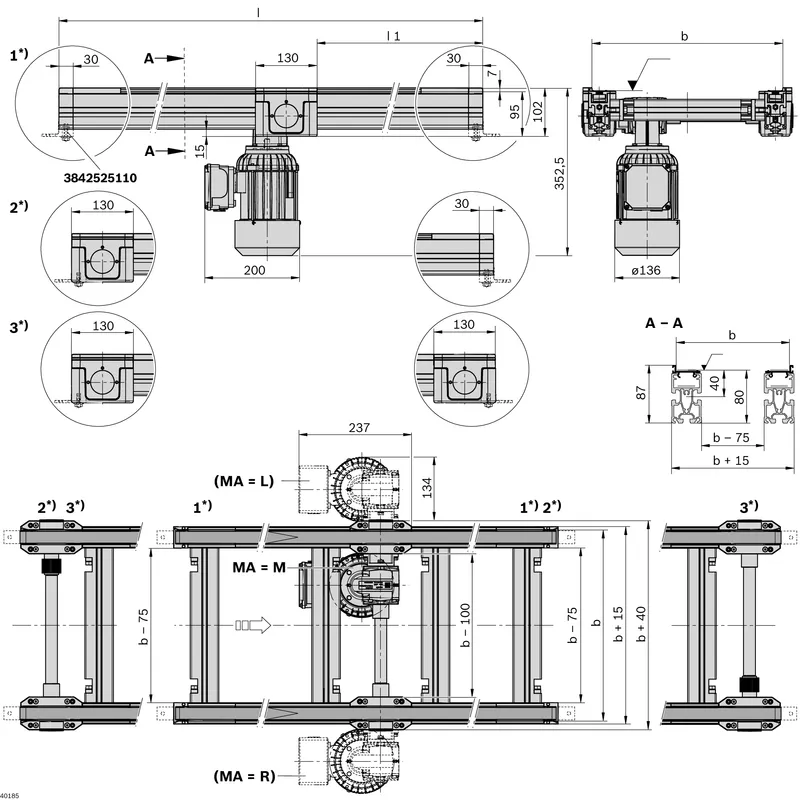

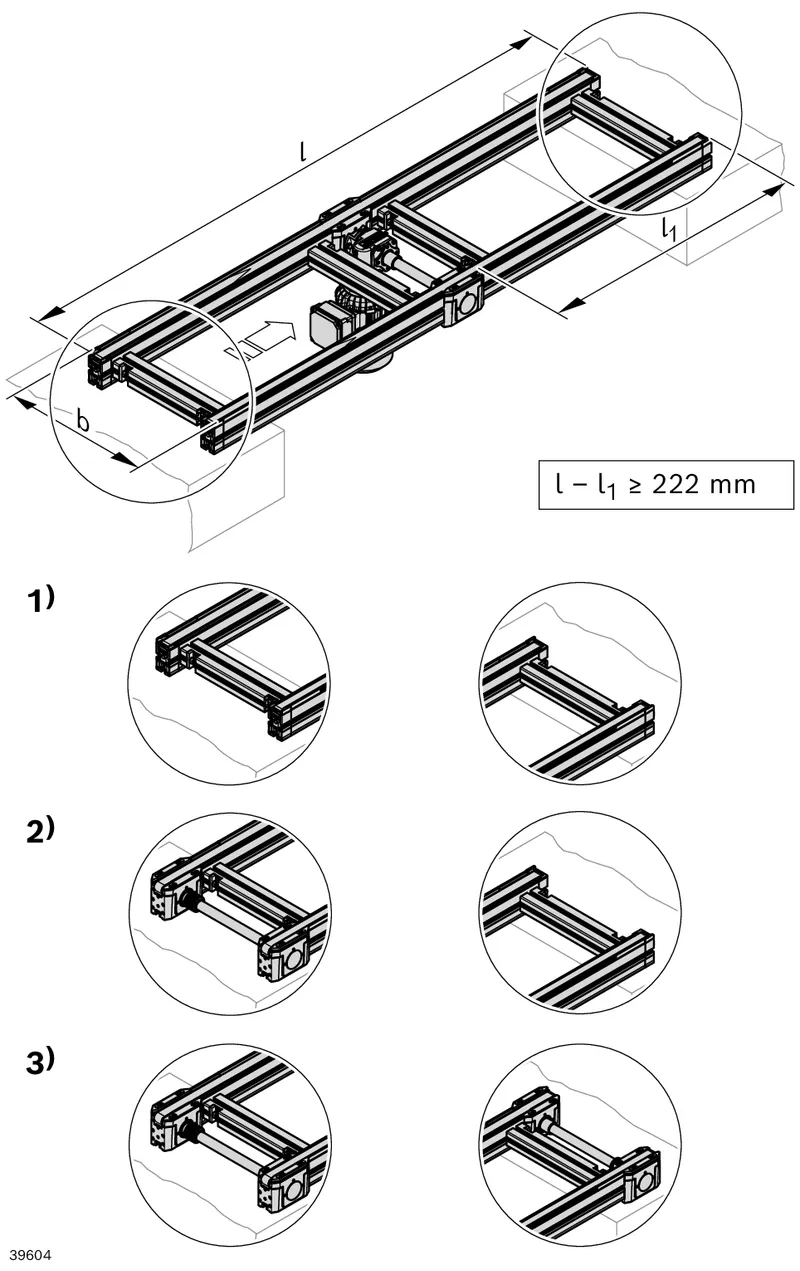

Length [l]	UM = 0: 312...6000 mm (l is rounded in accordance with the toothed belt pitch l - l1 ≥ 222 mm); UM = 1; 2; 3: 410...6000 mm (l is rounded in accordance with the toothed belt pitch l - l1 ≥ 222 mm); UM = 4; 5; 6: 510...6000 mm (l is rounded in accordance with the toothed belt pitch l - l1 ≥ 222 mm)
Preferred values [mm]	1040; 1200; 160; 240; 320; 400; 480; 640; 800
Material information	Glide profile: PA; Guide profile: PA; Section profile: Aluminum, natural; anodized
Clean room classification	ISO class 7
Return unit [UM]	0 = Beidseitig kleiner Umlenkkopf; 1 = Einseitig großer Umlenkkopf in Fahrtrichtung am Beginn der Strecke ohne Antriebswelle; 2 = Einseitig großer Umlenkkopf in Fahrtrichtung am Beginn der Strecke mit Anbindung an KE 2/O; 3 = Einseitig großer Umlenkkopf in Fahrtrichtung am Beginn der Strecke mit Anbindung an HQ 2/O; 4 = Beidseitig großer Umlenkkopf ohne Antriebswelle; 5 = Beidseitig großer Umlenkkopf mit Anbindung an KE 2/O; 6 = Beidseitig großer Umlenkkopf mit Anbindung an HQ 2/O
Conveyor medium	Toothed belt (suitable for use in an EPA)
Recommended accessories	Connection kit; Leg sets ST 2/...
Weight [kg]	0
