FRAME PROFILE 30X30 WG40

Name: FRAME PROFILE 30X30 WG40
Brand: Bosch Rexroth
SKU: 3842992972

MPN: 3842992972 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Protective grille profile WG40
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842992972 be shipped?

3842992972 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842992972 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842992972 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842992972, subject to availability and destination.

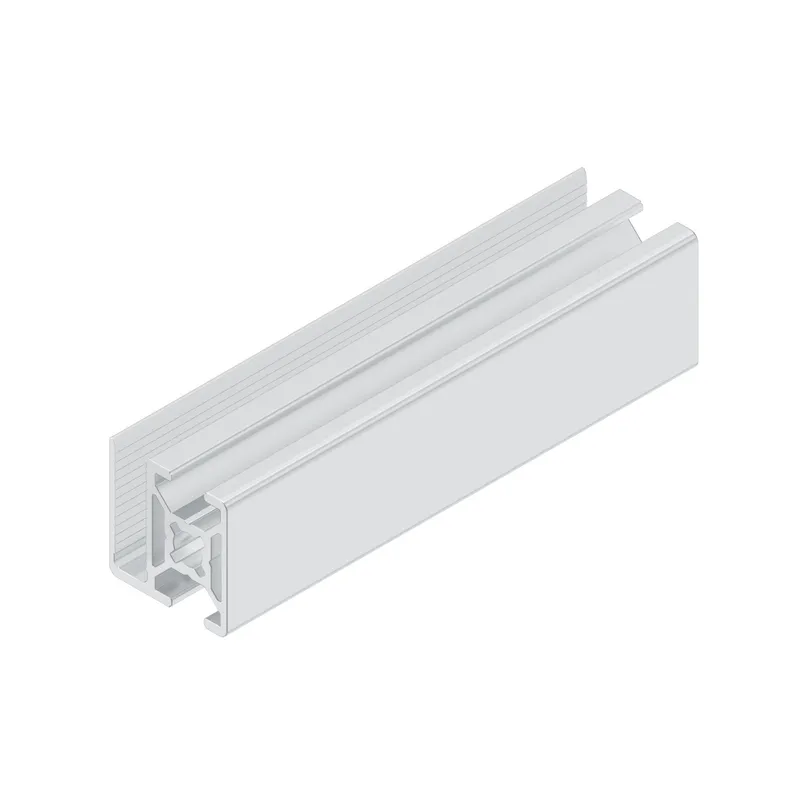

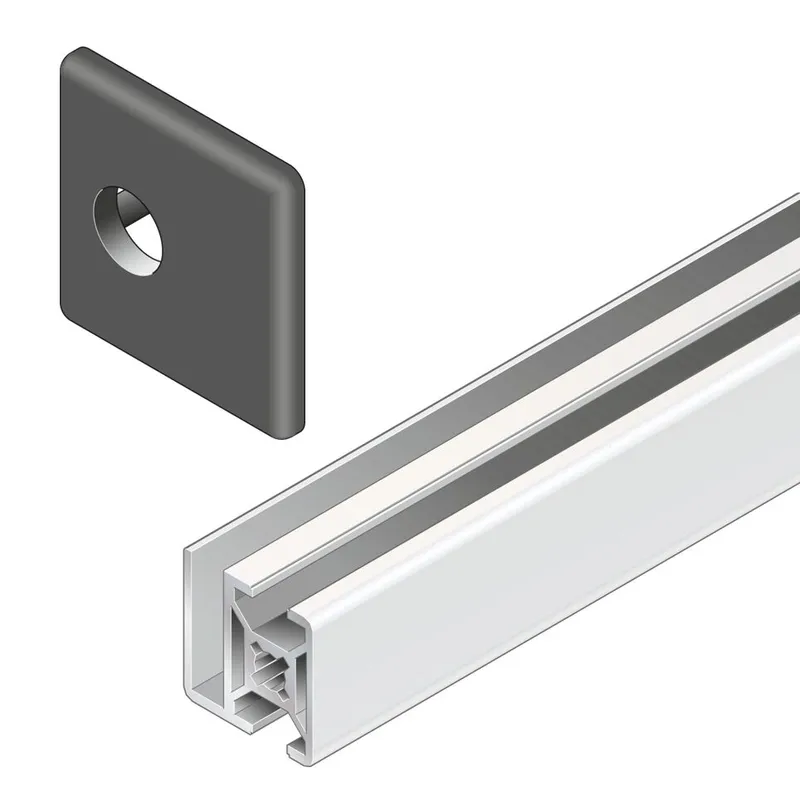

Protective grille profile 30x30 WG40, individual profile finishes For the low-cost construction of protective equipment with woven wire grilles WG40 Fastening of woven wire grilles: directly in the special profile slot Fastening of surface elements: in the special profile slot using spring clamping elements (accessories) The profiles are connected using a central bolt (profile machining required)

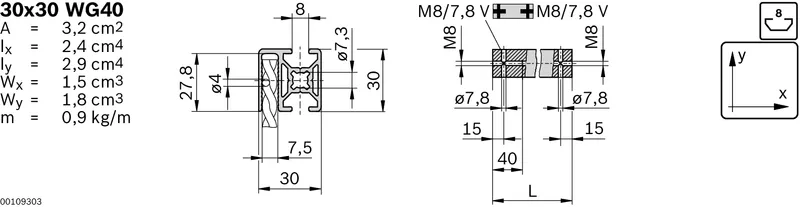

Specifications

Condition on delivery	Variable length
Profile slot	8
Delivery unit	1
Length max [L max] [mm]	6070
Length min [L min] [mm]	100
Packaging unit	1
Mass [m] [kg]	0.9
Area moment of inertia in x-direction [lx] [cm⁴]	2.4
Area moment of inertia in y-direction [ly] [cm⁴]	2.9
Profile surface [A] [cm²]	3.2
Moment of resistance in the x-direction [Wx] [cm³]	1.5
Moment of resistance in the y-direction [Wy] [cm³]	1.8
Material	Aluminum, anodized
Required accessories	Central bolt; Spring clamping elements; Woven wire grille
Weight [kg]	0
