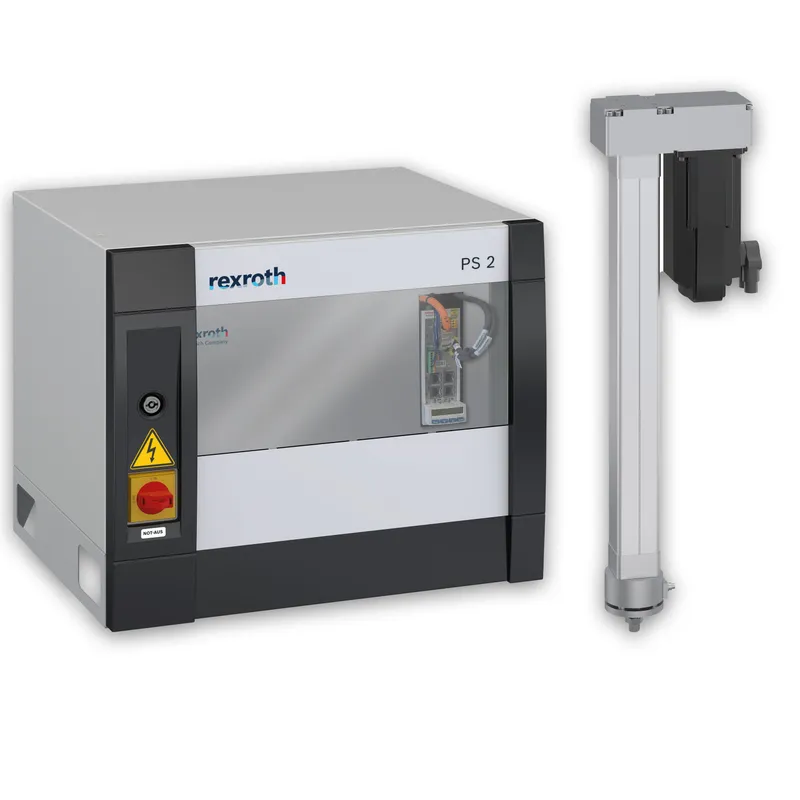

PRESS MODULE PS2/P/5/S-1L

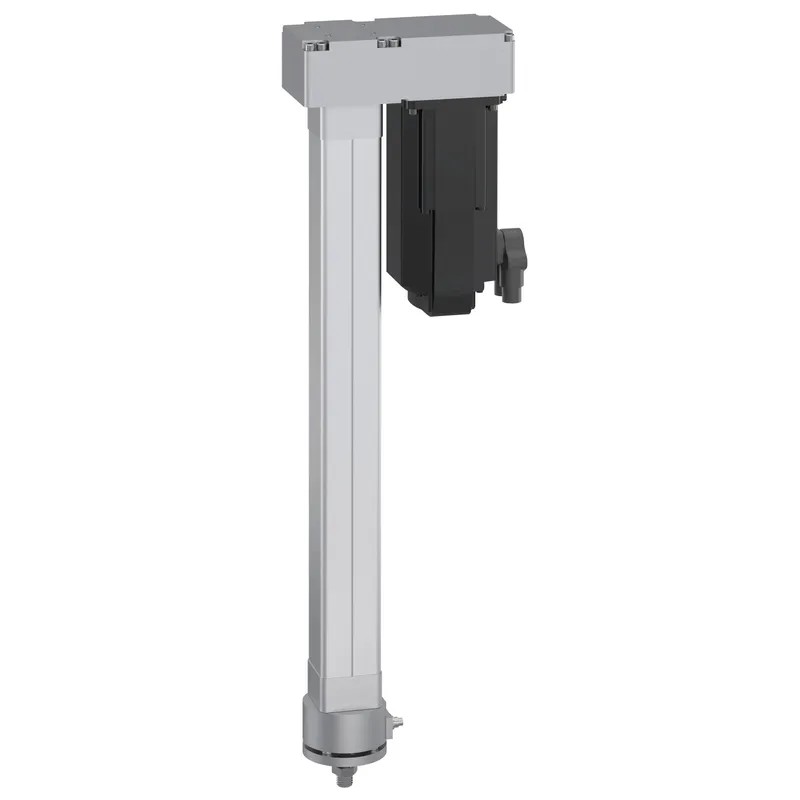

With the press-fit systems, Bosch Rexroth offers a simple, fast and efficient package solution for a wide range of applications with pressing and joining functions.<br>The press-fit systems are made up of proven Bosch Rexroth components – optimally coordinated, fully wired, including plug-in preparation for safety technology and a browser-based software interface for the simplest commissioning and operation.<br>The press-fit systems can be used as a stand-alone solution or installed in higher-level systems via fieldbus. Length of connection cable 5m Working range 0.2 … 2.0 kN Stroke 400 mm Press spindle with motor, gearbox and force sensor All system components fully wired in the system box Force sensor installed on the cylinder, not on the piston rod (no movement) System box (converter, safety zone module, PR21) System box (converter, safety zone module, PR21) Fieldbus interface: Profinet, Ethernet/IP, EtherCAT, Sercos III Data interface REST API , OPC-UA Safety device hardware, e.g. two-hand buttons, not included in the scope of delivery Motor with holding brake Safety function according to EN 61800-5-2<br>Safe Torque Off (STO), category 4, performance level e according to EN 13849-1 and SIL 3 according to EN 62061
