LIFT MODULE F1000 LIFT410 B120
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Height-adjustable workstation components |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842567939 be shipped?
3842567939 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842567939 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842567939 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842567939, subject to availability and destination.

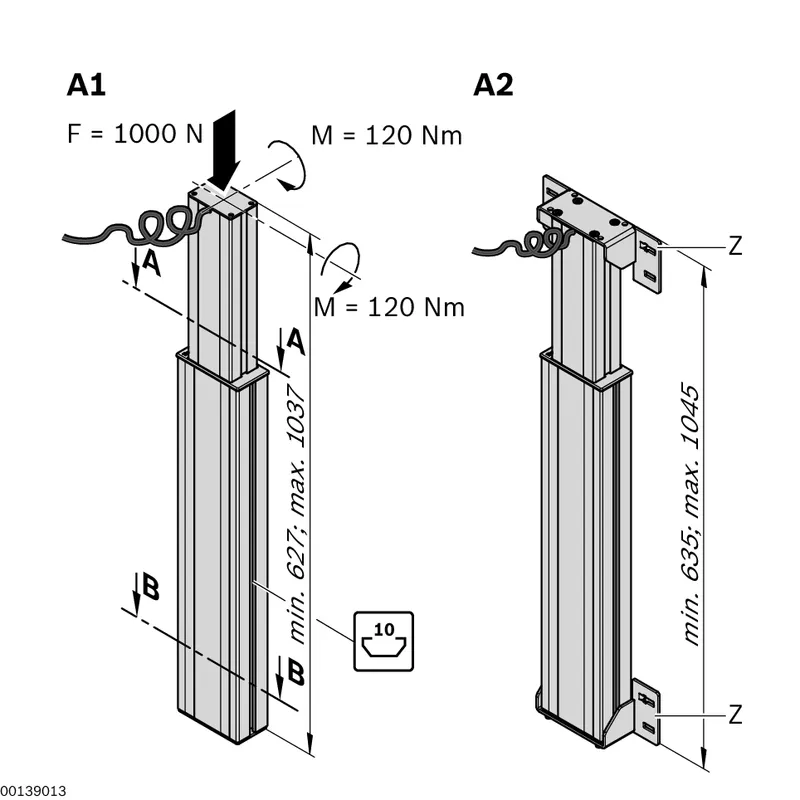

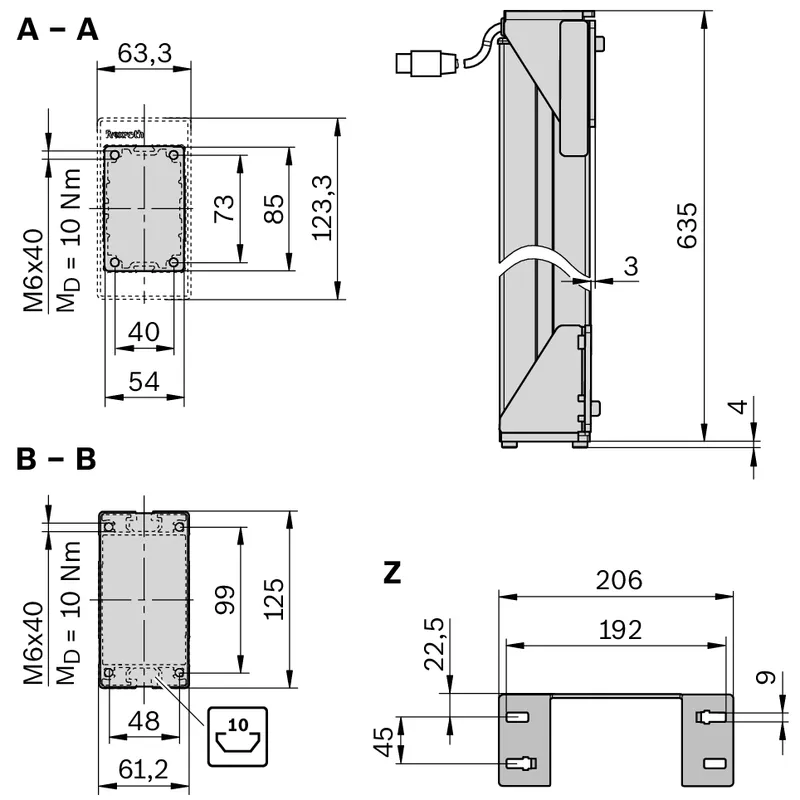

This column is offered as bulk pack. For this purpose, the control 3 842 567 940 and the interference suppression kit Ferrite 3 842 567 965 are required Notice: According to DIN EN 60204-1 Safety of machinery - Electrical equipment of machines - Part 1: General requirements - 15.1 Sockets for accessories, the following applies: If the machinery or its associated equipment is equipped with outlets intended for accessories (e.g. hand-held power-operated tools, test equipment), the following shall apply:[...]- circuits supplying outlets with a rated current not exceeding 20 A shall be additionally protected by a residual current device (RCD) with a rated differential current of ≤ 30 mA. Lifting module is mounted in height-adjustable workstation Lifting module is mounted on the side of the profile mounting using the mounting bracket (modular dimension 45 mm)
Specifications
Specifications
| ESD | Yes |
| Delivery unit | 40 |
| Compression load [Fmax] [N] | 1000 |
| Tensile load [Fmax] [N] | 500 |
| Maximum load version [Fmax] [N] | 1000 |
| Speed | 25 |
| Tilting torque [Mx] [Nm] | 125 |
| Tilting torque [My] [Nm] | 30 |
| Force [Fmax] [N] | 1000.0 |
| Scope of delivery | Cable length: ~ 2 m; Incl. attachment bracket for lateral profile attachment; Incl. connection cable |
| Length [L] | 410.0 |
| Recommended accessories | Mounting bracket for socket strip 3 842 654 321 |
| Weight [kg] | 8.7 |
