PROTECTION FRAME H 1850X2000 994245
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EcoSafe protective frame |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842567910 be shipped?
3842567910 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842567910 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842567910 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842567910, subject to availability and destination.

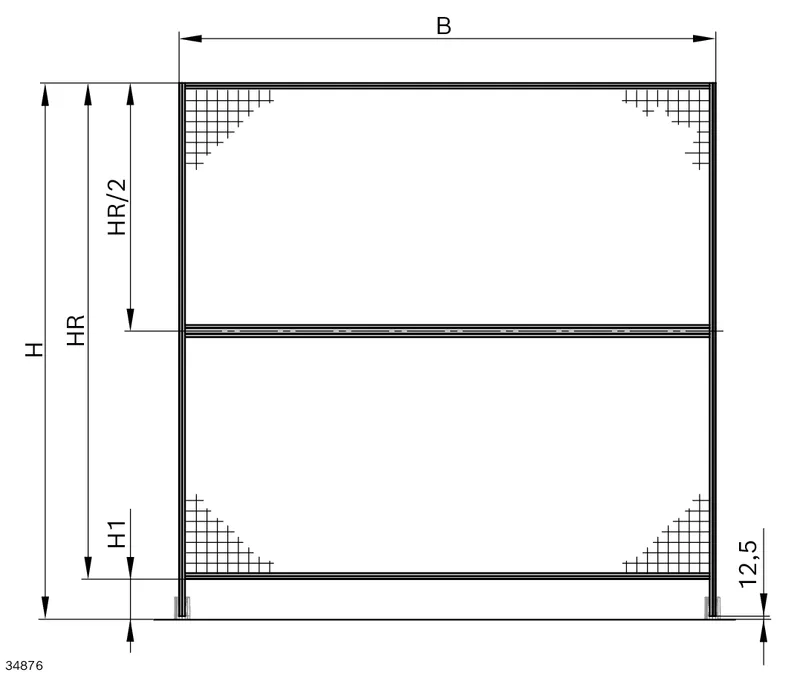

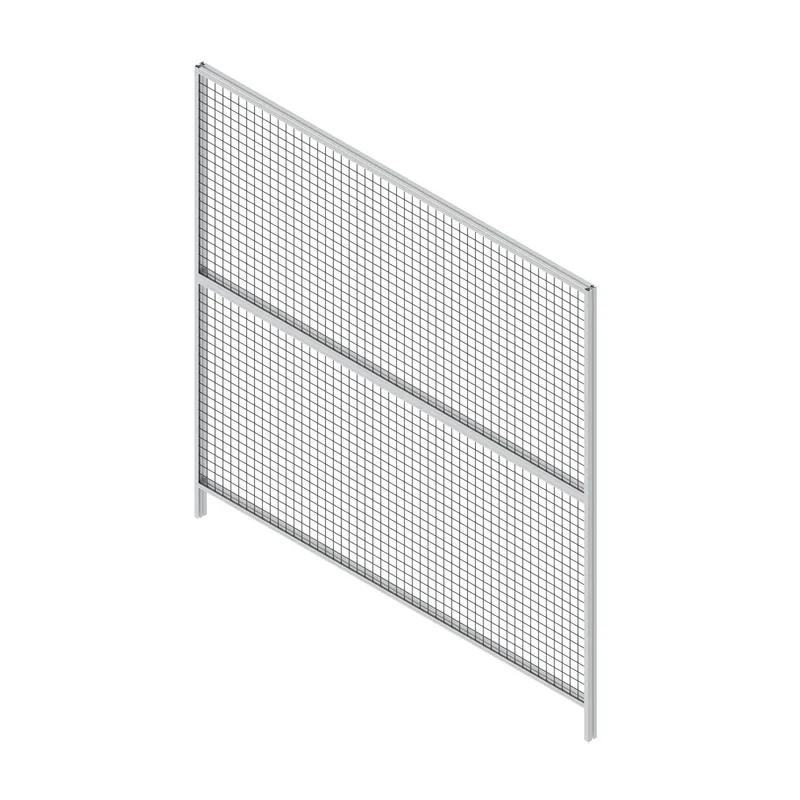

Direct field, horizontal sections 2000x2000 grille galvanized Protective frame made of frame profile 22.5x45 with spot-weld wire grille 40x40x3.8 for direct fields Protective frame completely mounted Standard dimension for safety fence with H=2000 mm with 150 mm ground clearance Horizontally divided protective frames provide additional stability for large surfaces Modular dimension "B" relates to leg sets 22.5x45 (outer dimension) Easy installation via the foot. Single fitter is sufficient
Specifications
Specifications
| ESD | No |
| Scope of delivery | Protective frame |
| Delivery information | Fully assembled |
| Height of protective frame [HR] [mm] | 1850 |
| Width of protective frame [B] [mm] | 2000 |
| Material information | Frame: Aluminum, anodized; Grille and fastening material: Steel, galvanized |
| Grille color [FA] | galvanized |
| Type | Direct field |
| Type - frame profile | 22.5x45; 45x45 |
| Weight [kg] | 27.28 |
