SECTION PROFILE SP 2/R-H 12X6070MM
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Components of the accumulation roller chain conveyor units |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842564311 be shipped?
3842564311 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842564311 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842564311 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842564311, subject to availability and destination.

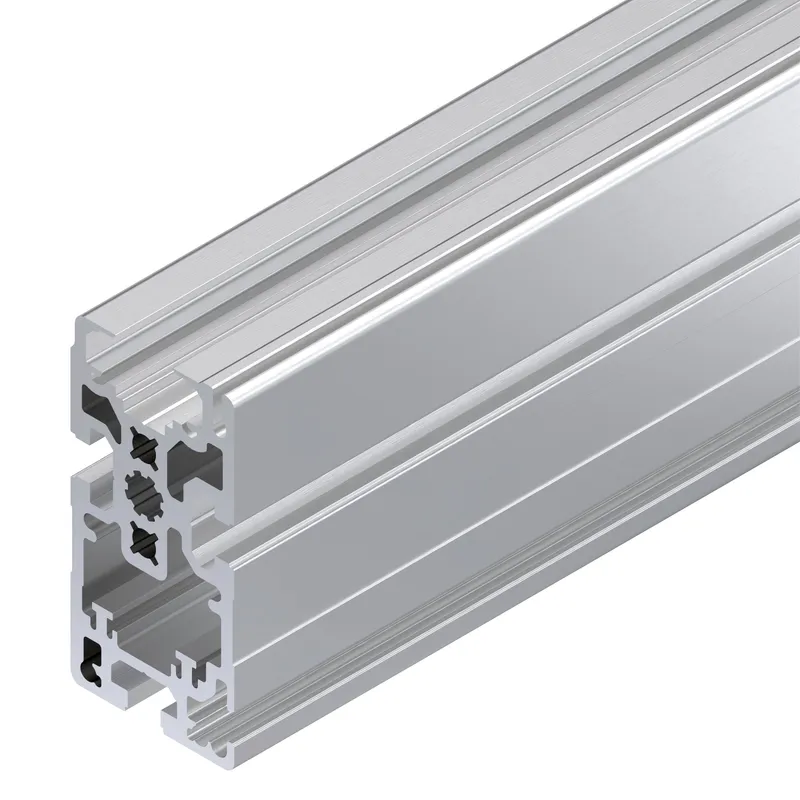

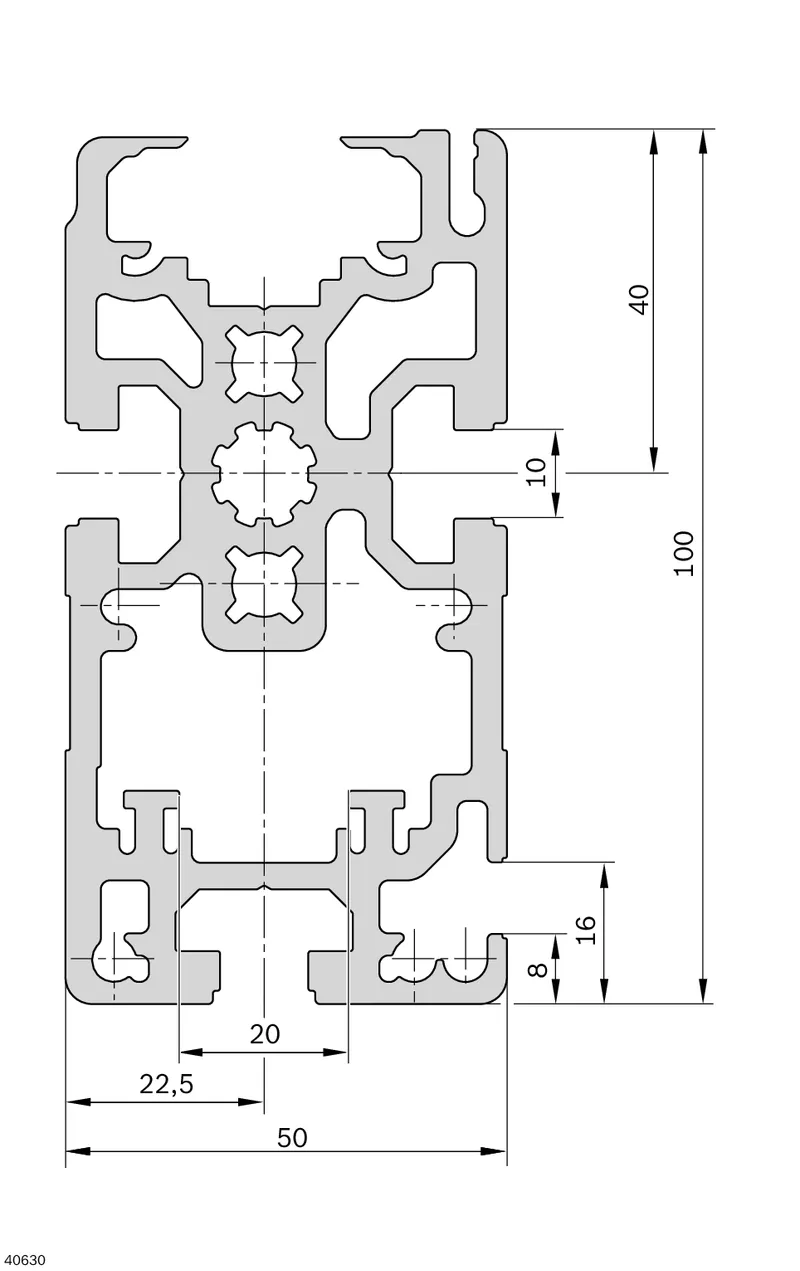

The section profile is used for constructing conveyor units with 100 mm construction height and with the accumulation roller chain and guide profile conveyor media For conveyor unit self-assembly for higher section loads in the 100 mm construction height For use with all drive modules AS 2/R-..., return units UM 2/R-..., guide profiles FP 2/H-ST, glide profiles GP 2/H-... and section profiles SP 2/R Longitudinal grooves for easy mounting Extruded aluminum profile with an especially sturdy design Integrated cable duct at the profile base
Specifications
Specifications
| Profile slot | 10 |
| Delivery unit | 12 |
| Mass [m] [kg] | 5.26 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 158.76 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 51.11 |
| Profile surface [A] [cm²] | 19.13 |
| Moment of resistance in the x-direction [Wx] [cm³] | 50.39 |
| Moment of resistance in the y-direction [Wy] [cm³] | 25.58 |
| Length [L] | 6070.0 |
| Material | Aluminum, anodized |

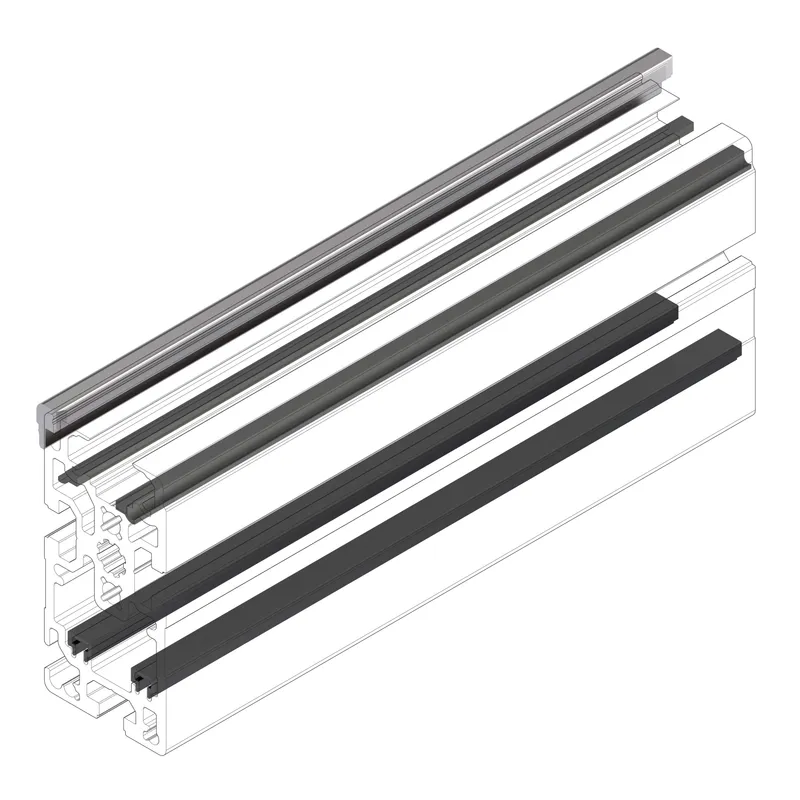

| Required accessories | Adapter plate kit ST 2/R-H; Cover rail for cable duct; Glide profile GP 2/H-ST and GP 2/H-KS; Guide profile FP 2/H-ST |
| Weight [kg] | 389.5 |
