CASTER WHEEL D125 F ESD PATH
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Roller, clean room |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842562055 be shipped?
3842562055 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842562055 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842562055 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842562055, subject to availability and destination.

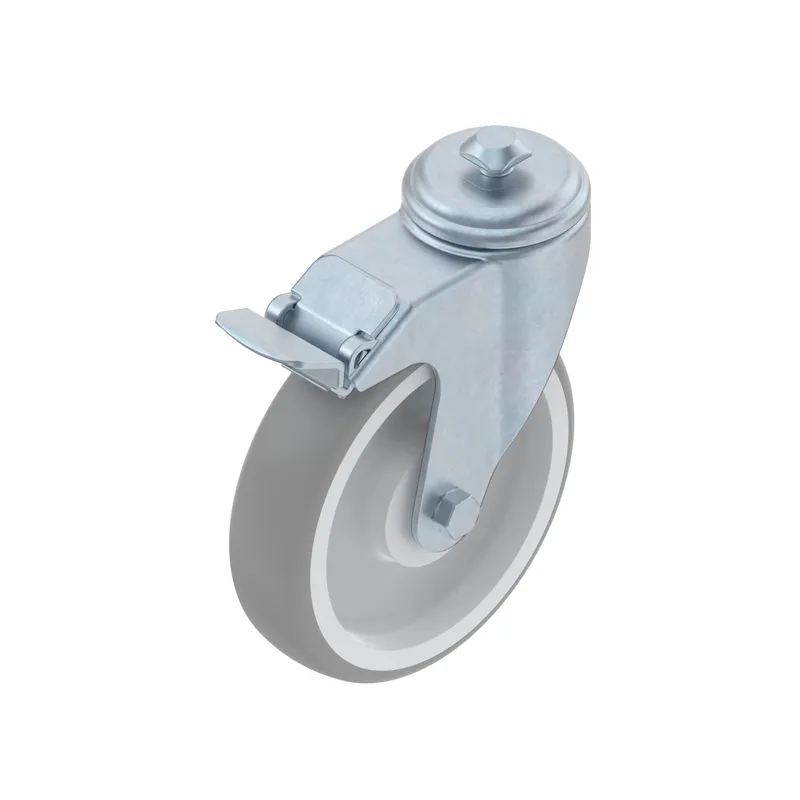

Castor wheel D125 F ESD Path Suitable for use in clean rooms. Conductive material version in accordance with DIN EN 61340-5-1; conduction resistance 10<sup>3</sup> up to 10<sup>8</sup> Ω Suitable for ESD-sensitive areas. Conductive material version in accordance with DIN EN 61340-5-1; conduction resistance ≤ 10<sup>6</sup> Ω Versatile range of uses Wheels with excellent running properties All wheels mounted in the profile slot or central hole (accessories required) Profile finishing: thread cutting M12 in the case of assembly in central hole LR with lock: lock prevents the wheel from rolling or turning

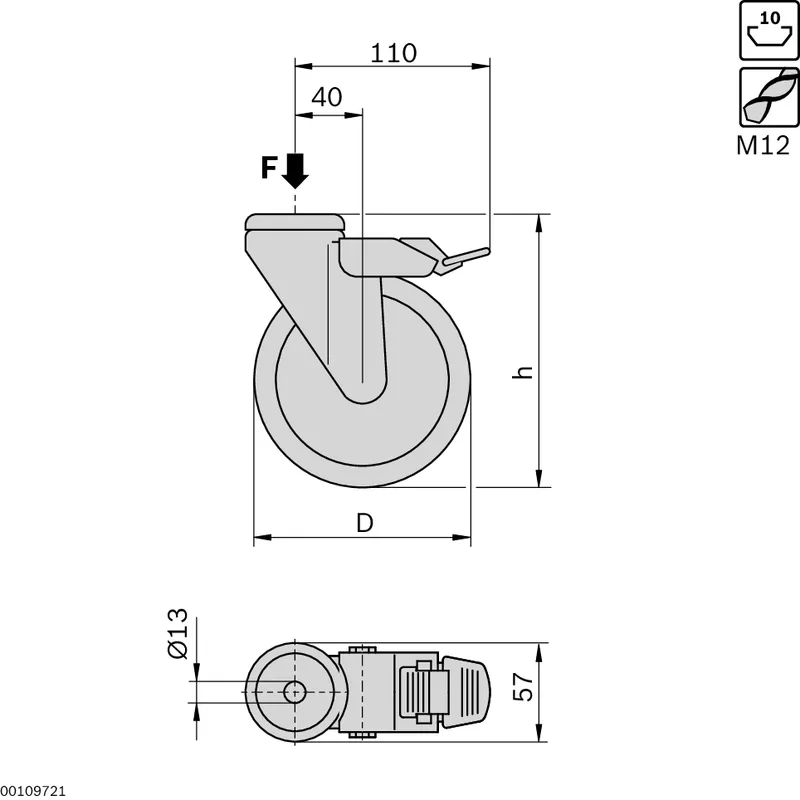

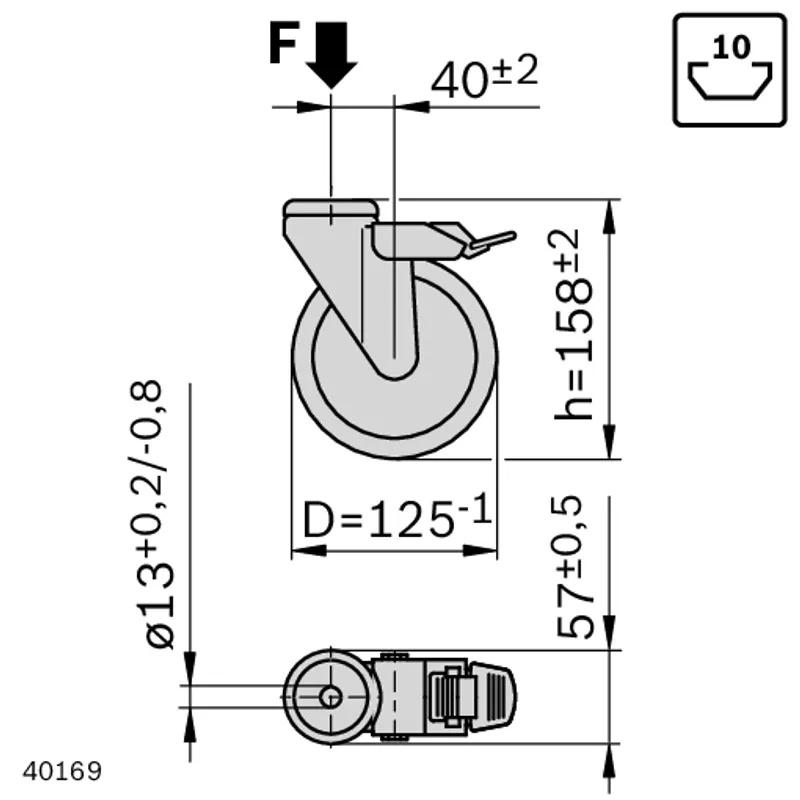

Specifications
Specifications
| Profile slot | 10 |
| ESD | Yes |
| Color | Gray |
| Diameter D [mm] | 125.0 |
| Dimension [h] [mm] | 158.0 |
| Packaging unit | 1 |
| Conduction resistance [RA] | ≤ 10⁶ Ω |
| Force F [N] | 1000.0 |
| Material information | Castor wheel: PU; Housing: Steel, chrome-plated |
| Material | PU |
| Fastening material | 1x hexagon nut DIN985 M12; 1x square screw M12x30 |
| Required accessories | Bearing ring if cover cap with hole is used; Screw M12x40 (ISO 4762) for fastening to the profile core (↻ 35 Nm) |
| Weight [kg] | 0.88 |
