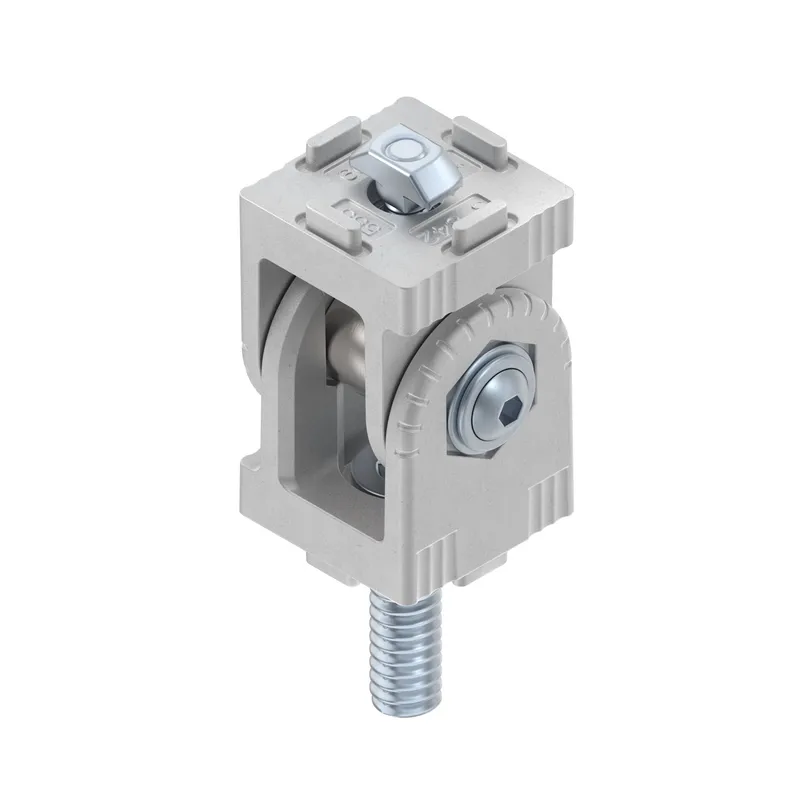

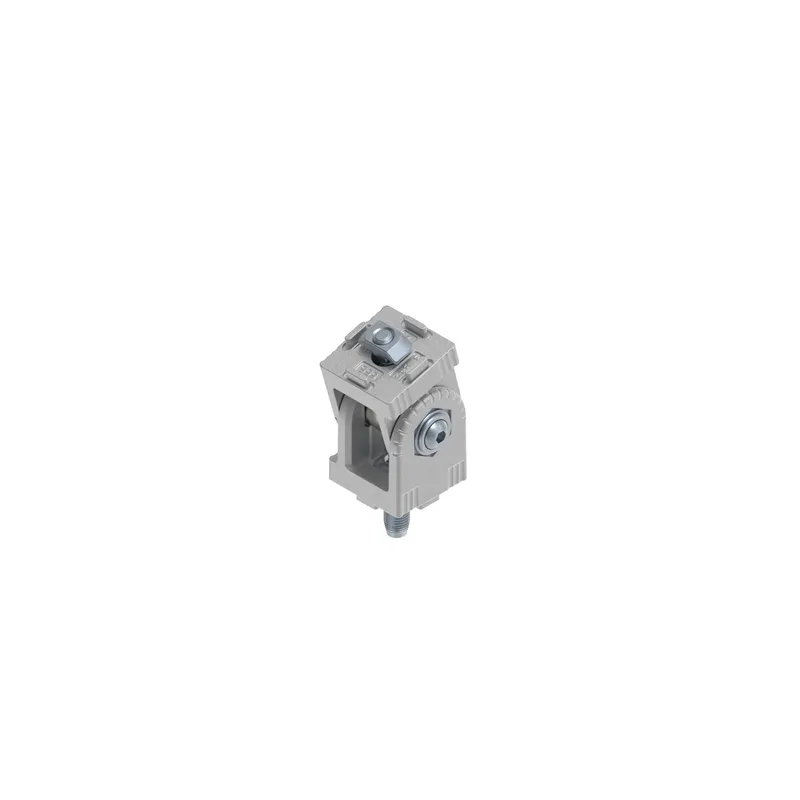

JOINT 20X20
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Joint |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842555659 be shipped?
3842555659 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842555659 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842555659 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842555659, subject to availability and destination.

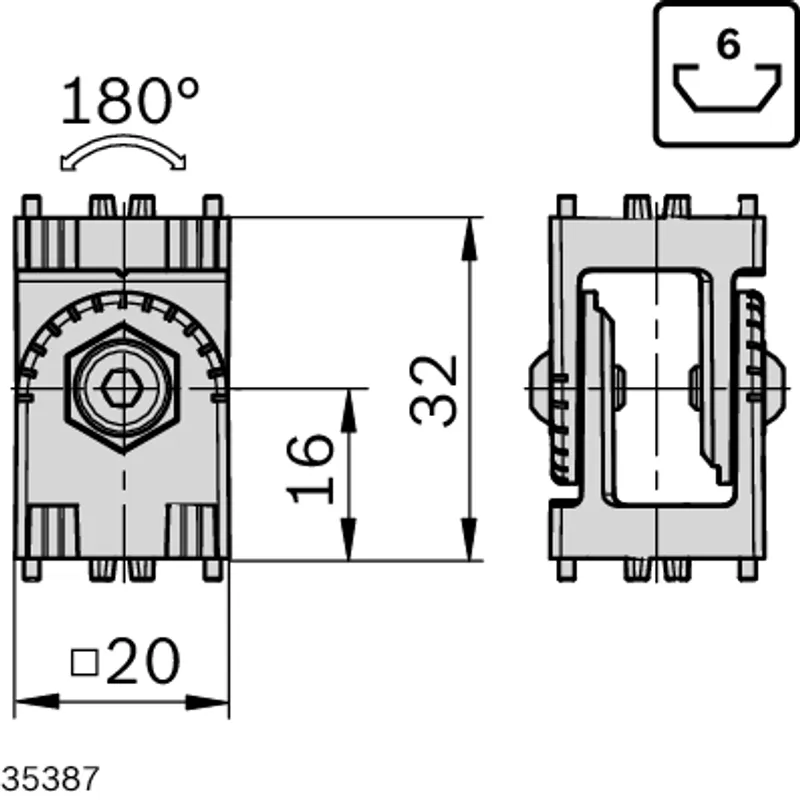

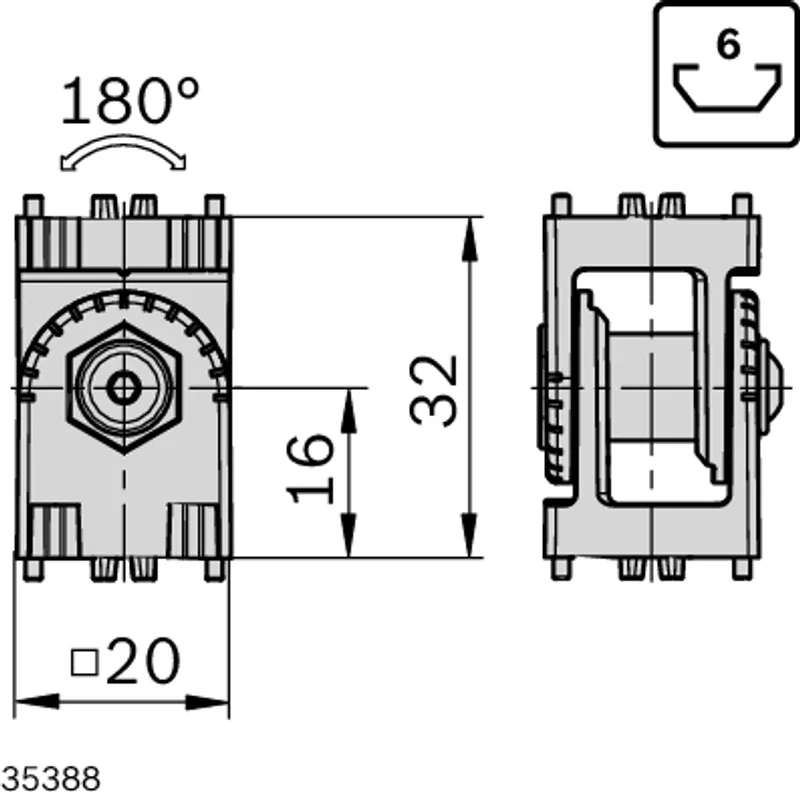

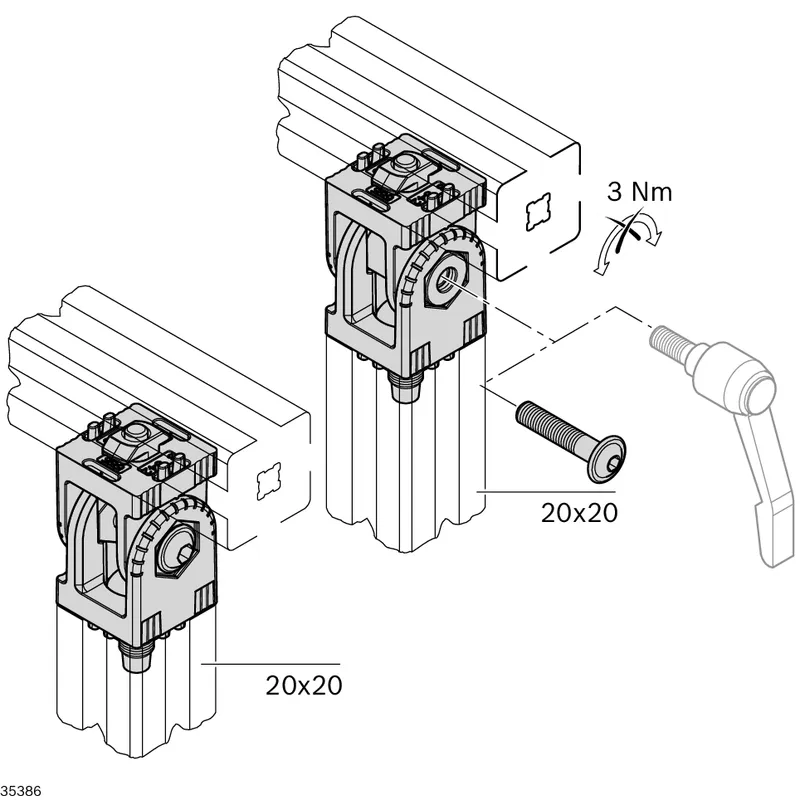

Joint 20x20 standard For movable or rigid profile connections at any angle Swivel range 180° With marking in 15° increments Clamping (3 Nm) and convenient adjustment of joint using a clamping lever (M4x20) Two different assembly versions (normal and support) available under the same order number
Specifications
Specifications
| Modular dimension [mm] | 20 |
| Profile slot | 6 |
| ESD | Yes |
| Dimensions | 20x20 |
| Swivel range [°] | 180 |
| Packaging unit | 1 |

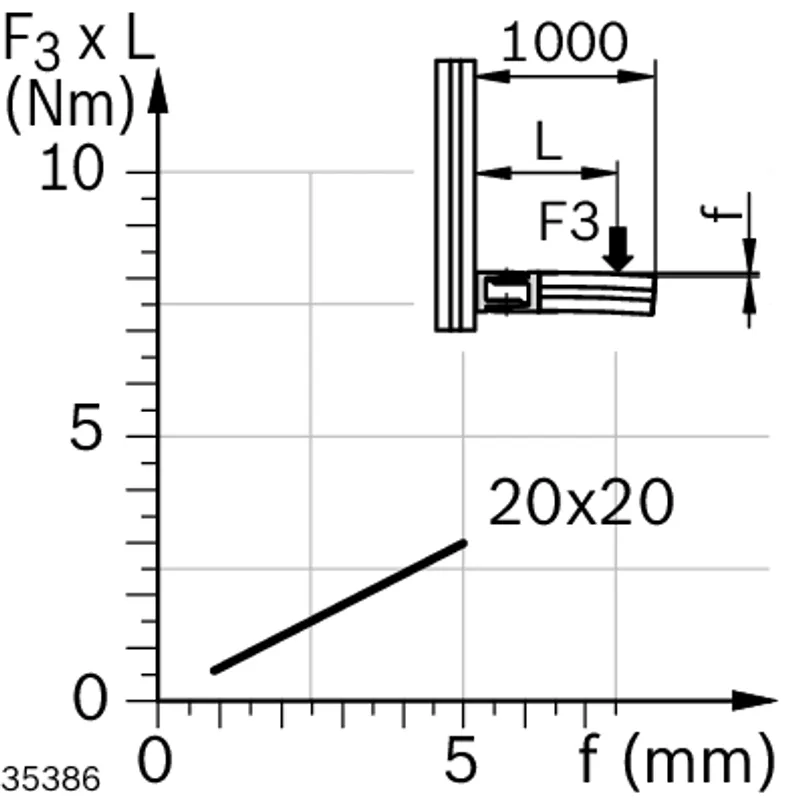

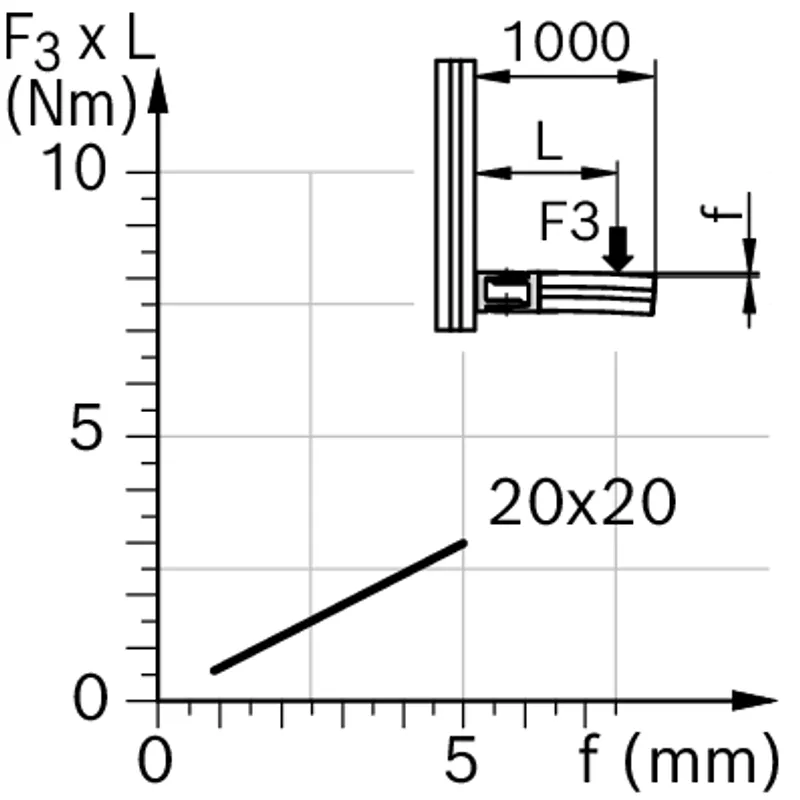

| Force F1 [N] | 3000 |
| Force F2 [N] | 300 |
| Scope of delivery | Incl. fastening material |
| Material information | Fastening material: Steel, galvanized; Joint: Diecast aluminum |
| Material | Diecast aluminum |
| Fastening material | 2x T-nut groove 6 M4; 2x flange head screw M4x6; 2x screw S6x16 |
| Weight [kg] | 0.05 |
