EARTH TERMINAL WG30 WG40 GREY
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Ground terminal |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842555582 be shipped?
3842555582 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842555582 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842555582 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842555582, subject to availability and destination.

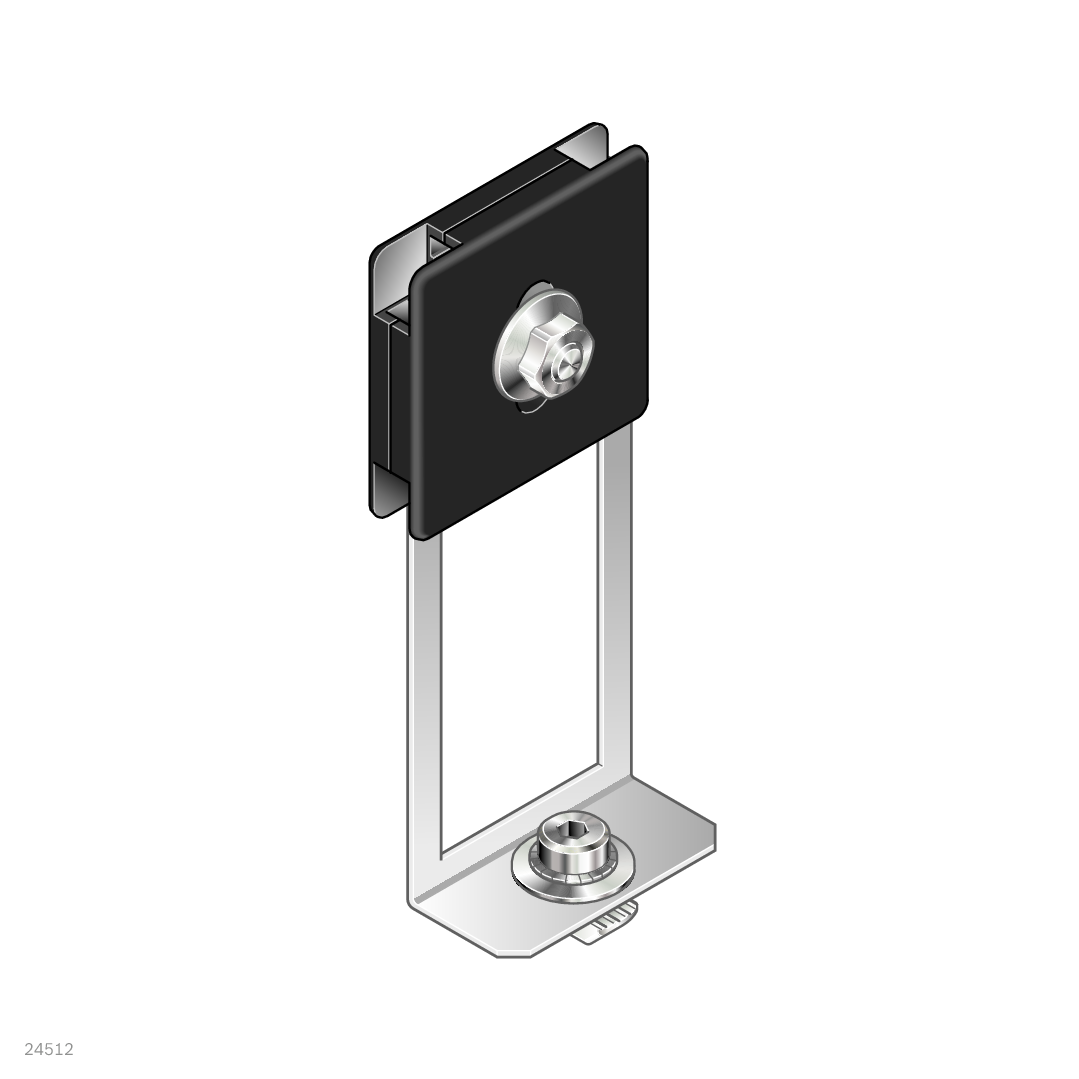

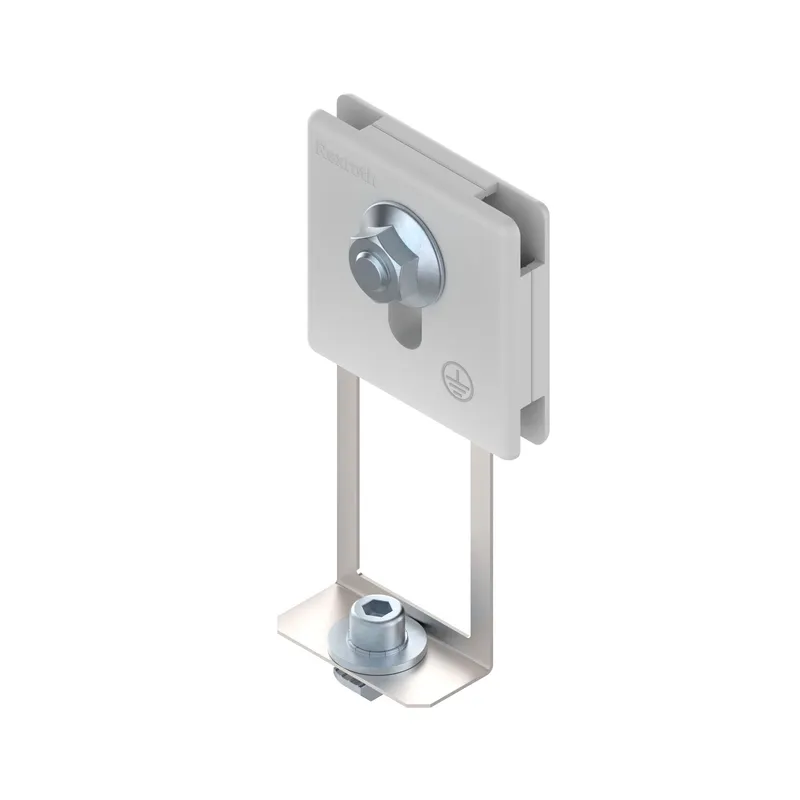

Earthing terminal For creating an electrically conductive connection between the woven wire grille and protective frame Connect the protective conductor via the ESD-conductive connection elements (e.g.<b></b>T-nut) Guarantees safe conduction of short-circuit currents up to a rated current of 63 A
Specifications
Specifications
| Profile slot | 8 |
| Packaging unit | 1 |
| Scope of delivery | Incl. fastening material |
| Material information | Fastening material: Steel, galvanized; Ground terminal: Steel, stainless |
| Material | Steel |
| Fastening material | 1x T-nut groove 8 M6; 1x cylinder head screw ISO4762-M6x10; 1x flange nut M8; 1x flattened round head screw ISO7380-1-M8x25; 1x serrated washer DIN6798-A6.4; 1x spring washer DIN128-A8; 1x washer DIN9021-A6.4; 1x washer DIN9021-A8.4 |
| Weight [kg] | 0.1 |
