DOOR LOCK COMPACT UNIFORM KEY
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Door lock |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842553639 be shipped?
3842553639 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842553639 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842553639 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842553639, subject to availability and destination.

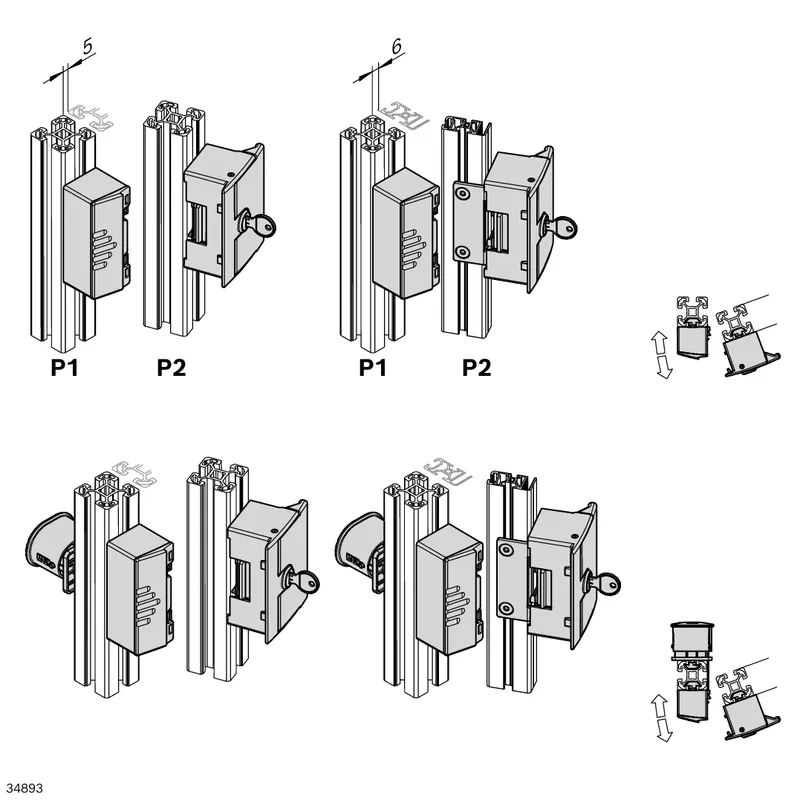

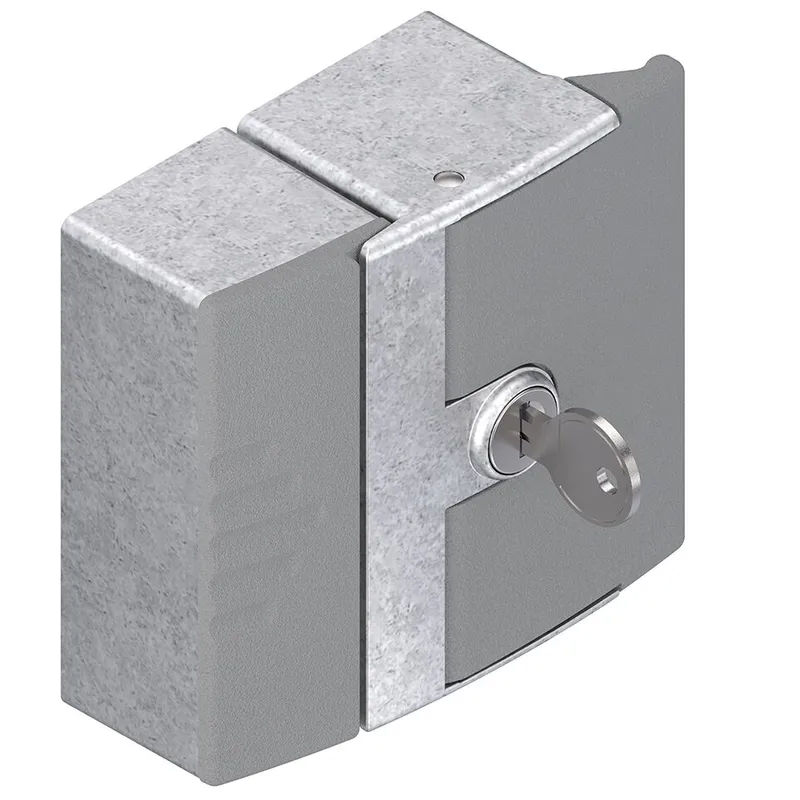

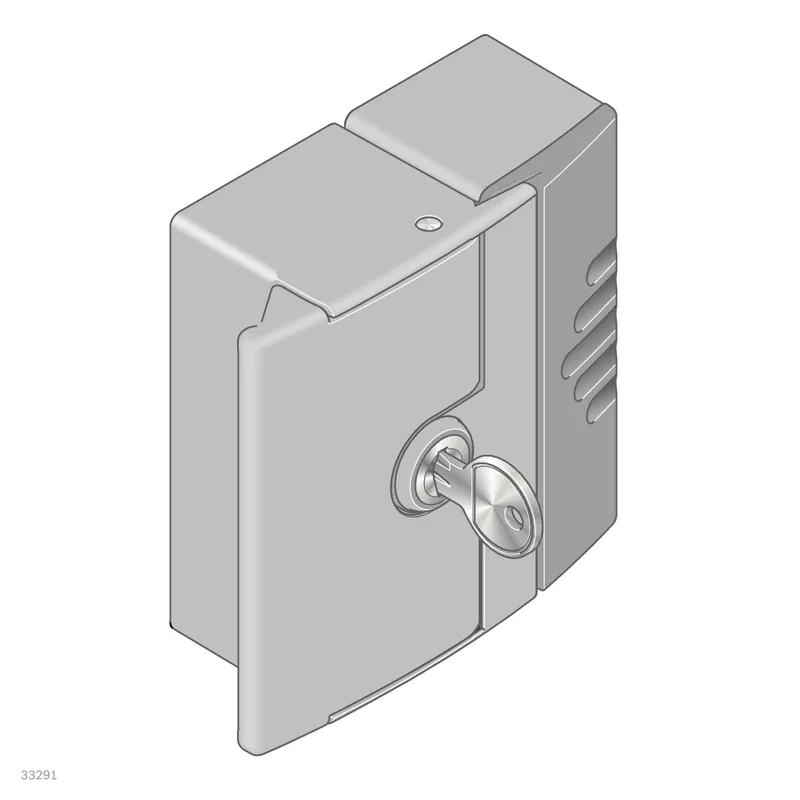

Door lock "compact" for swing doors, uniform locking Opening to the right and left Compatible with numerous profile combinations “Uniform locking” variant always has the same key Covered fastening screws Installation of an emergency opening mechanism for unlocking from inside in emergency possible (gap measurements according to assembly instructions 3 842 554 192) Without profile finishing
Specifications
Specifications
| Profile slot | 10; 8 |
| Door type | Swing door |
| Series | Compact |
| Packaging unit | 1 |
| Scope of delivery | Incl. 2 x key, fastening material (FS) |
| Material information | Cover: PP signal gray (RAL 7004); Fastening material: Steel, galvanized; Housing: Diecast aluminum |
| Material | Diecast aluminum |
| Fastening material | 2x cylinder head screw ISO4762-M6x12; 2x cylinder head screw ISO4762-M6x35; 4x T-nut 10 M6; 4x T-nut 8 M6; 4x washer ISO7089-6 |
| Recommended accessories | Adapter plate for connecting to a WG40 or WG30 woven wire grille profile; Compact emergency lock |
| Weight [kg] | 0.53 |
