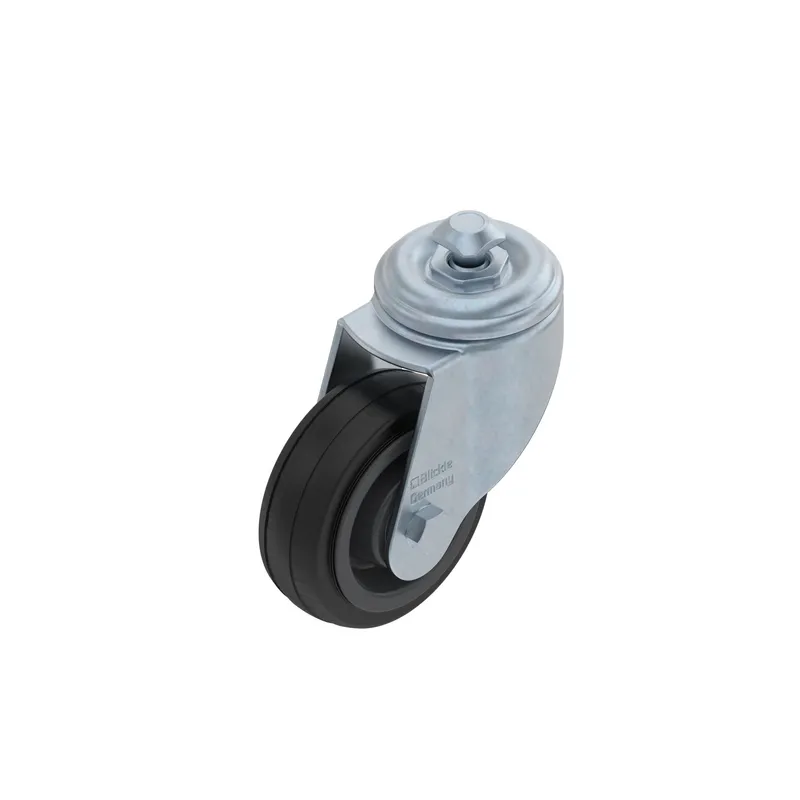

CASTER WHEEL D80 ESD VPA

Name: CASTER WHEEL D80 ESD VPA
Brand: Bosch Rexroth
SKU: 3842547835

MPN: 3842547835 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Roller, solid rubber
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842547835 be shipped?

3842547835 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842547835 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842547835 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842547835, subject to availability and destination.

LR, solid rubber, F600 Rubber running surface made of solid rubber with good deformation elasticity. No permanent flattening of the wheel due to it traveling over edges or not being moved for long periods Suitable for ESD-sensitive areas. Conductive material version in accordance with DIN EN 61340-5-1; conduction resistance ≤ 10<sup>6</sup> Ω Versatile range of uses Wheels with excellent running properties Mounting of the roller in the profile slot or central hole (accessories required) Profile finishing: thread cutting M12 in the case of assembly in central hole

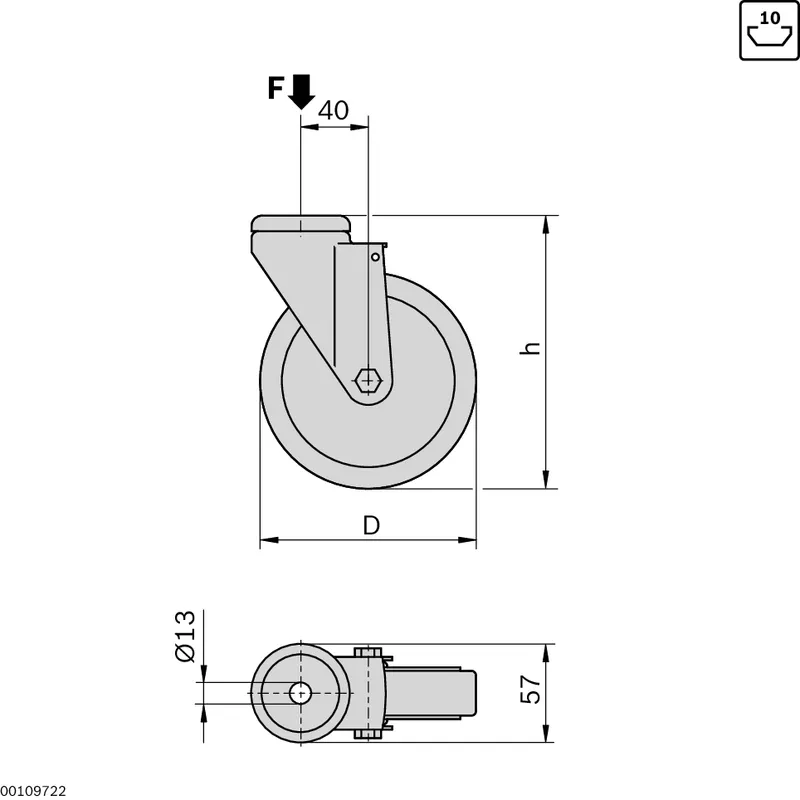

Specifications

Profile slot	10
ESD	Yes
Diameter D [mm]	80.0
Dimension [h] [mm]	108.0
Packaging unit	1
Total height [mm]	108.0
Conduction resistance [RA]	≤ 10⁶ Ω
Force F [N]	600.0
Material	Solid rubber
Fastening material	1x hexagon nut DIN985 M12; 1x square screw M12x30
Required accessories	Bearing ring if cover cap with hole is used; Screw M12x40 (ISO 4762) for fastening to the profile core (↻ 35 Nm)
Weight [kg]	0.54
