HINGE AL 20/30
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Hinge |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842544526 be shipped?
3842544526 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842544526 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842544526 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842544526, subject to availability and destination.

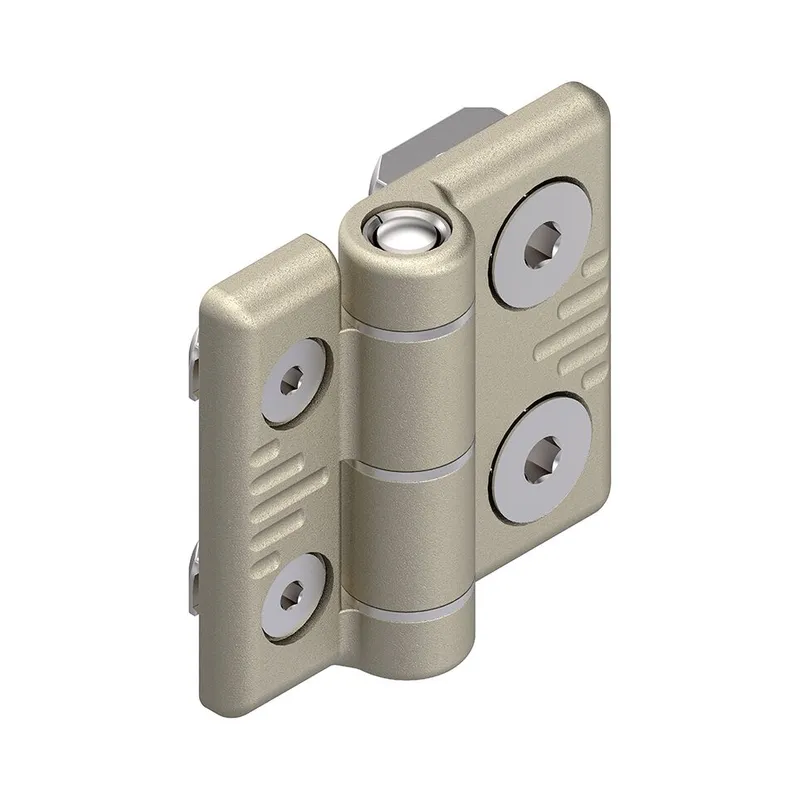

Hinge, aluminum P1=20 P2=30 Installation in slot Assembly possible on solid surface elements High-quality version Conductive version Suitable for use under clean room conditions thanks to abrasion-resistant guide bushings
Specifications
Specifications

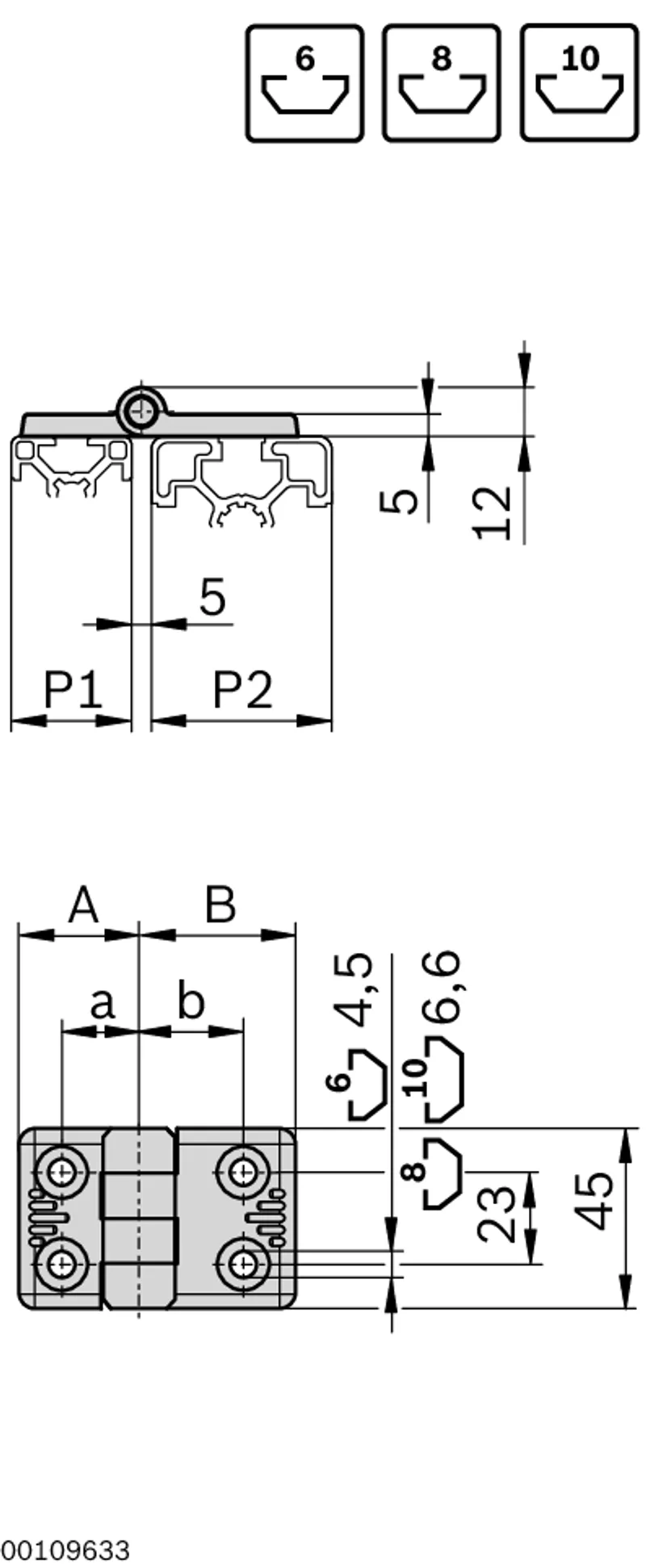

| Profile slot | 6; 8 |
| ESD | Yes |
| Hinge type | Aluminum |
| Packaging unit | 2 |
| Dimension A [mm] [mm] | 20 |
| Force [Fmax] [N] | 300.0 |
| Dimension B [mm] [mm] | 28 |
| Dimension b [mm] | 17.5 |
| Profile P1 [mm] | 20 |
| Profile P2 [mm] | 30 |
| Scope of delivery | Incl. fastening material |
| Material information | Fastening material: Steel, galvanized; Hinge: Diecast aluminum, nickel-plated |
| Material | Diecast aluminum, nickel-plated |

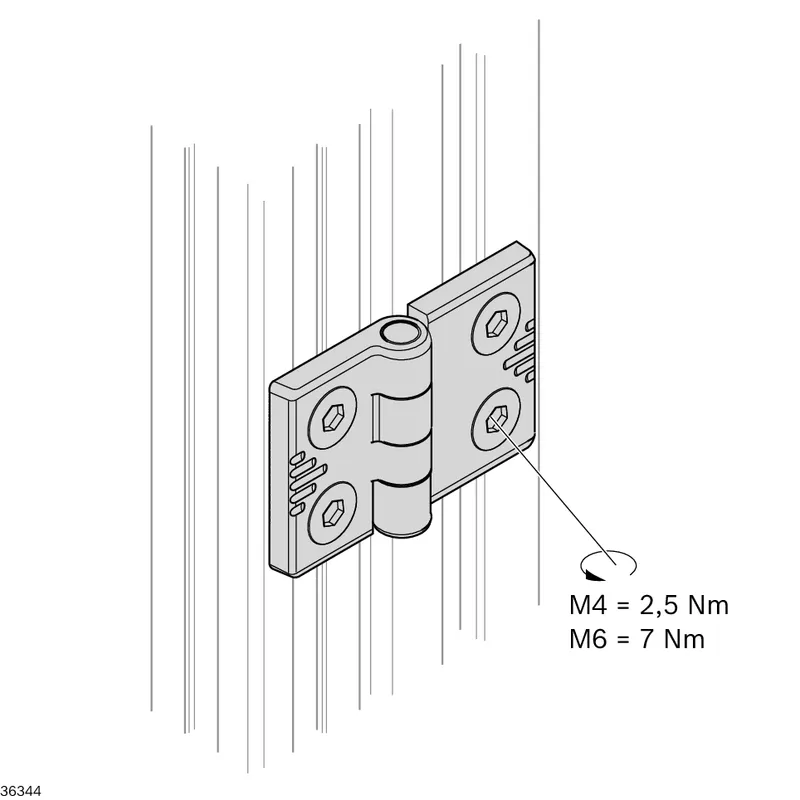

| Fastening material | 2x T-nut groove 6 M4; 2x T-nut groove 8 M6; 2x countersunk screw DIN7991-M4X8; 2x countersunk screw DIN7991-M6x12 |
| Dimension a [mm] [mm] | 12.5 |
| Weight [kg] | 0.07 |
