HINGE AL 45/30 LIFTOFF, R

Name: HINGE AL 45/30 LIFTOFF, R
Brand: Bosch Rexroth
SKU: 3842543330

MPN: 3842543330 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Hinge
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842543330 be shipped?

3842543330 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842543330 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842543330 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842543330, subject to availability and destination.

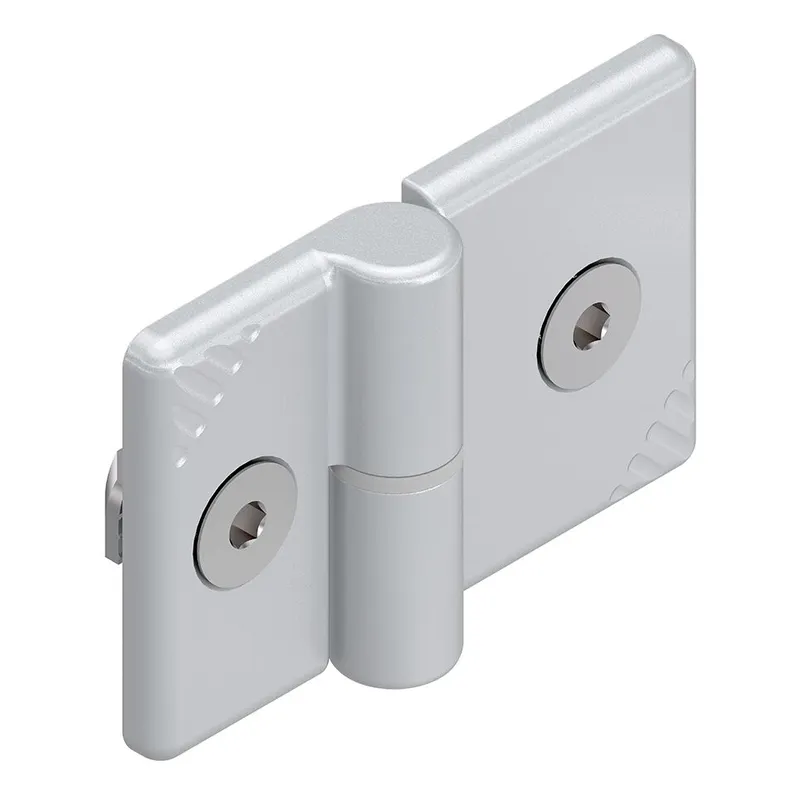

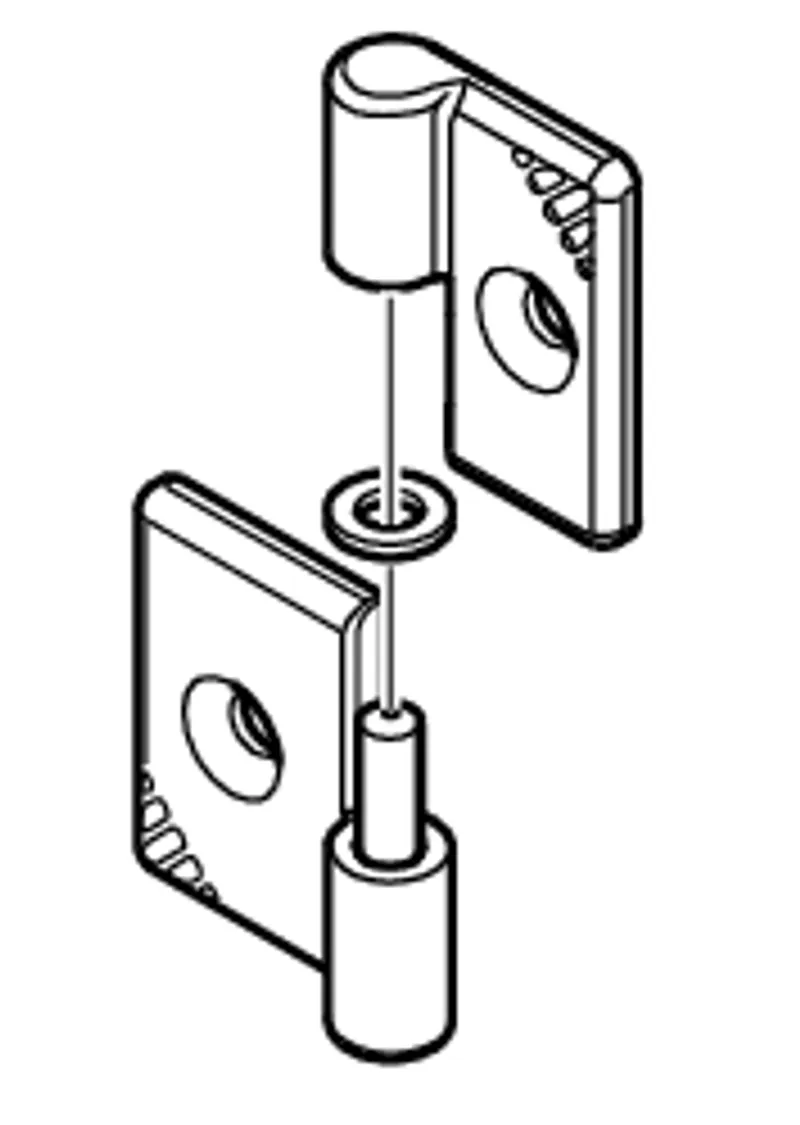

Hinge, LIFTOFF right P1=30 P2=45 Compact, removable hinge for doors which open to the right or left Version <i>designLINE </i>with special silver paint (RAL 9006) for an especially high-quality design Centering lugs as an assembly aid and anti-torsion element

Specifications

Profile slot	10; 8
ESD	Yes
Hinge type	detachable
designLINE	Yes
Packaging unit	2

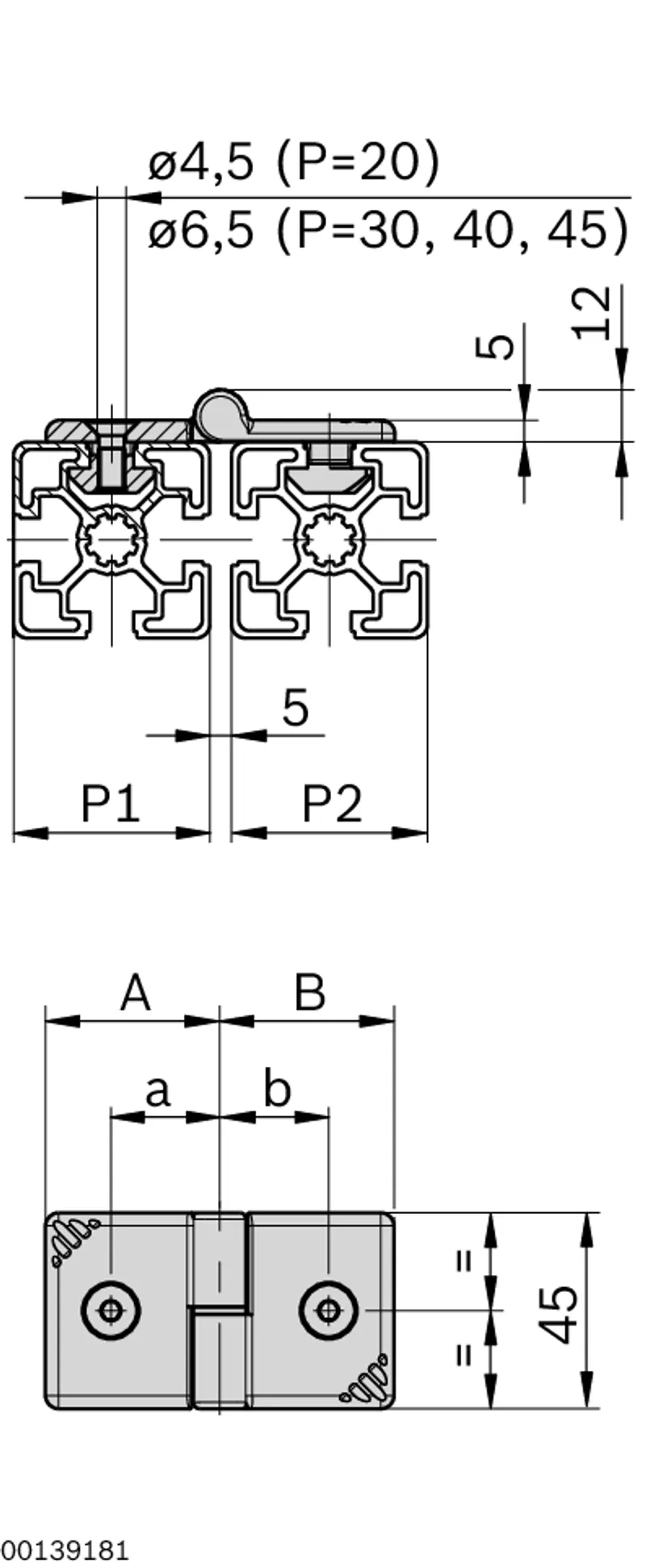

Dimension A [mm] [mm]	28
Force [Fmax] [N]	300.0
Dimension B [mm] [mm]	40
Dimension b [mm]	25.0
Profile P1 [mm]	30
Profile P2 [mm]	45
Scope of delivery	Incl. fastening material
Material information	Fastening material: Steel, galvanized; Grooved pin: Steel, galvanized; Hinge: Diecast aluminum, painted; Washer: PA
Material	Diecast aluminum

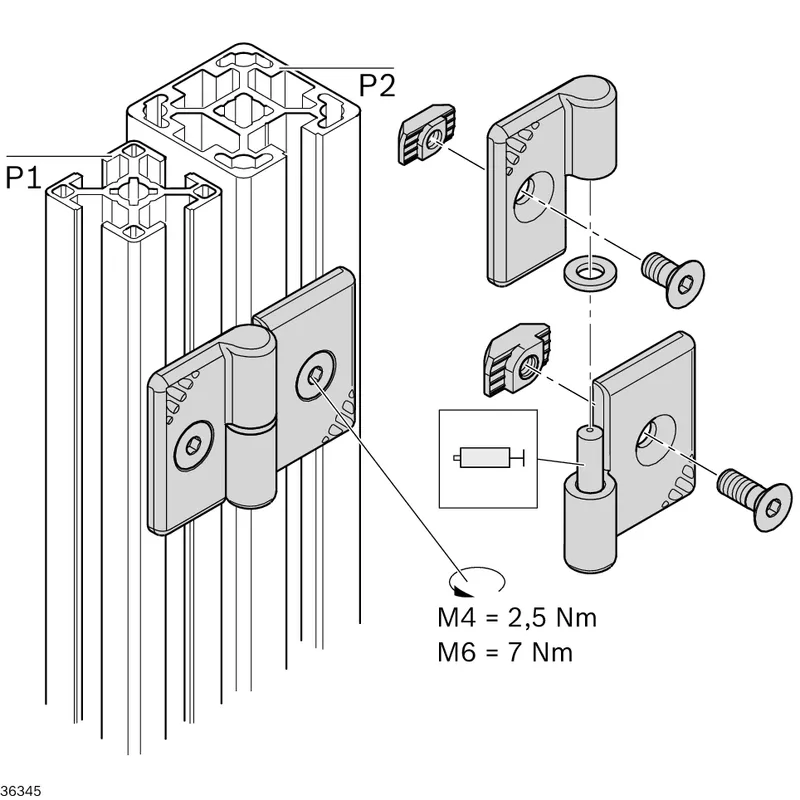

Fastening material	1x T-nut groove 10 M6; 1x T-nut groove 8 M6; 1x countersunk screw DIN7991-M6x12; 1x countersunk screw DIN7991-M6x16; 1x washer DIN125-A6.4
Dimension a [mm] [mm]	17.5
Weight [kg]	0.07
