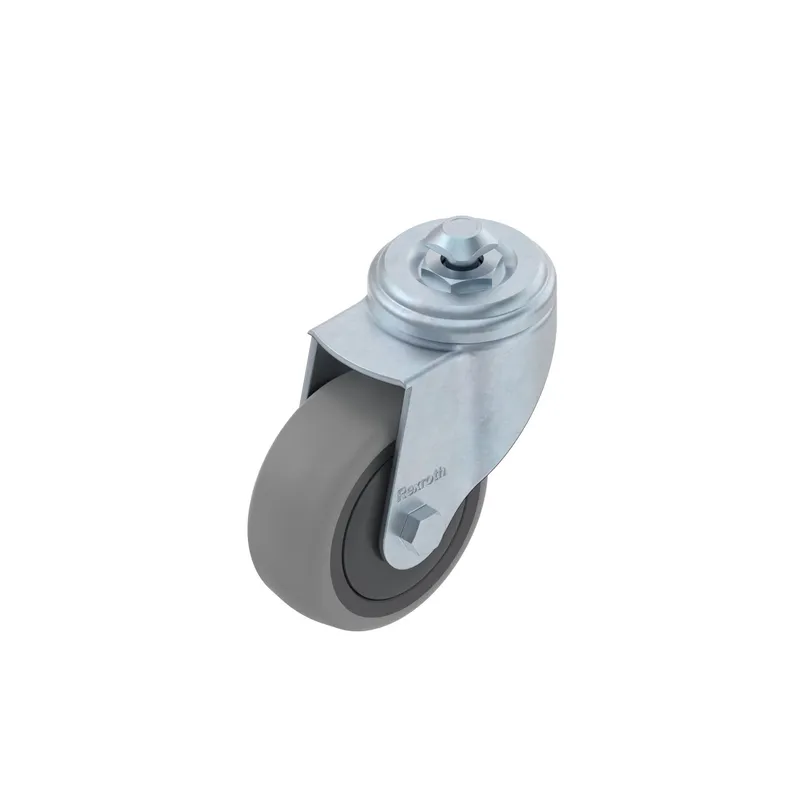

CASTER WHEEL D80 ESD

Name: CASTER WHEEL D80 ESD
Brand: Bosch Rexroth
SKU: 3842541238

MPN: 3842541238 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Roller, gentle on floors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842541238 be shipped?

3842541238 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842541238 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842541238 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842541238, subject to availability and destination.

LR, rubber, F900 ESD Especially gentle on floors Suitable for ESD-sensitive areas. Conductive material version in accordance with DIN EN 61340-5-1; conduction resistance ≤ 10<sup>6</sup> Ω Versatile range of uses Wheels with excellent running properties Mounting of the roller in the profile slot or central hole (accessories required) Profile finishing: thread cutting M12 in the case of assembly in central hole

Specifications

Profile slot	10
ESD	Yes

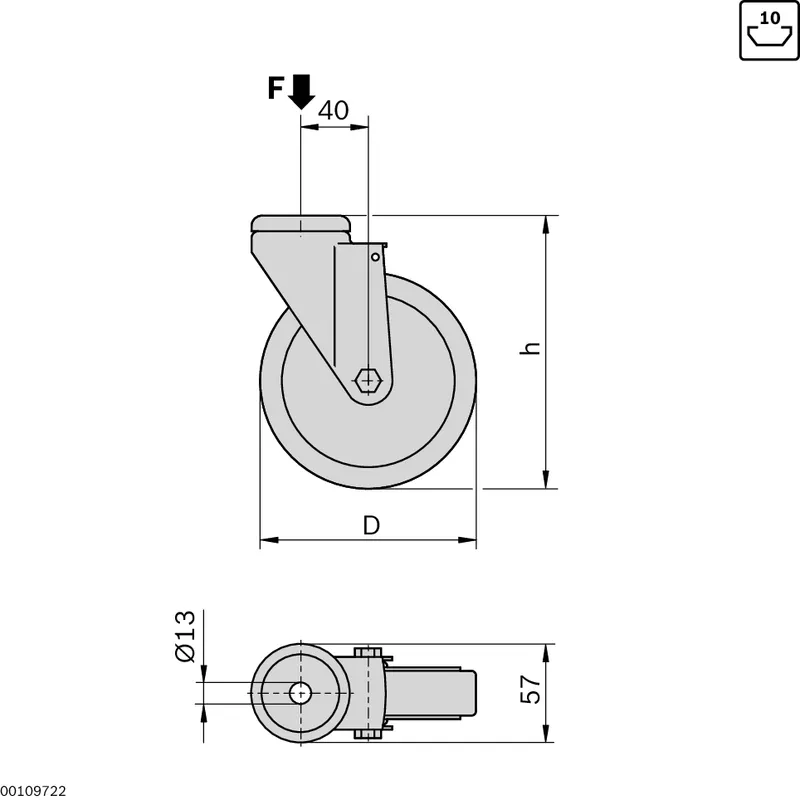

Diameter D [mm]	80.0
Dimension [h] [mm]	108.0
Packaging unit	1
Total height [mm]	108.0
Conduction resistance [RA]	≤ 10⁶ Ω
Force F [N]	900.0
Material	Thermoplastic rubber
Fastening material	1x hexagon nut DIN985 M12; 1x square screw M12x30

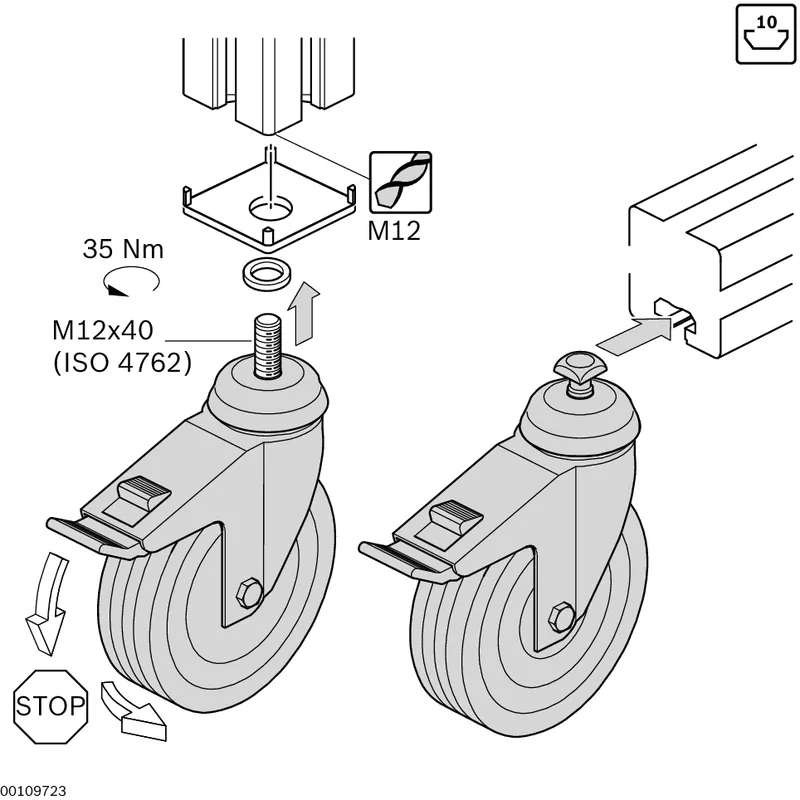

Required accessories	Bearing ring if cover cap with hole is used; Screw M12x40 (ISO 4762) for fastening to the profile core (↻ 35 Nm)
Weight [kg]	0.54
